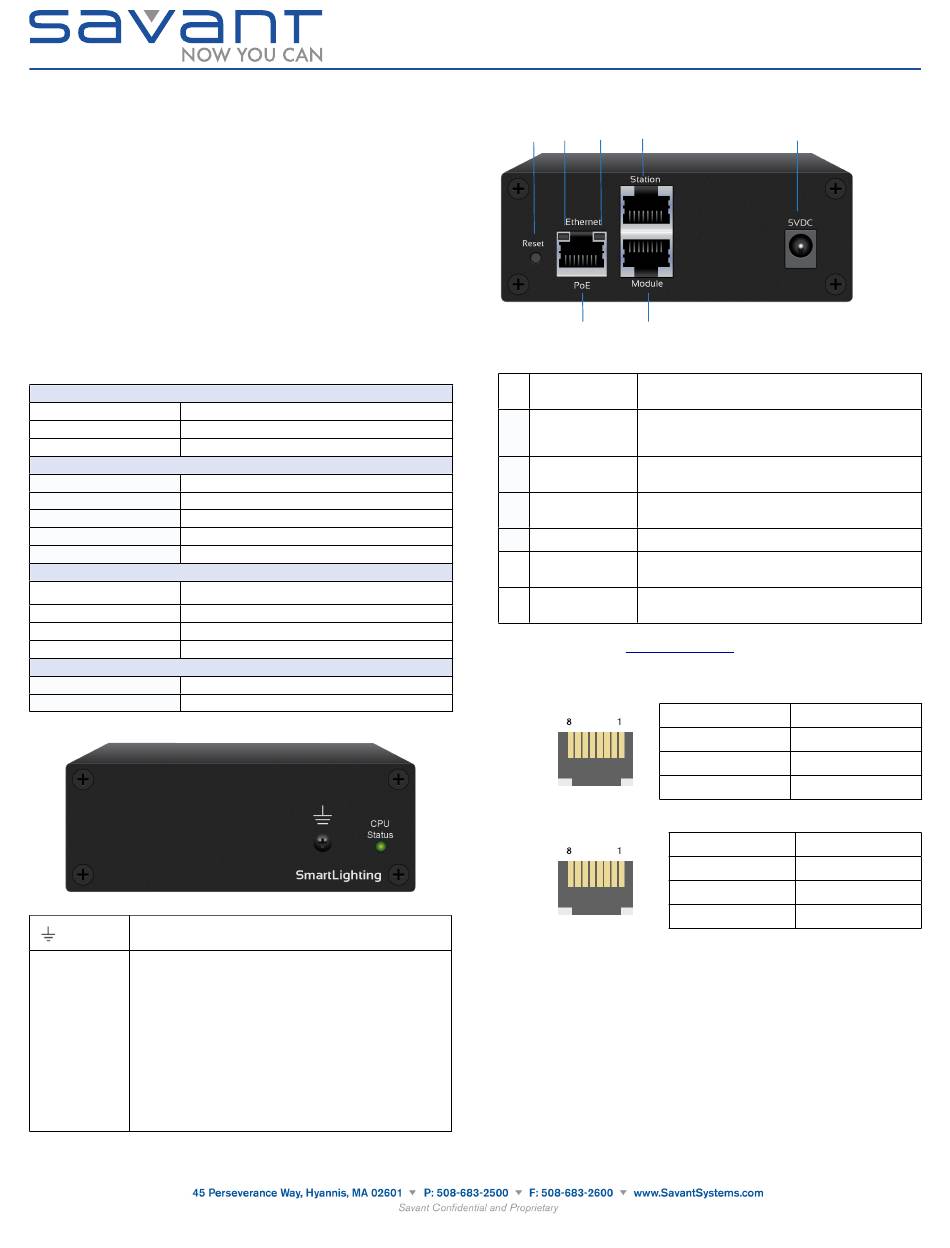

Savant SmartLighting 2 Quick Reference Manual

The Savant ® SmartLighting 2 controller with PoE (SSL-P002) Quick Reference Guide provides
all the steps necessary to operate the SSL-P002. The SSL-P002 supports up to 40 keypads
through the SKL-4000 and 12 keypads through the SKL-1000. The SSL-P002 supports Power
over Ethernet (PoE) using the PoE IEEE 802.3af standard.
Box Contents
(1) SSL-P002
(1) Installation Kit (075-0134-xx)
(8) Screws #6 x 1/4 Phillips (039-0143-xx)
(2) Side mount brackets (071-0625-xx)
(1) Quick Reference Guide (this document)
Required System Component
Savant Keypad Link:
• SKL-1000
• SKL-4000
Savant Modules
Savant Keypads
Station Bus Cabling
• 100 ft/30.48 meters (CBL-4100)
• 250 ft/76.20 meters (CBL-4250)
• 500 ft/152.40 meters (CBL-4500)
• 1000 ft/304.8 meters (CBL-41000)
Optional Accessories
(1) Power Supply 5V 12W 2.5A with 4.0mm connector (PWR-5025-xx)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Maximum BTUs 10 BTU/hour
Dimensions and Weight Dimensions and Weight
Height 1.59 in/4.04 cm
Width 4.32 in/10.96 cm
Depth 6.50 in/16.51 cm
Weight 3.00lb/1.36kg
Rack Space 1U
Power Power
RJ-45 10/100/1000 Base-T, Power over Ethernet using the
PoE
PoE IEEE 802.3af standard
Nominal Power 3 watts
Maximum Power 5 watts
Optional Power Supply 5V DC | 120 VAC 60 Hz | 240 VAC 50 Hz
Compliance Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
Front View of SSL-P002
Ground Connector - used to connect to a suitable ground reference
when using Power over Ethernet.
GREEN indicates the system is operating normally.
GREEN flashing indicates the embedded system is ready (running
with DHCP IP address), but the Host has not established
communications with the embedded system.
OFF indicates the embedded processor is resetting or is booting the
embedded firmware.
RED indicates the Host has determined the firmware needs to be
CPU Status LED updated, but a problem occurred during the process that will initiate a
reset.
RED flashing indicates the embedded firmware is running, but has not
received a DHCP IP Address.
AMBER indicates the Host is currently updating the embedded
firmware.
AMBER flashing indicates the embedded system has a valid link-local
IP Address and is waiting to connect to the Host.
!
Savant SmartLighting 2
(SSL-P002)
Quick Reference Guide

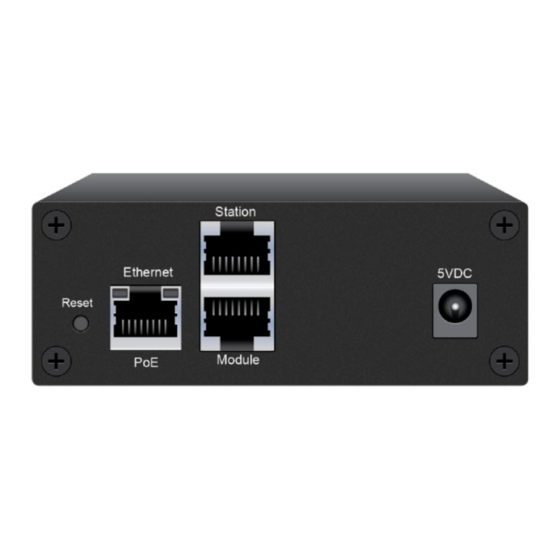

Rear View of SSL-P002
1
1 Reset Button
Ethernet
2
Link/Activity LED
3 Ethernet Speed LED
4 Station
5 5VDC
6 Module
7 Ethernet/PoE
NOTE: The SSL-P002 Station port defaults to RS-422 but is configurable to RS-232 by a Savant
dealer. For more details, see
RS-232 Pinouts
RS-422/RS-485 Pinouts
3 4
2
6
7
Resets to factory default DHCP mode.
Press and hold the rest button for 5+ seconds.
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established
Green indicates an Ethernet speed of 100 Mb.
Off indicates an Ethernet speed of 10 Mb.
Defaults to RS-422 for communication with SKL-1000 or the
SKL-4000.
Provides optional 5V DC input power
RJ-45 port used to transmit and receive serial binary data
transmission to the bus. Defaults to RS-422 and used to
communicate to lighting modules in the Module Enclosures.
RJ-45 10/100/1000 Base-T, auto negotiating port.
Supports Power over Ethernet using PoE IEEE 802.3af
standard.
Changing the Serial Port.
1 — Not Used
2 — Not Used
3 — Not Used
4 — GND
1 — RS+
2 — RS-
3 — TX+
4 — GND
009-0668-00
SSL-P002-01
5
5 — RXD
6 — TXD
7 — CTS
8 — RTS
5 — Not Used
6 — TX-
7 — Not Used
8 — Not Used
!
1 of 2
