SSL-W002 Wireless SmartLighting Controller
Quick Reference Guide
The Savant® SmartLighting 2 controller with Wi-Fi (SSL-W002)
Quick Reference Guide provides all the steps required to install,
wire, and provision the SSL-W002 onto the local network. After
completing those steps, the SSL-W002 can then be configured in
LiteWare® and eventually added to the Savant Control System.
IMPORTANT! Using this product in a manner that is not consistent
with this document will void your warranty
Box Contents
(1) SSL-W002 SmartLighting Controller
(1) Universal Power Supply - 120/240VAC to 5V DC/2.5 Amp
(2) Mounting Brackets
(8) #6 x .250 inch self tapping screws
(1) Cable Tie - 4 inch
(1) 2.4 GHz Antenna with reverse SMA connector
Optional Accessories
Smart Connect (SCA-CONF-xx, SCA-CONFL-xx)
Smart Connect Micro USB to RJ45 Adapter (SCA-ADPT-xx)
RJ-45 to DB-9 Adapters. (See the RS-232 Conversion to DB-9
and RS-422/485 pinout App Note on the Savant Customer
Community)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Maximum BTUs 10 BTUs/hour
Dimensional Dimensional
Height 1.59 in (4.04 cm) / Shipping 4.0 in (10.16 cm)
Width 4.32 in (10.96 cm) / Shipping 20.5 in (52.07 cm)
Length 6.50 in (16.51 cm) / Shipping 21.5 in (54.61 cm)
Weight 3.00 lb (1.36 kg)
Power Power
Input 120/240V AC to 5V DC / 2.5 Amp Wall Wart
Load Power 1.3 Watts Nominal / 2.0 Watts Maximum
Standards Standards
Wireless 802.11 b/g/n
Security WEP, WPA1™, WPA2™, WPA1 + WPA2™
Wireless Range Up to 200 ft
Frequency 2.4 - 2.5 GhHz
Regulatory Regulatory
Safety and
FCC Part 15 | CE-Mark | C-Tick
Emissions
Contains FCC
Q0Q-WF111
ID:
Contains IC: 5123A-BGTWF111
RoHS Compliant
Minimum Supported Release Minimum Supported Release
LiteWare® 5.2.2
Savant® OS Savant® OS
da Vinci® 5.2.2
SSL-W002 | 009-0999-03 | 150821 SSL-W002 | 009-0999-03 | 150821
Copyright © 2015 Savant Systems, LLC

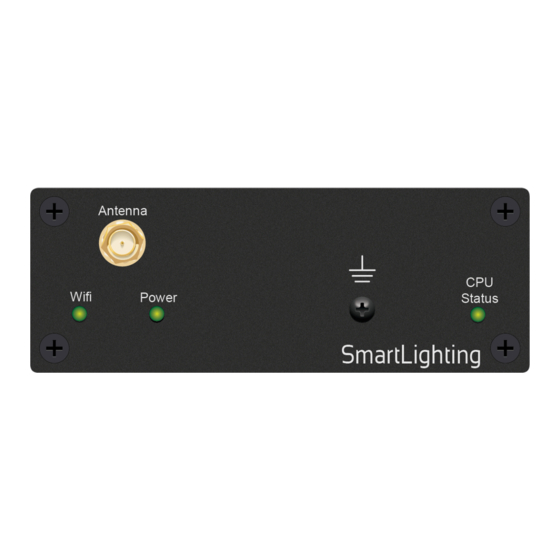

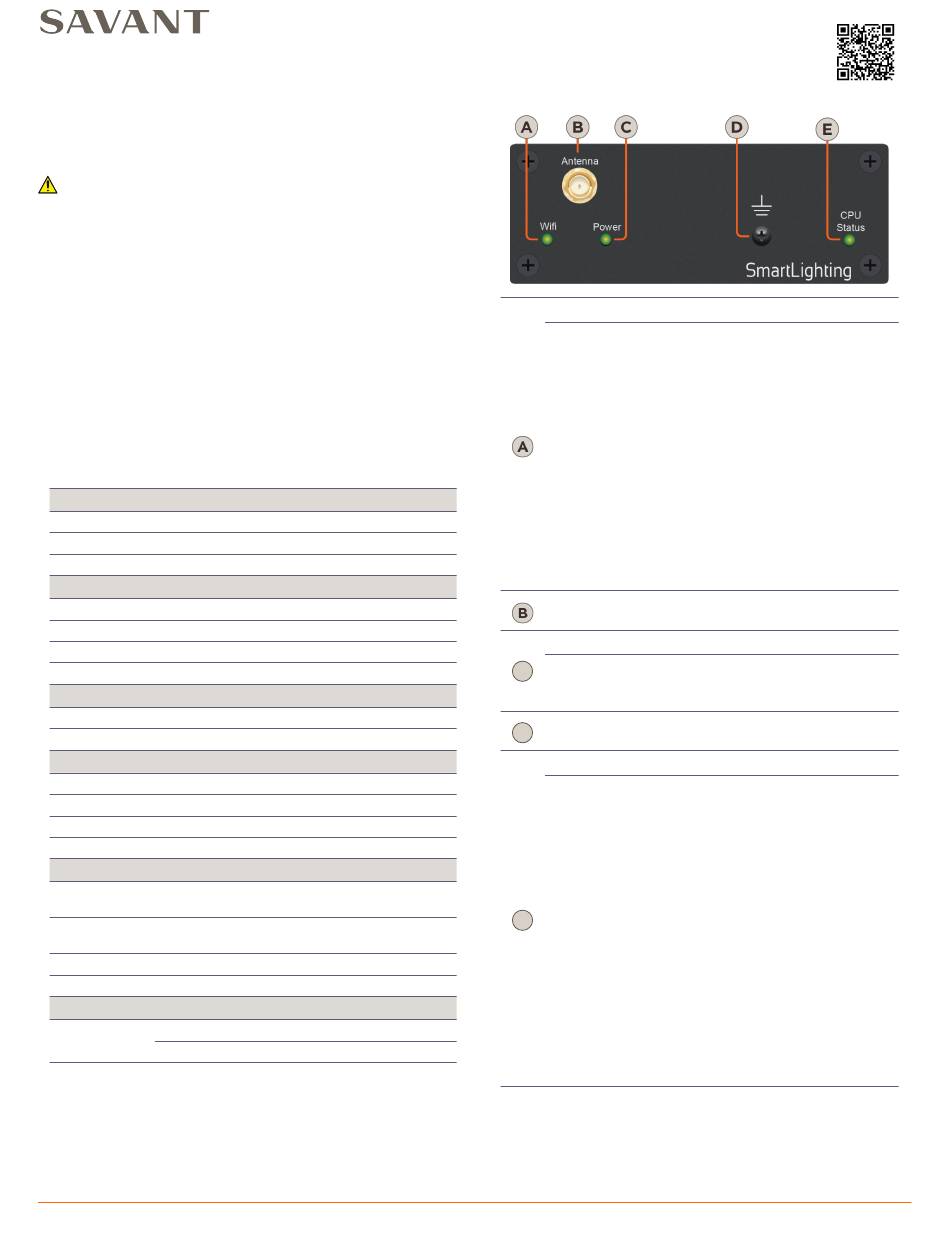

Front View
Wi-Fi® LED - Indicates the state of the Wi-Fi connection.
Green (Flashing) - System is in Access Point (AP) Mode
and ready to be provisioned to a local network. In this
mode, the SSL-W002 will be listed and available in the
list of wireless networks. Refer to
section below.
Green (Solid) - System has been assigned an IP Address
and is communicating with local network.
Off - System is resetting or booting the embedded
firmware.
Red (Flashing) - The network that the SSL-W002 is
configured to communicate with was found and is
available but the network credentials configured in the
SSL-W002 are incorrect for that network.
Red (Solid) - The network that the SSL-W002 is
configured to communicate with cannot be found.
Possibly the local network is down.
Antenna - SMA connection for the antenna supplied with
the SSL-W002. Screw antenna onto SMA connector
Power LED - Power indicator
Green - Power is connected and supplied to the SSL-
C
W002
Off - No power being supplied to the SSL-W002
Gnd Screw - (Optional) Connect to a suitable chassis
D
ground using a # 18 AWG (minimum) solid wire.
CPU Status LED - Indicates the state of the processor.
Green (Flashing) - Has established an IP Address but is
NOT communicating with the Savant Host.
Green (Solid) - Has established an IP Address and is
communicating with the Savant Host. Functioning
normally.
Off - System is either resetting or booting the embedded
firmware
Red (Flashing) - Has booted and embedded firmware is
E
running but has NOT established an IP Address.
Red (Solid) - The Savant Host determined the firmware
requires updating and started the upgrade process.
During the firmware upgrade process, a problem
occurred and the SSL-W002 is going to reboot.
Amber (Solid) - The Host determined the firmware
required updating and initiated the process. The
firmware is currently being updated.
Amber (Flashing) - Has established a Link-local IP
Address and is waiting to connect with the Savant Host.
1 of 3
