ENG

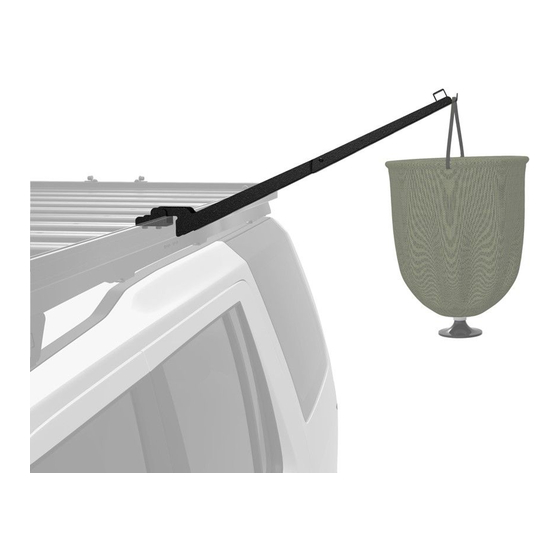

Shower arm mkii
RRAC028
15 min
READ ME !
Thank you for purchasing a Front Runner Shower Arm MKII.
Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE.
IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH.
YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE.
IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,
YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
RRAC028_REV_A00
1
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
Advertisement
Table of Contents
Related Manuals for Front Runner SHOWER ARM MKII
Summary of Contents for Front Runner SHOWER ARM MKII
- Page 1 IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.
- Page 2 IN THE BOX TOOLS NEEDED Shower Arm M8 Nut Cap M8 Nyloc Nut 13MM 13MM M8 x 16 x 1.6 SS Flat Washer Shower Mount M8 x 16 Hex Bolt FIGURE 1.1 RRAC028_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 3 FIT AND SECURE Find a suitable place to mount the shower arm. 13MM Slide two M8 x 16 hex bolts (Item 6) into the T-slots as shown. Place the shower mount (Item 5) over the two M8 x 16 hex bolts with the round bar toward the outer edge of the rack.
- Page 4 Congratulations. You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or Online. RRAC028_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
