Slave Cylinder Installation - Rekluse Core EXP Installation & User Manual

SLAVE CYLINDER
INSTALLATION
Handle with care! During assembly there is a small
ball bearing [#56] installed in the slave piston
[#28.3] with a small amount of grease. When
installing the Rekluse slave cylinder, make sure the
ball does not come loose.
NOTE: If you are installing this product on a KTM
Freeride, please reference the included Slave
Cylinder Appendix sheet for fitment instructions.
15. Stand the bike up and lean it on its kickstand or
place it on a suitable bike stand.

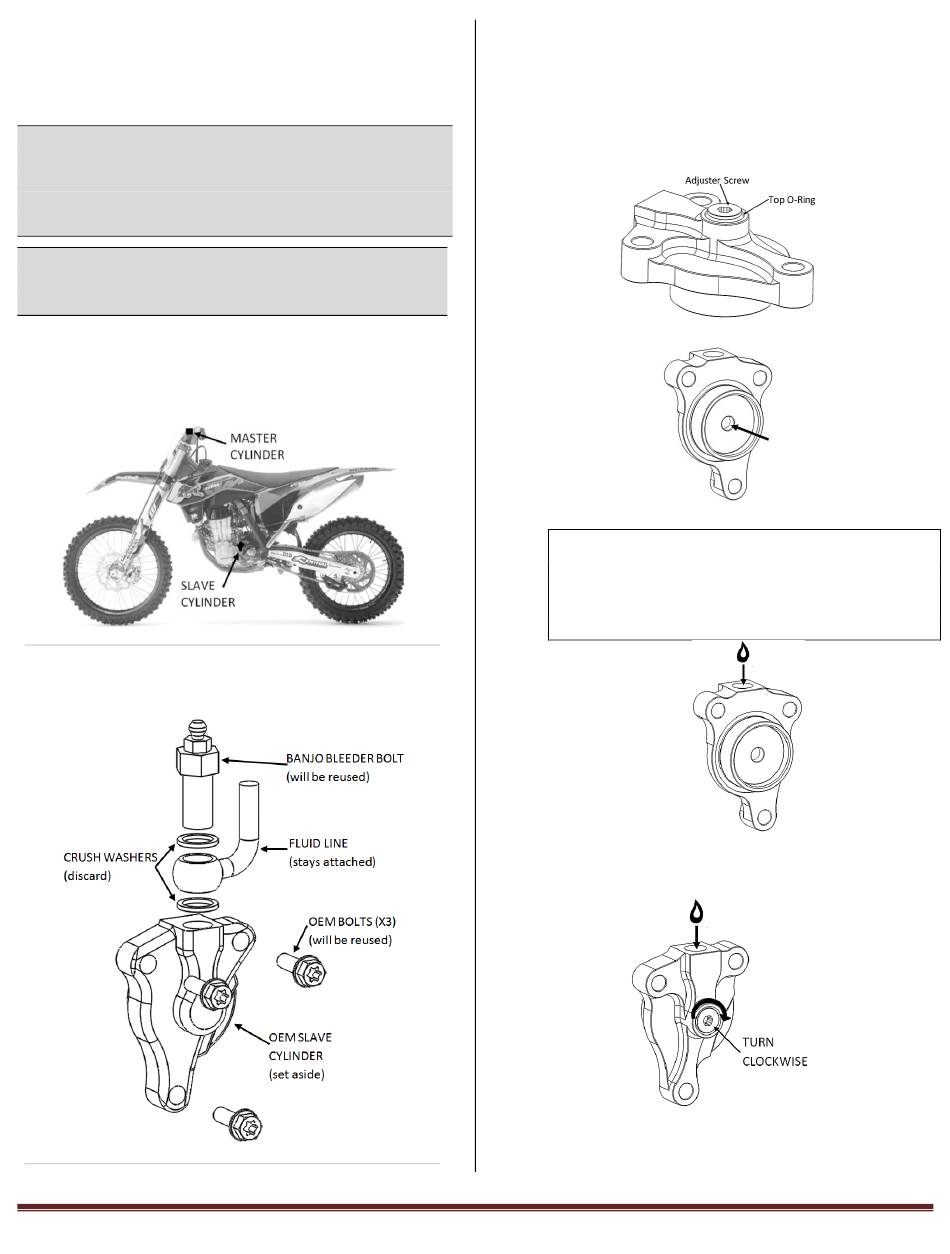

16. Starting at the slave cylinder, remove the OEM
parts named in the following diagram beginning
with the banjo bolt.
Rekluse Core EXP - Hydraulic
17. On a workbench (still away from the engine),
bleed the Rekluse slave cylinder by this
procedure:
a. Use a 4mm Allen key to make the top O-
Ring [#53.1] visible on the adjuster screw
[#28.2].
b. Compress the piston [#28.3] until it bottoms.
c. Pour clutch fluid into the slave cylinder port.
WARNING
Be sure to use the correct clutch fluid! Check the
cap of the clutch master cylinder to determine
which clutch fluid to use. Failure to use the correct
fluid will result in seal damage and/or failure.
d. Turn the adjuster screw clockwise until it
bottoms, keeping the fluid topped off.
Page 7
