BIKE PREP &
DISASSEMBLY

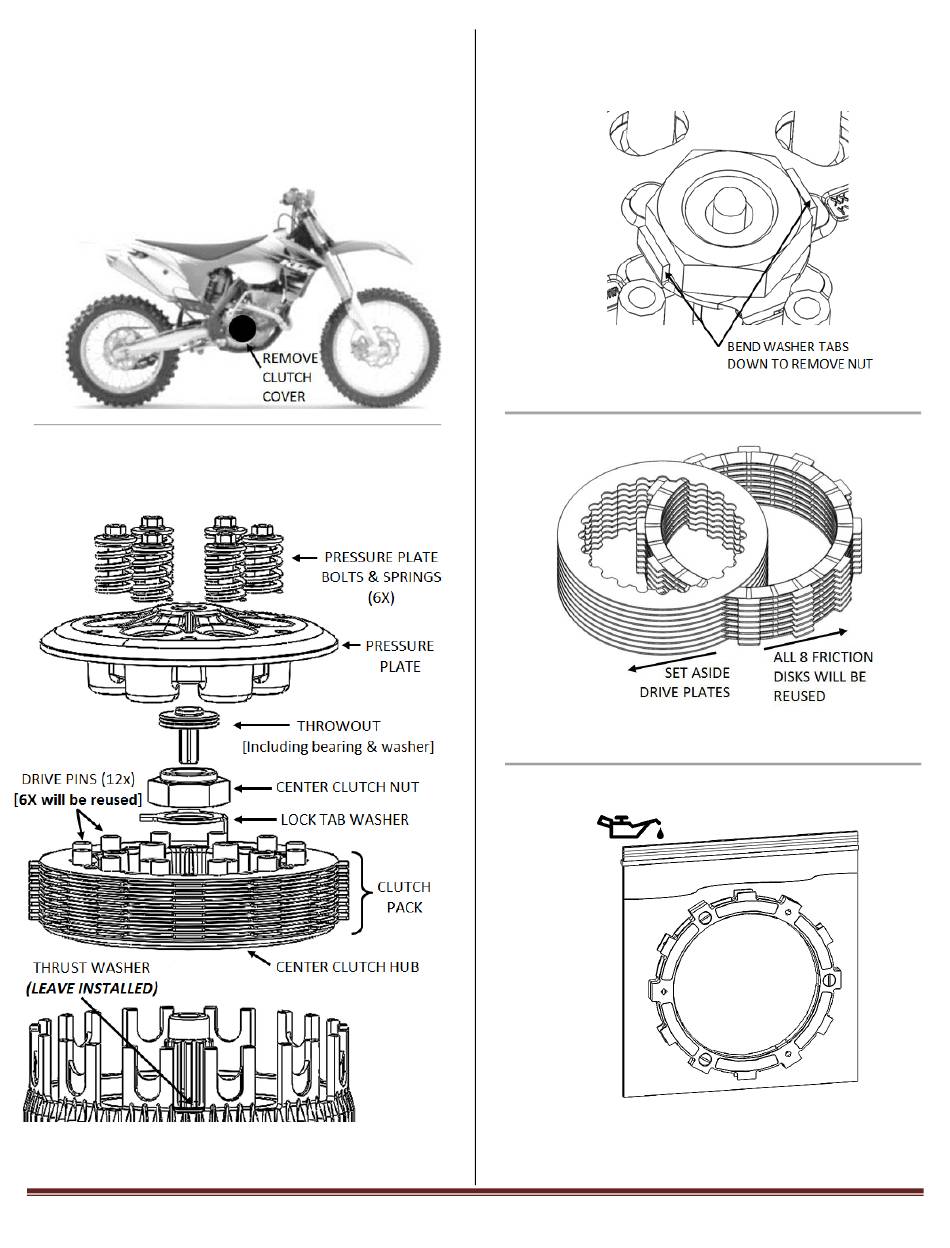

1. Lay the bike on its left side. Catch any fuel that
might drain in a suitable container. Remove the
clutch cover.
2. Remove the OEM clutch parts named in the
following diagram down to the center hub.
Leave the thrust washer installed in the basket.
Rekluse Core EXP - Hydraulic
Tip:
a. Use a hammer and large screw driver to
bend down the tabs of the tab washer.
3. Separate the OEM clutch pack.
Inspect the friction disks for signs of heat or
wear. Replace if they are burnt or worn.
4. Soak the EXP disk in engine oil for 5 minutes.
