Rekluse Core EXP Installation & User Manual page 12

Note: If you are not getting the correct lever
movement, see
Troubleshooting Guide" on the next page.
Hand Method:

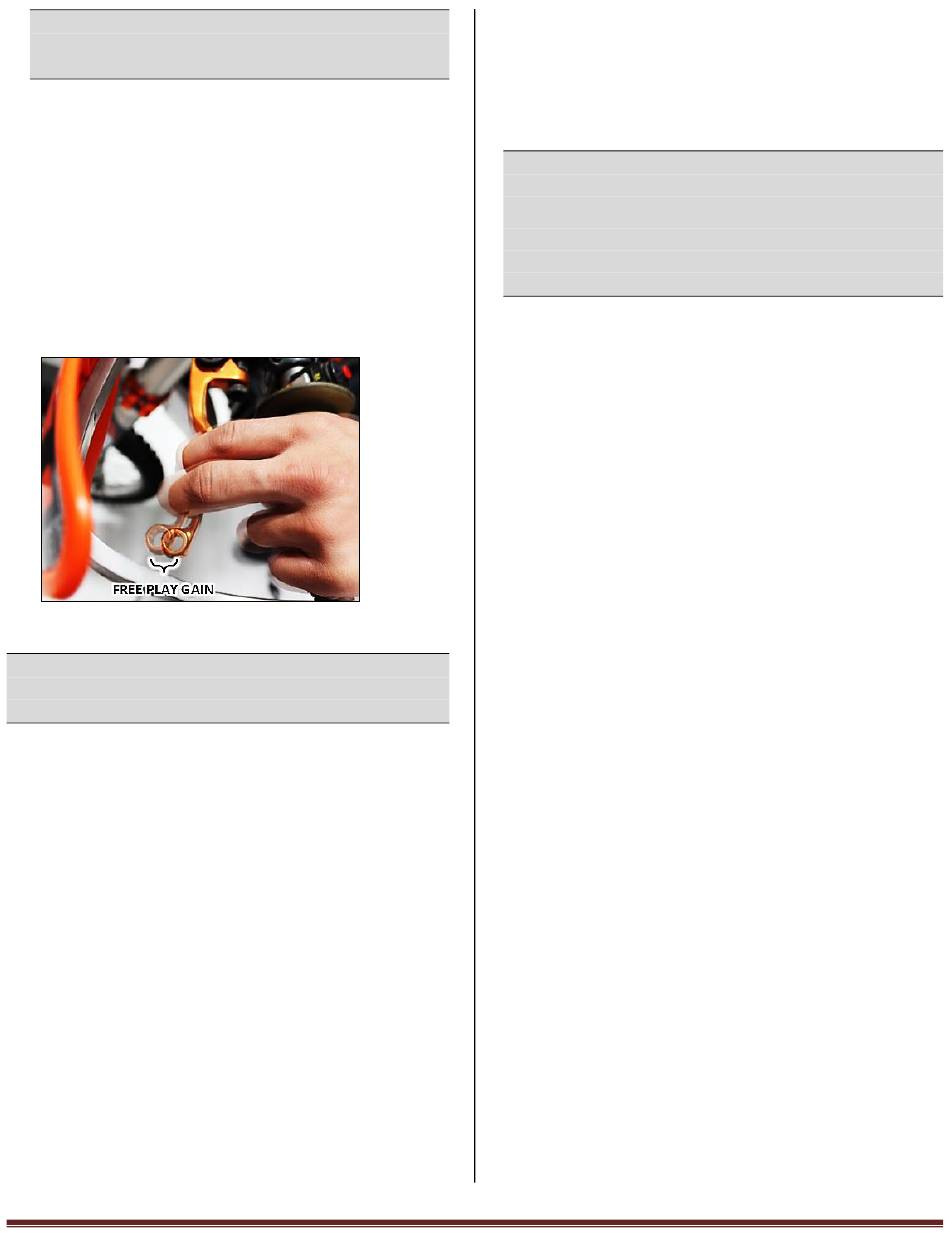

Free play gain should also be checked using
your hand, as you will check it by hand before
every ride. With the bike at idle, apply enough
pressure to the lever to take up the initial
freeplay (slack) shown in the photos on the
previous page. While continuing to apply light
pressure, rev the engine to at least 5,000 RPM.
The clutch lever should move in 1/8" (3mm)
under your finger pressure as you rev the
engine and the auto-clutch engages.
BREAK – IN
Follow these procedures for a new installation and
any time new friction disks or EXP bases or wedges
are installed.
1. Rev cycles: Warm up the bike for 2-3 minutes.
With the bike in neutral and your hand off of the
clutch lever, rev the engine 10 times, being sure
to let it return to idle between each rev cycle.
2. With the engine running, pull in the clutch lever
and click the bike into gear. Slowly release the
clutch lever. The bike should stay in place,
perhaps with a slight amount of forward creep.
3. Now that the bike is idling in first gear, slowly
apply throttle to begin moving. To break in the
clutch components, perform the following roll-on
starts in 1st and 2nd gear without using the
clutch lever: In 1st gear, accelerate moderately
to approximately 5,000 RPMs and come to a
stop—repeat this 5 times. Next, starting in 2nd
gear, accelerate moderately to approximately
5,000 RPMs then come to a stop—repeat this 5
times.
Rekluse Core EXP - Hydraulic
the "Free Play
4. Now that the EXP is broken-in and the clutch is
Gain warm, re-check free play gain at your clutch
lever and adjust if necessary. Your clutch pack
will expand with heat, so final adjustments
should be made when the bike is warm. Now
you are ready to ride!
WARNING: DO NOT RIDE WITHOUT
SUFFICIENT FREE PLAY GAIN!
Checking free play gain is easy and takes less than
a minute to perform.
and longevity, check free play gain when the bike is
warm at the start of every ride.
FREE PLAY GAIN
TROUBLESHOOTING
Each adjustment
increments - one tick mark at a time. After each
adjustment, repeat the rev-cycle until optimal free
play gain is achieved.
Symptom:
- Clutch lever moves in too far (too much free
play gain)
- Clutch has excessive drag
- It is difficult to fully override the clutch with
the lever
Answer: Installed Gap is too small
Solution: Turn the Adjuster Screw inwardly
(clockwise) to increase the Installed Gap.
Symptom:
- Clutch lever does not move enough or does
not move at all (too little free play gain)
- Clutch is slipping
Answer: Installed Gap is too large
Solution: Turn the Adjuster Screw outwardly
(counter-clockwise) to reduce the Installed Gap. It
may be helpful to re-find the starting point.
For optimum performance
should be done in
Page 12
small
