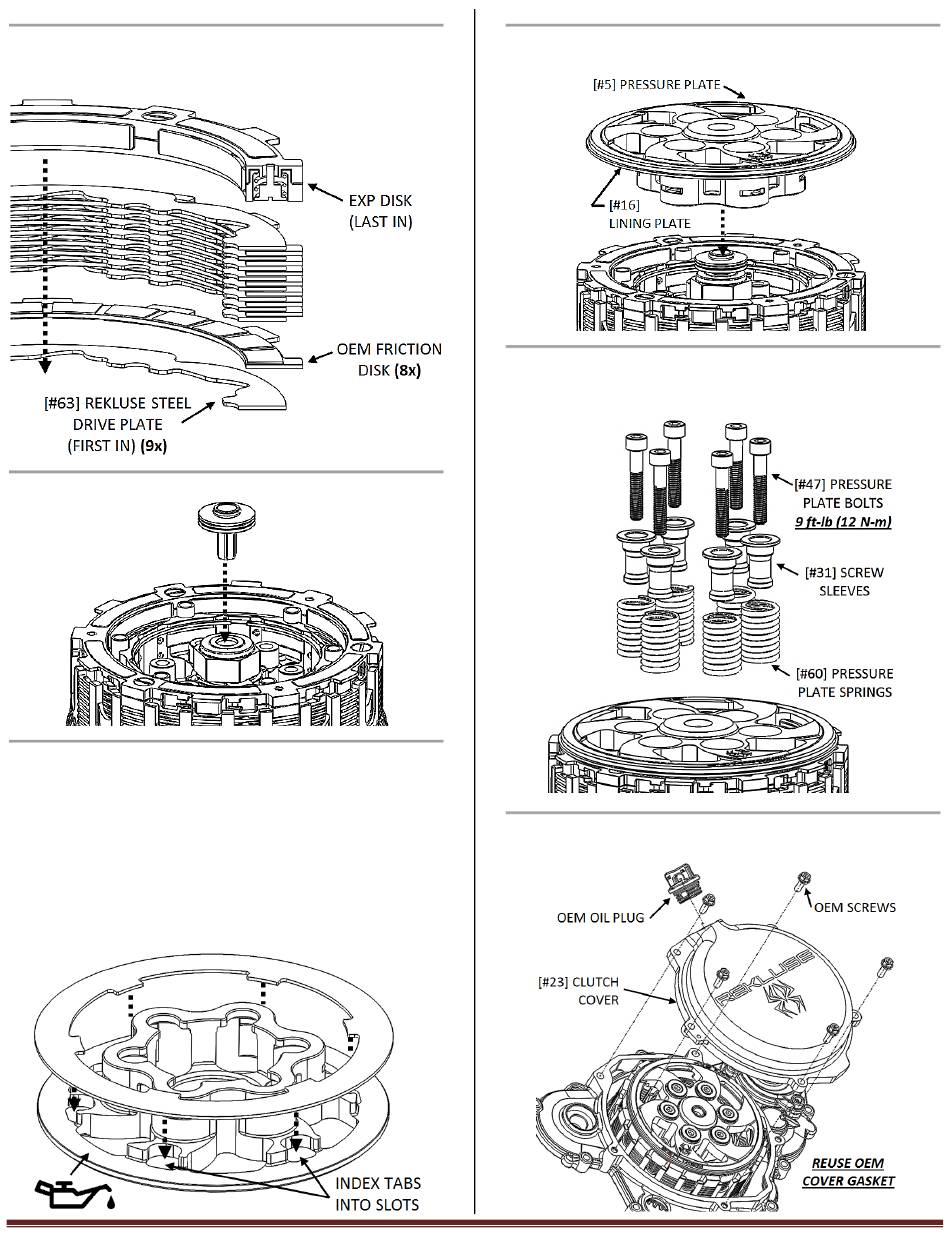

9. Install the rest of the clutch pack, noting the
number and order of plates shown.
10. Reinstall the OEM throwout.
PRESSURE PLATE
INSTALLATION
11. Place the Steel Lining Plate [#16] onto the
Rekluse Pressure Plate [#5]. Adding an oil film
between them will help them stick together.
Rekluse Core EXP - Hydraulic
12. Install this pressure plate subassembly.
13. Install the Rekluse pressure plate springs and
torque the pressure plate bolts.
Do not reuse the OEM springs!
14. Install the Rekluse clutch cover, torqueing the
cover
bolts
to
OEM
specification.
Page 6
