INCLUDED PARTS

Item Item Type
5 Pressure Plate
13 EXP Base *
16 Steel Lining Plate
23 Clutch Cover
27 Center Clutch Hub
31 Screw Sleeve
47 Fastener – M6 Pressure Plate Bolt
51 Fastener - 1/4-Turn Pin *
54 Orange Free Play Gain Rubber Band
60 Pressure Plate Spring
60.X EXP Adjustment Spring *
63 Steel Drive Plate (TEC Plate)
85 Wedge Assembly *
86 Adjustable Slave Cylinder Assembly
88 Pressure Plate Bolt &Spring Assembly
* Denotes parts assembled as part of EXP disk assembly

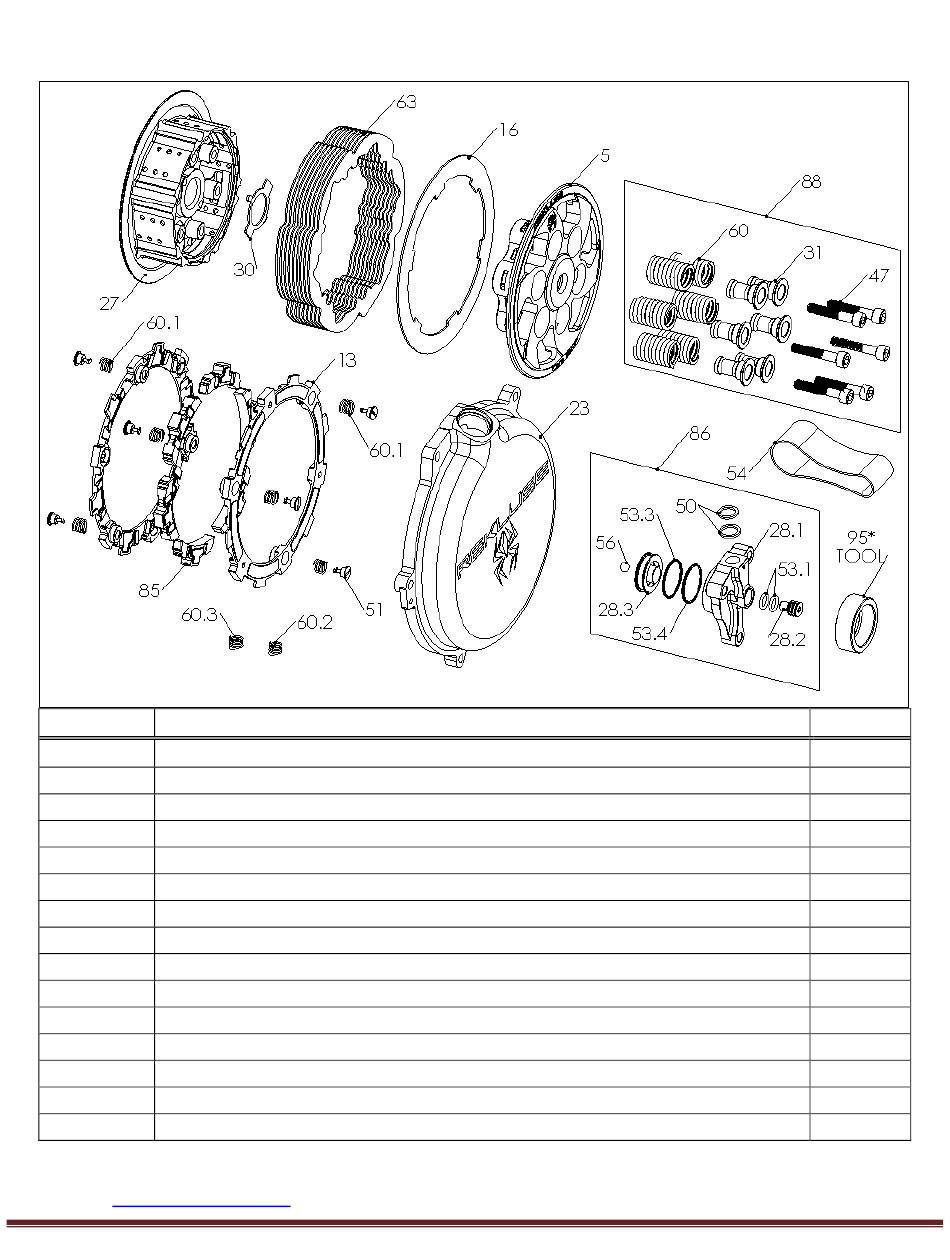

Visit Rekluse.com/support
Rekluse Core EXP - Hydraulic
(extra springs are included, see last page for EXP tuning options)
(bleed syringe included)
for a full parts fiche illustration and part numbers.
