Due to the KTM Freeride's smaller OEM slave cylinder banjo bolt, the included thread insert needs to be
installed into the Rekluse Adjustable Slave Cylinder.

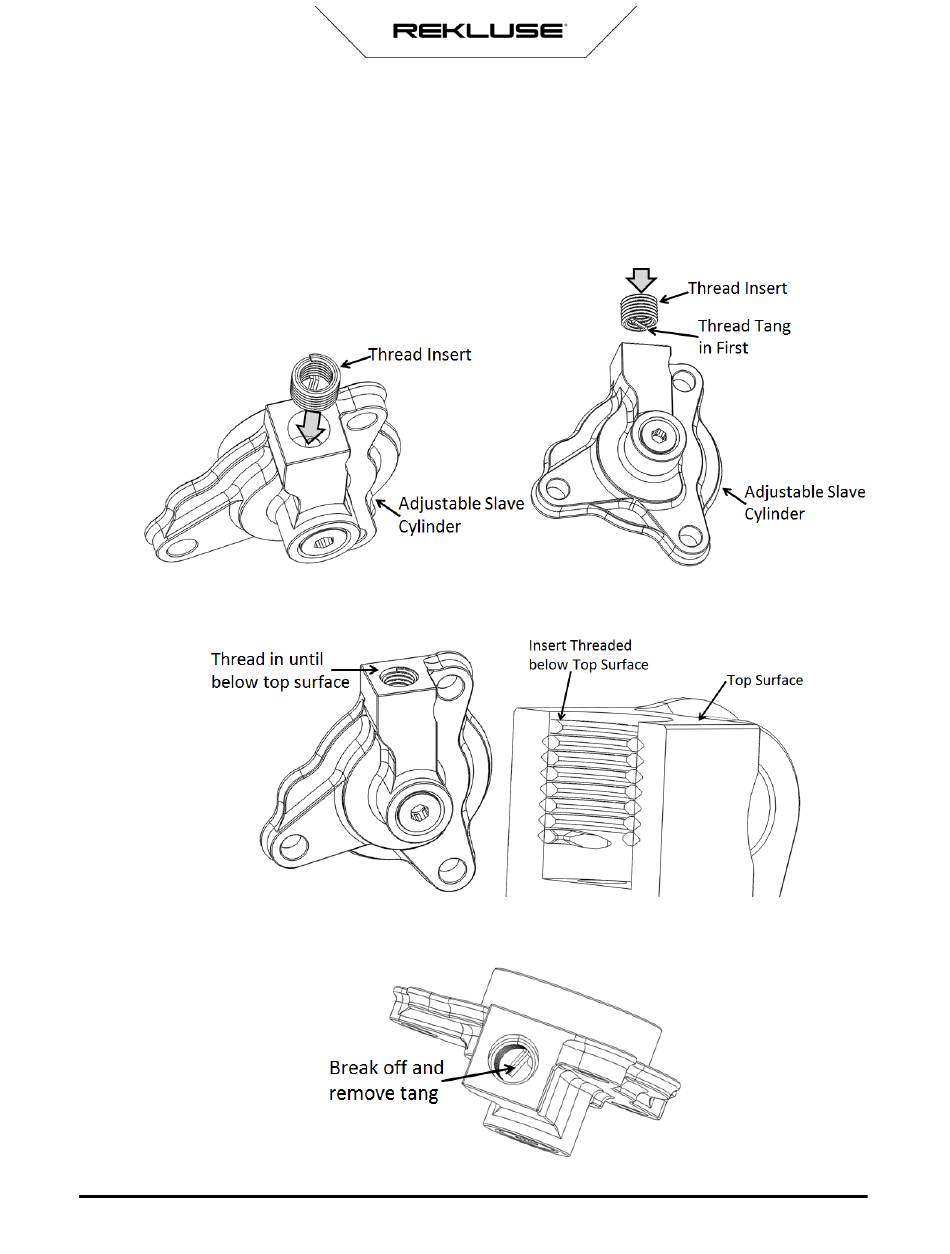

1. Thread the insert into the Rekluse Adjustable Slave Cylinder, using needle-nose pliers, starting
with the thread insert tang.
2. Stop when the thread insert is below the top surface of the fluid port. If the insert is not below
the surface the crush washers will not seal.
3. Using the needle-nose pliers, bend the thread insert tang up and down until it breaks off and
remove it from the adjustable slave cylinder.
195-6135
KTM Freeride ONLY
Slave Cylinder Appendix
