Appendix C Pole Cut-out

Recommended cut-out for the pole is shown below.
DPU-00084
Revision 2.3

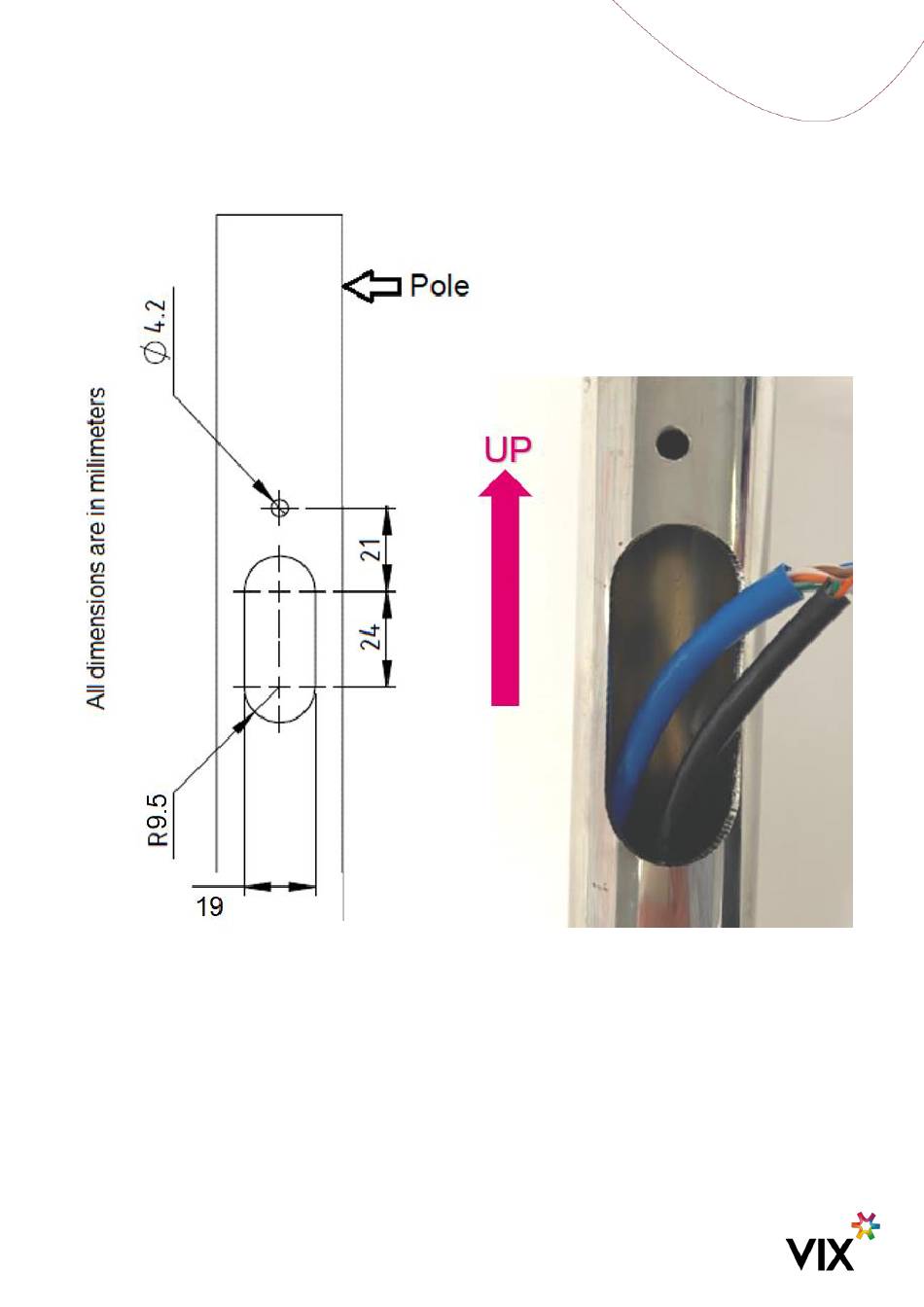

Figure 39: Pole Cut-out

Page 39 of 39
