6.5 Validator Demounting Instructions
Caution:
The unit connectors present a low risk of accidental short circuit or electric shock if the unit is
removed when powered, hence it is recommended the power is turned off prior to disconnection.
1. Unlock the cradle lock by pushing in the key slightly and rotating anti-clockwise or clockwise until the lock
button bounces out.
2. Push the device upwards and then slowly pull forward.
3. Press the locking clips on the connectors and carefully disconnect the cables.
DPU-00084
Revision 2.3

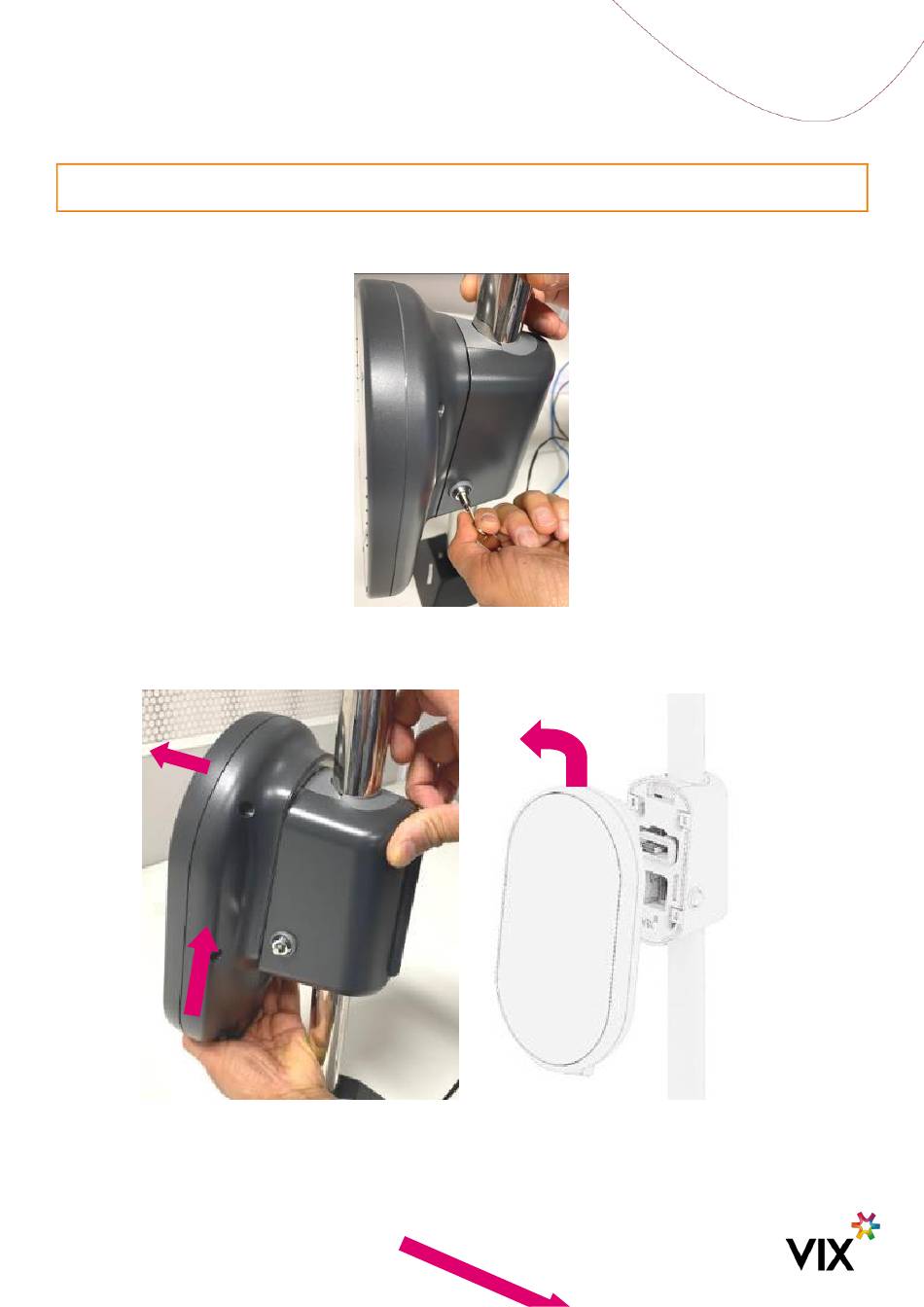

Figure 27: Device Unlocking
Figure 28: Adept Validator Removal
Page 32 of 39
