6.7 Cradle Covering

In the case where the installed cradle is not being used, i.e. no validator is mounted on it, a cradle cover should be
used to provide ingress protection to the cradle and cables.
The cradle cover could be obtained from VIX with the part number being PROD1000-x.

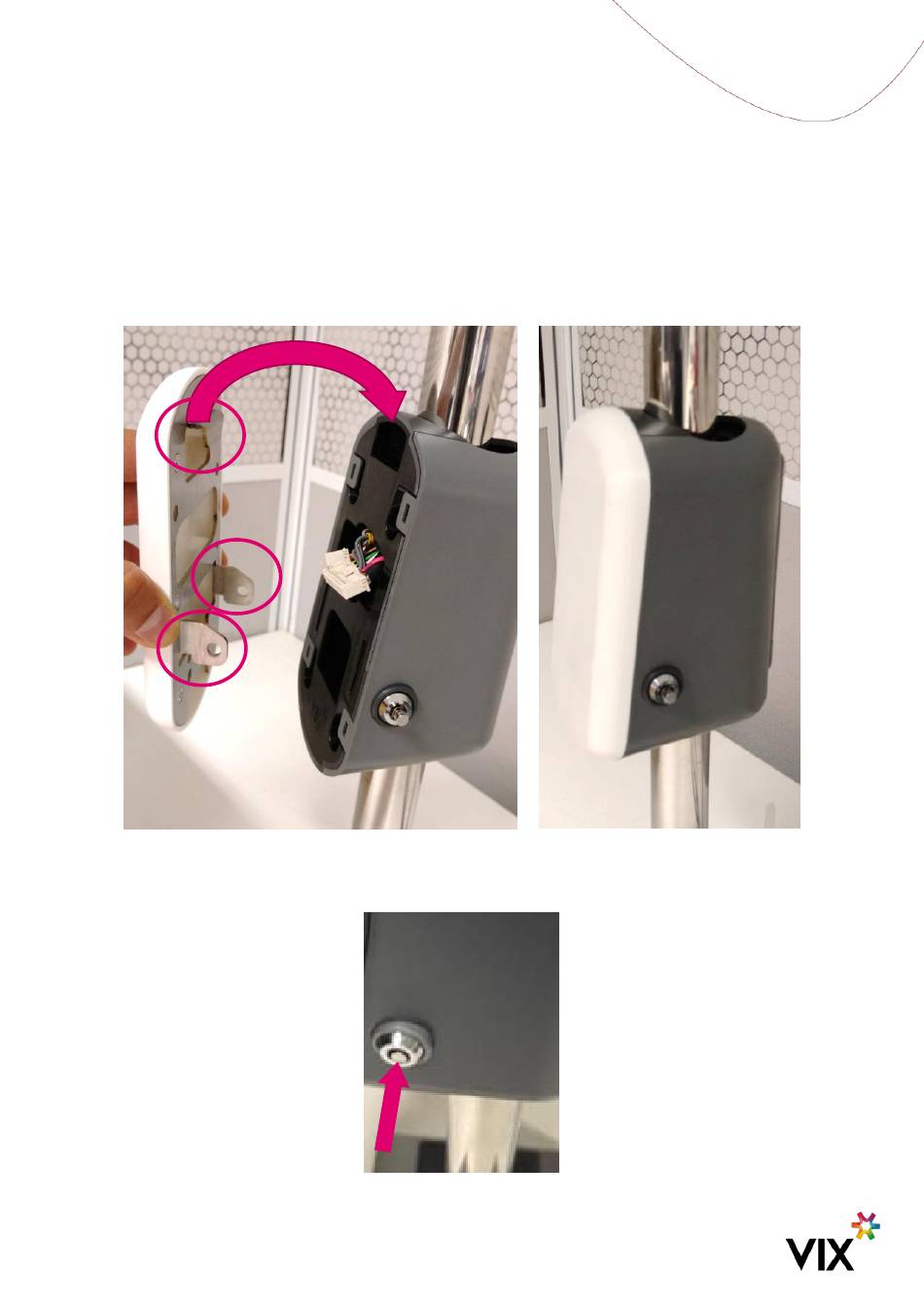

1. Cover the cradle by aligning the three locating plates, pushing forward, then pushing down to clip in as
shown below.
2. Press the lock button to secure the cover in place on the cradle.
DPU-00084
Revision 2.3

Figure 35: Cradle Covering

Figure 36: Cradle Cover Locking
