Installation Overview; System Architecture; Power Supply; Figure 2: Adept Validator Typical System Architecture - Vix Assure Adept Validator Installation Manual

3 Installation Overview

3.1 System Architecture

3.2 Power Supply

Adept Validator can be powered either by Power-Over-Ethernet or by 24V DC power supply.
PARAMETER
Input Supply Voltage
Specified Input Current on power-up (@24V)
Specified Input Current steady state (@24V)
Reverse Voltage Protection
DPU-00084
Revision 2.3

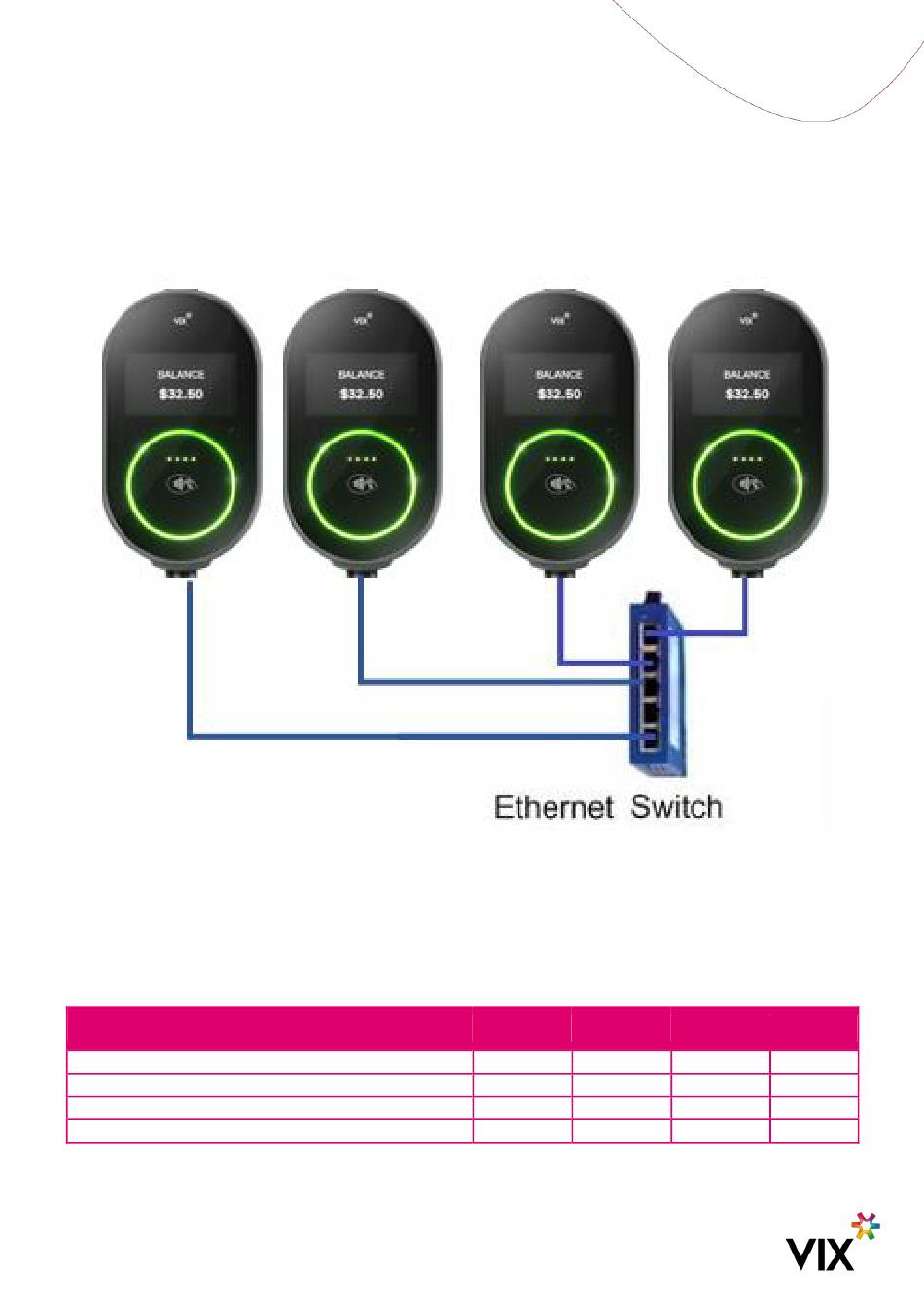

Figure 2: Adept Validator Typical System Architecture

Table 3: Power Supply Specification

Page 12 of 39
MIN. TYP.
9 24
- -
0.25 (6W) 0.35 (8.4W)
- -
MAX. UNIT
36 V
1 A
0.7 (16.8W) A
-100 V
