Figure 19: Correct And Incorrect Position Of Closed Cradle Arms; Figure 20: Adept Validator Cradle Mount Shims - Vix Assure Adept Validator Installation Manual

6. Check the cradle is secure on the pole. If not, undo the arms and insert the supplied small shims at the
indicated location (on both sides), then close the arms and check again.
7. Check the 4 seals are inserted into the correct position on the external cover.
Note: Both the cover and the seals are marked to ensure the correct placement.
DPU-00084
Revision 2.3

Figure 19: Correct and Incorrect Position of Closed Cradle Arms

Figure 20: Adept Validator Cradle Mount Shims

Page 28 of 39

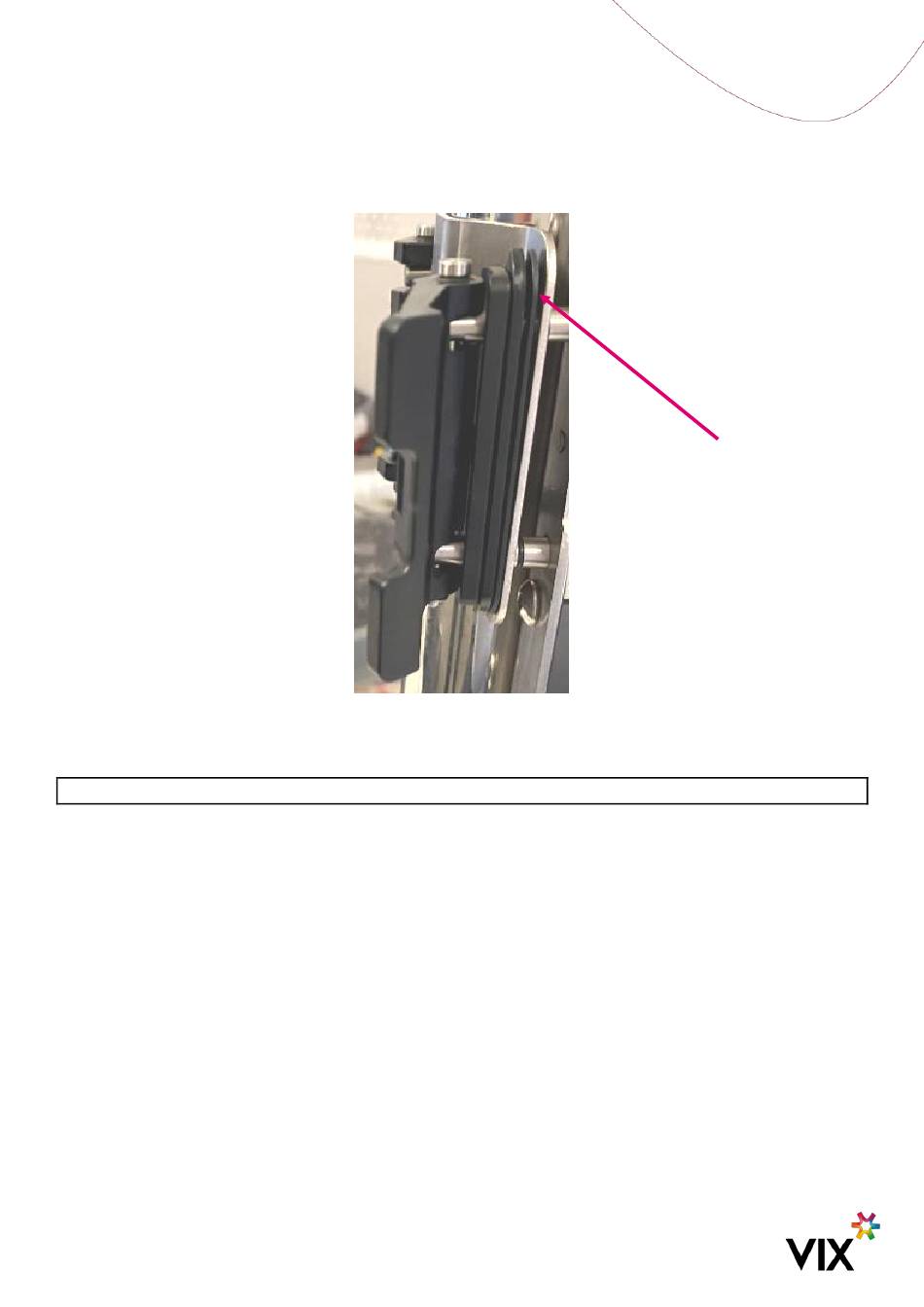

Small shim, colour may vary
