3. Open both cradle mount flaps.
4. Remove the cradle rear from the cradle front by pressing the indicated metal part (on both sides) to release
the 4 pins.
Note:
One may prefer to do this step on one side at a time.
DPU-00084
Revision 2.3

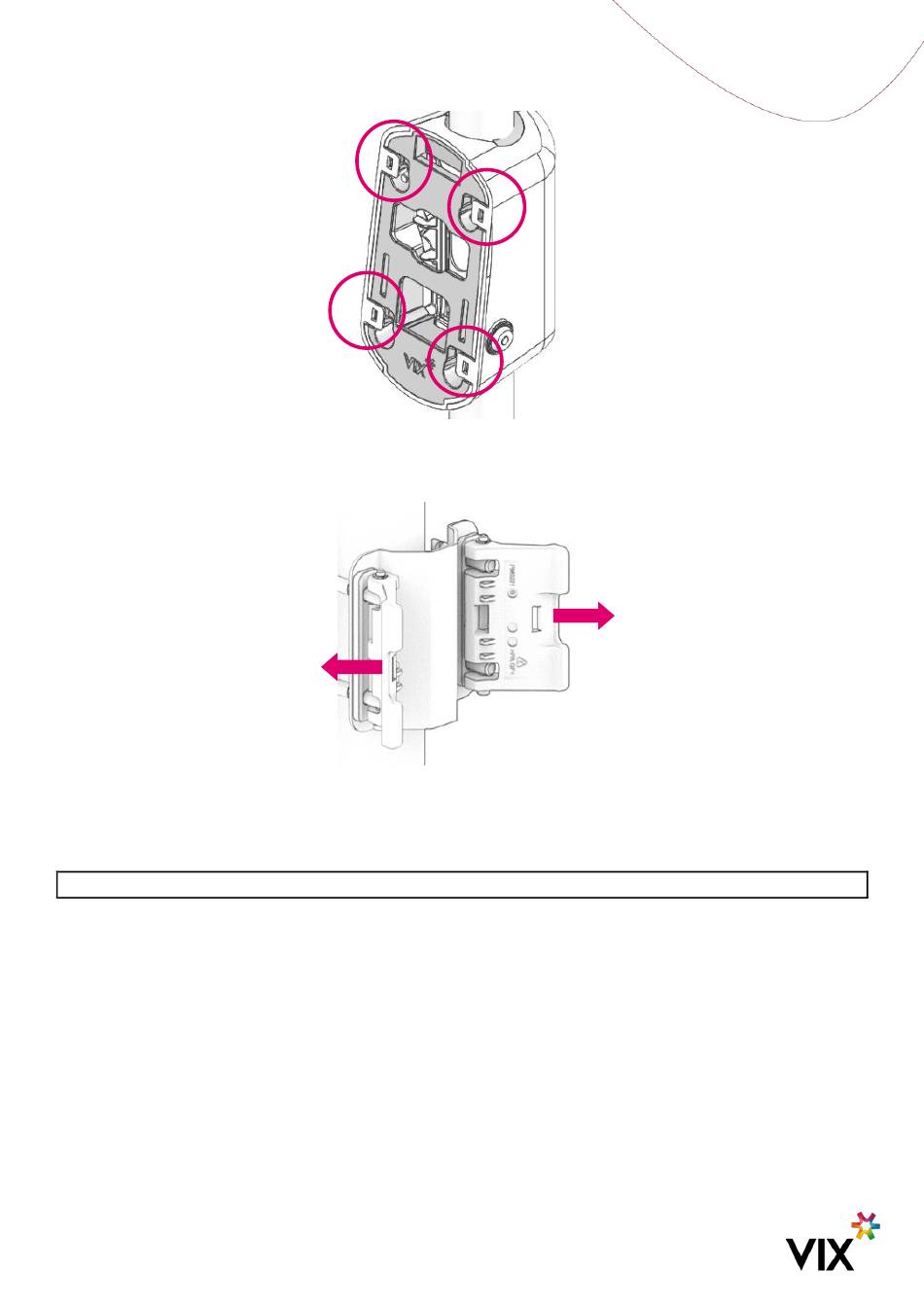

Figure 31: External Cover Removal
Figure 32: Opening Cradle Arms
Page 34 of 39
