3.3 Installation Example

Mechanically the Adept Validator is mounted in two ways:
1. Onto a pole with a cradle.
2. Onto a surface (e.g. Gates at train stations or TVMs (ticket vending machine)).
Refer to 6.7 for the details of the cut-out required on the surface.
DPU-00084
Revision 2.3

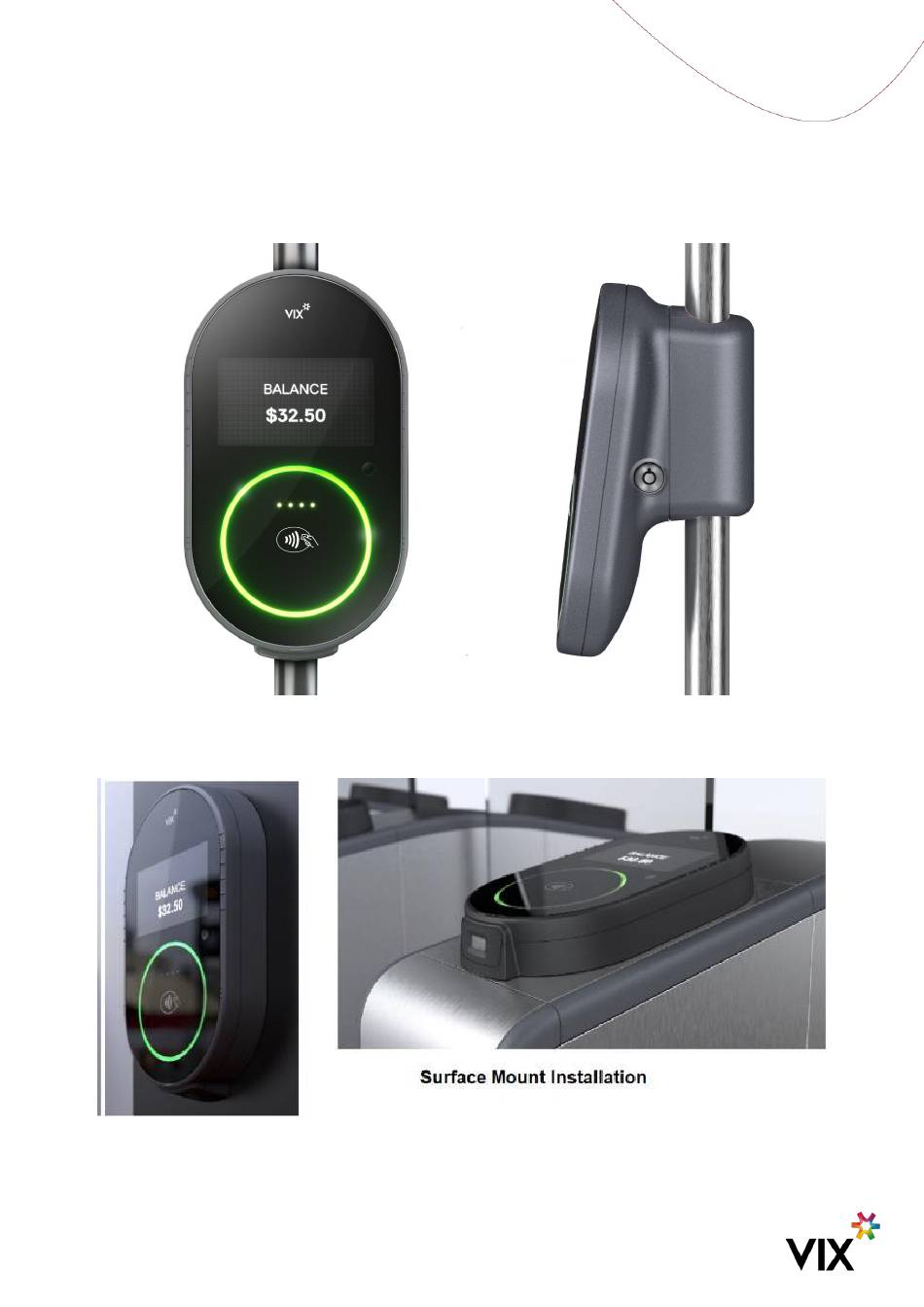

Figure 3: Picture of a Pole-Mounted Adept Validator

Figure 4: Picture of a Surface-Mounted Adept Validator

Page 13 of 39
