Zodiac RED LINE Instructions For Installation And Use Manual page 9

C‐R power supply 230V‐1N‐50Hz
N‐R‐S‐T power supply 400V‐3N‐50Hz
TH control thermostat with digital display
F1 fuse 3.15 A‐G
CD flow controller
So pool water control sensor (PTC)
R Heating element (power engraved on the metal resistor cup)
KM1 power contactor
TS safety thermostat positive (triggering at 63°C, manual reset)
GN‐GG black or grey sheath
CN Black cable with clips of colours
V‐j green‐yellow
B blue
M brown
Bl white
N black
Ro red
Vi violet
Ground

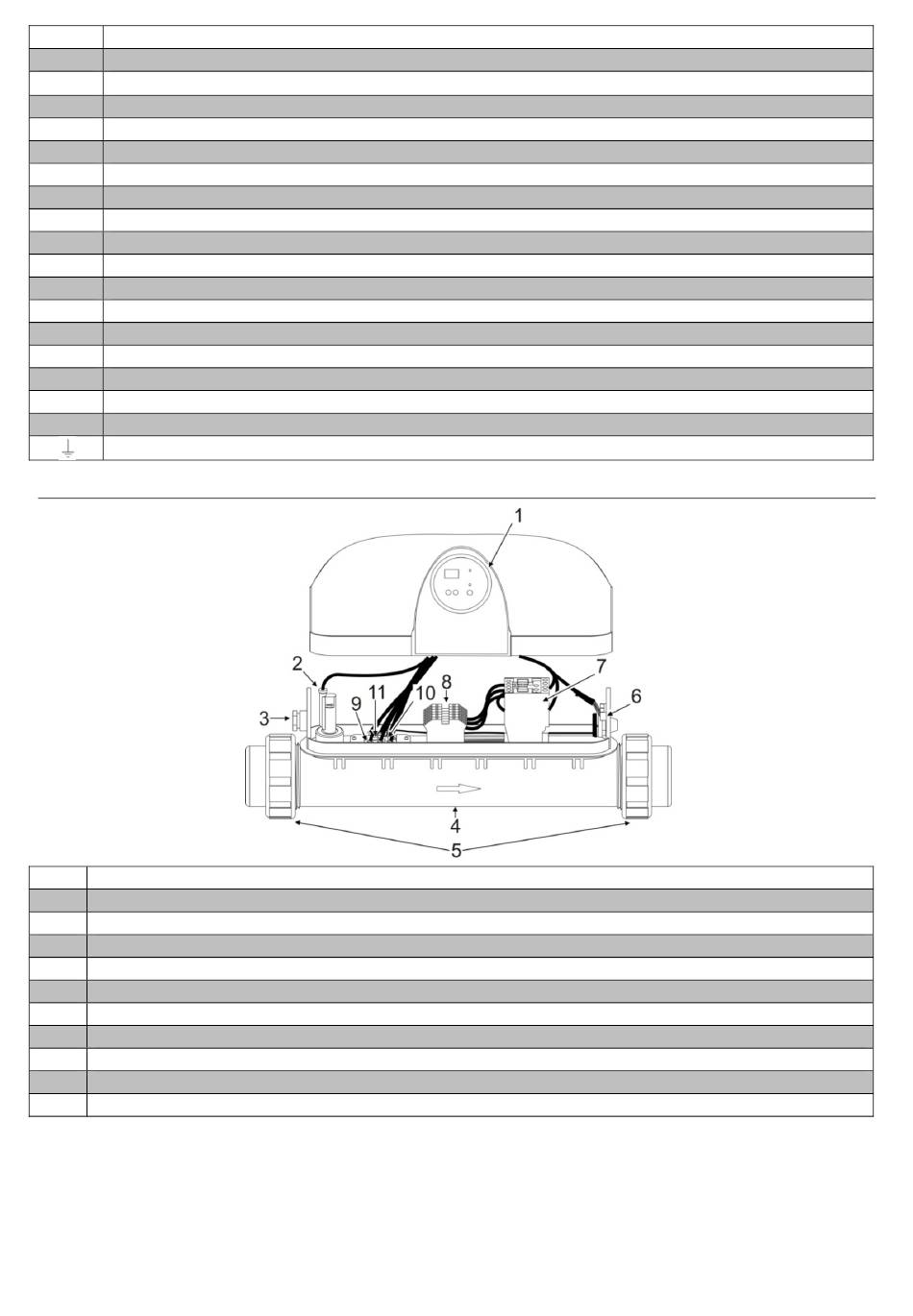

Description
1 Controller
2 flow switch
3 cable crossing
4 Preheater body
5 ½ union Ø63/50 fittings
6 safety thermostat positive
7 power contactor
8 connection terminal
9 Heating element
10 Pockets + control sensors
11 Pockets + high limit sensors
H03609‐00.B1.EN – 2012/01
2
