Loose terminals may cause the supply terminal board to overheat, and will void the warranty.
The device must be connected to an earth electrode.
Risk of electric shock inside the device.
The device must only be connected by a qualified and experienced technician.
If the power cable is damaged, it must be replaced by a qualified technician.

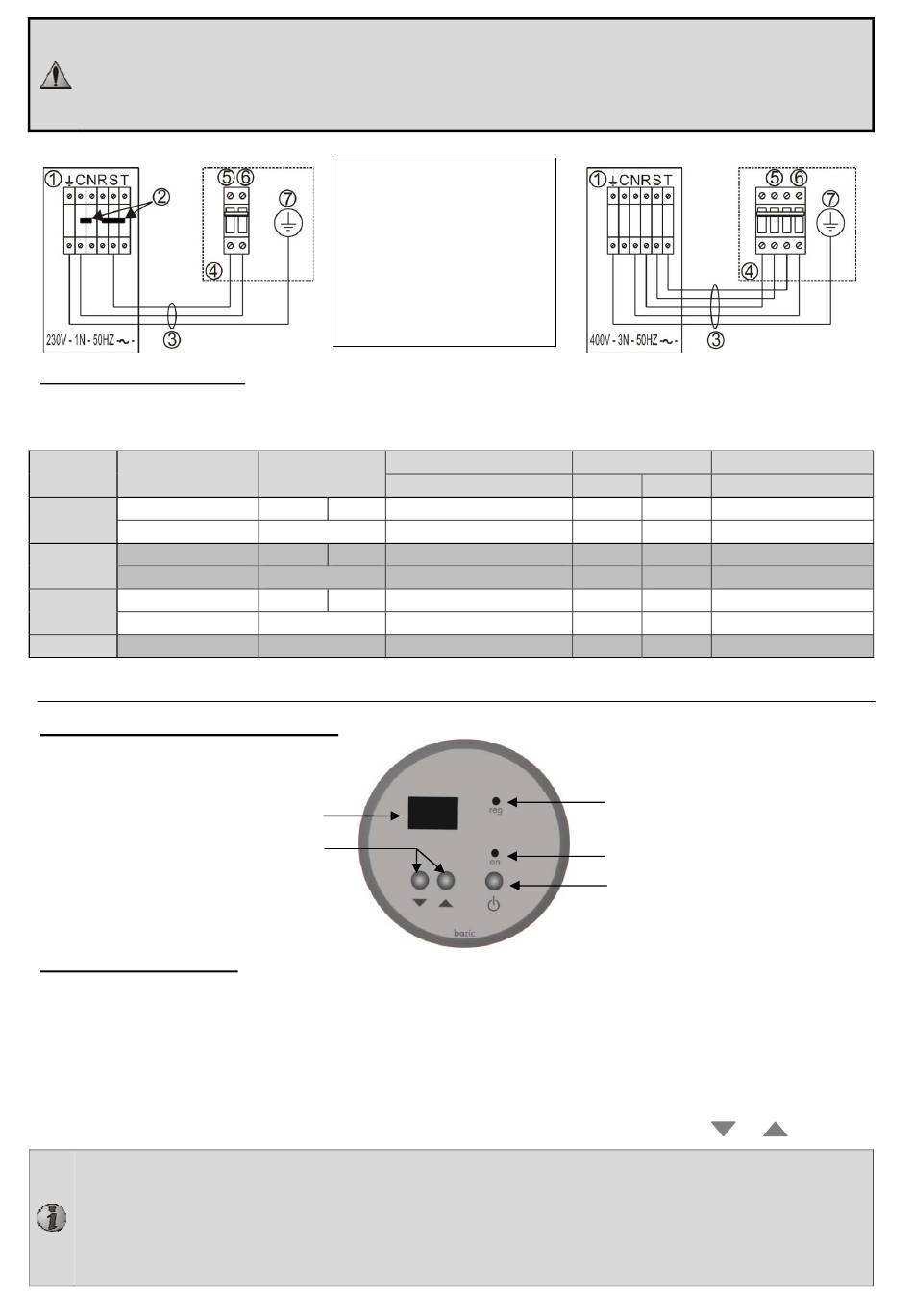

Single‐phase
2.3.3 Cable cross‐sections
•supply cable cross‐section: cables with a maximum length of 20 metres (calculation base: 5A/mm²), must be
checked and adapted depending on installation conditions.
Red Line + Voltage
230V/1N/50Hz
3
400V/3N/50Hz
230V/1N/50Hz
6
400V/3N/50Hz
230V/1N/50Hz
9
400V/3N/50Hz
12 400V/3N/50Hz
3. Use
3.1 Presentation of the regulation
control buttons
3.2 Starting the device
 Fully open valves 2 and 3 and close valve 1 (see §2.2), if installed,
 Start the filtration pump,
 Check that there is no air in the circuit,
 Check that the water flow rate is between 5 and 30m³/h. If it is above 30m³/h, adjust valve 1 so as to obtain
30m³/h maximum,
 Turn on control unit power, then start it,
 Adjust the setpoint temperature: display and modify the setpoint value by pressing either
 Pressing and holding either of these two buttons allows rapid change of the setpoint value.
 The temperature is controlled degree by degree.
 The setpoint value adjustment range is between 2 °C and 40 °C.
 This maximum temperature may be lowered to protect the swimming pool liner (see §5.4).
 If the setpoint temperature is greater than the pool water temperature: the "reg" indicator light flashes
for 15 seconds, then remains steady,
H03609‐00.B1.EN – 2012/01
 Heater terminal strip
 Shunt
 Power cable
 30 mA differential
circuit breaker
 Phase
 Neutral
 Earth
Terminal
shunts
R‐S‐T C‐N
/
R‐S‐T C‐N
/
R‐S‐T C‐N
/
/
Digital display
Temperature
Current consumption
A
14
5
27
9
40
13
18
Three‐phase
Cable section Electrical protection
mm²
3x4 3G4
5x2.5 5G2.5
3x6 3G6
5x2.5 5G2.5
3x10 3G10
5x4 5G4
5x4 5G4
Heater indicator light (steady =
heating in progress, flashing =
on stand‐by)
"On/Off" indicator light
"On/Off" button
or
A
16
10
32
16
50
16
20
.
4
