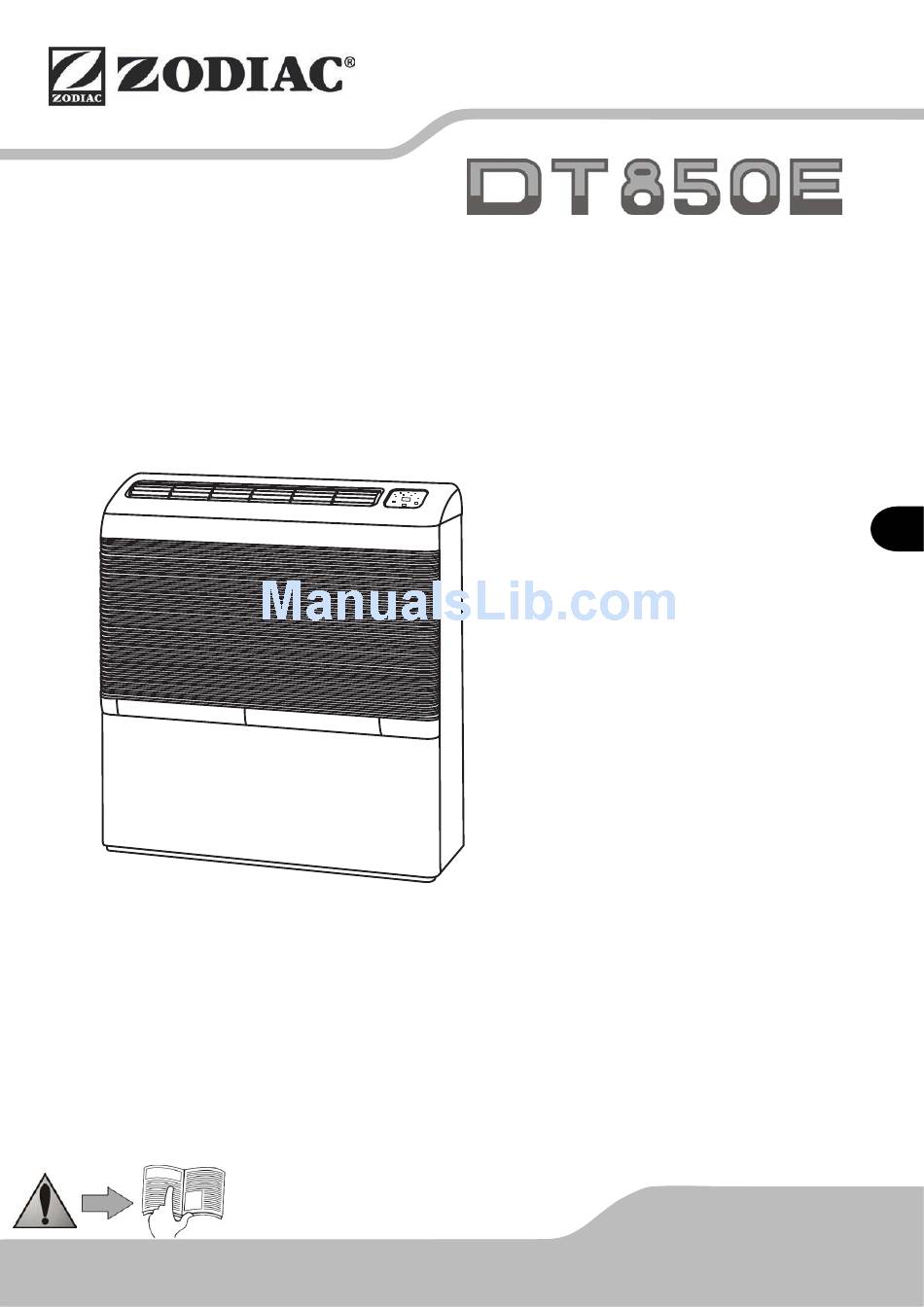

- Page 1 Instructions for installtion and use English H 03699 -0 0 .B - WBU02327 - 2012/05...
- Page 2 Read this manual carefully before installing, maintaining or repairing this device! The symbol indicates important information that must be taken into account in order to avoid risk of personal injury and/or damage to the appliance. The symbol indicates useful information. Warnings Our products may be subject to change without notice as part of our continuous improvement policy. Exclusive use: for dehumidifying swimming pool premises (must not be used for any other purpose), It must be installed in premises that are closed and well aired; in an area that is: not exposed to freezing risk, out of reach of water splashes, and where no pool maintenance products are stored, ...
-
Page 3: Table Of Contents
Summary 1. Information before installation ................ 2 1.1 General terms of delivery, storage and transport .................. 2 1.2 Content ................................ 2 1.3 Operating conditions ........................... 2 1.4 Technical specifications .......................... 2 2. Installation ....................... 3 2.1 Installation requirements .......................... 3 2.2 Installing the appliance .......................... 3 2.3 Connection of the condensation drain ...................... 4 2.4 Electrical connections .......................... 4 3. Operation ........................ 4 3.1 The Control Panel ............................ 4 3.2 Starting the appliance .......................... 5 3.3 Checks ................................ 5 4. Maintenance ...................... 5 4.1 Maintenance instructions .......................... 5 4.2 Additional recommendations ........................ 5 4.3 Spare parts .............................. 6 4.4 Recycling the product .......................... 6 5. Résolution de problème ................... 6 5.1 FAQ ................................ 6 6. Product registration .................... 7 7. Conformity certificate .................... 7 ... -
Page 4: Installation
* with ambient air at +15 °C and relative humidity of 70% protection class: IP 24 class: I, refrigerant gas: R410A refrigerant charge: see product information plate 2. Installation 2.1 Installation requirements Install the appliance on a level base on its four legs or on the dedicated fixing element, to avoid any overflows from the condensation tray, the legs must not be in contact with water, Easy access to the appliance for maintenance and connections, Place nothing in front of or on the blowing and suction grates, Risk of stratification: - height of the room < 4 to 5 meters: mechanical ventilator unit or extractor, - height of the room > 5 to 8 meters: ceiling fans with large blades. Building requirements: swimming pool building = very damp room, During building make sure that: - the materials used are compatible with a swimming pool environment, - the walls are sufficiently waterproofed and insulated to avoid condensation forming in the room ... -
Page 5: Connection Of The Condensation Drain
* minimum distance (depending on the norms that apply in the country of installation) ** maximum distance DT 850 E suction grid blowing grid fresh air intake condensation drain with angle pipe air renewal system (see §2.1) Pool 2.3 Connection of the condensation drain fit a drain pipe of appropriate size and length on the original outlet pipe (Ø16 outer diam.), allow a sufficient slope to ensure a proper flow for the drained water, connect the extremity of the pipe to a water evacuation drain with U‐bend, ensure that the pipe is not bent or angled, and that the extremity of the pipe is not immersed. ... -
Page 6: Starting The Appliance
3.2 Starting the appliance Connect the appliance to the power mains, Press the button. The fan speed and requested humidity level will be displayed (last settings), Set the desired humidity level using the ‘HUMIDITY’ button (40%, 50%, 60%, 70%) or set the appliance on continuous operation mode by pressing ‘CNT’ (ignores the humidity level), Set the desired fan speed using the ‘SPEED’ button, After a time lag of 3 minutes, if the ambient humidity level is higher than the requested level, the compressor will start up and the ‘COMP’ indicator will light up The optimal humidity level for comfort in swimming pool premises is 60%. Ventilation will run constantly when the dehumidifier is powered on. The appliance may occasionally perform defrosting cycles, the compressor will switch off, the corresponding indicator light will blink, and the ventilation will continue to run (’HI’ displayed at times). ... -
Page 7: Spare Parts
during the annual unit sealing test in accordance with applicable legislation, the high and low pressure switches must be checked to ensure that they are securely fastened to the coolant circuit and that they cutoff the electrical circuit when tripped. during maintenance work, ensure there are no traces of corrosion or oil around cooling components. before beginning work on the cooling circuit, stop the device and wait for a few minutes before fitting the temperature and pressure sensors. Some elements such as the compressor and piping may reach temperatures ... -
Page 8: Product Registration
6. Product registration Register your product using our website: - you will be among the first to be informed of new Zodiac products and special offers, - You can help us to constantly improve our product quality. Australia – New Zealand www.zodiac.com.au South Africa www.zodiac.co.za Europe and rest of the world www.zodiac‐poolcare.com 7. Conformity certificate Z.P.C.E. declares that the following products or ranges: Special pool dehumidifier: DT 850 E are in compliance with the provisions of: Electromagnetic compatibility directive 89/336/EEC Low voltage directive 73/23/EEC, as amended by 93/068/EEC The following harmonised standards have been applied: EN 60335.2.40 7 H03699‐00.B2.EN – 2012/05... - Page 9 Notes...
- Page 10 Electrical diagram DT 850 E L‐N Single phased power supply 230Vac‐1N‐50Hz Earth N black B blue M brown Bl white J yellow R red V/J Green‐yellow S1 air intake and humidity sensor S2 Defrost sensor M1 Fan motor M2 Compressor motor Fan capacitor C1 C2 Compressor capacitor PC Electric plug F1 Protection fuse 2A ...
- Page 11 Dimensions weight DT 850 E 37 kg H03699‐00.B2.EN – 2012/05 ...
- Page 12 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
