Zodiac JXI200N Workbook

& spa heater
Hide thumbs

Advertisement

Table of Contents

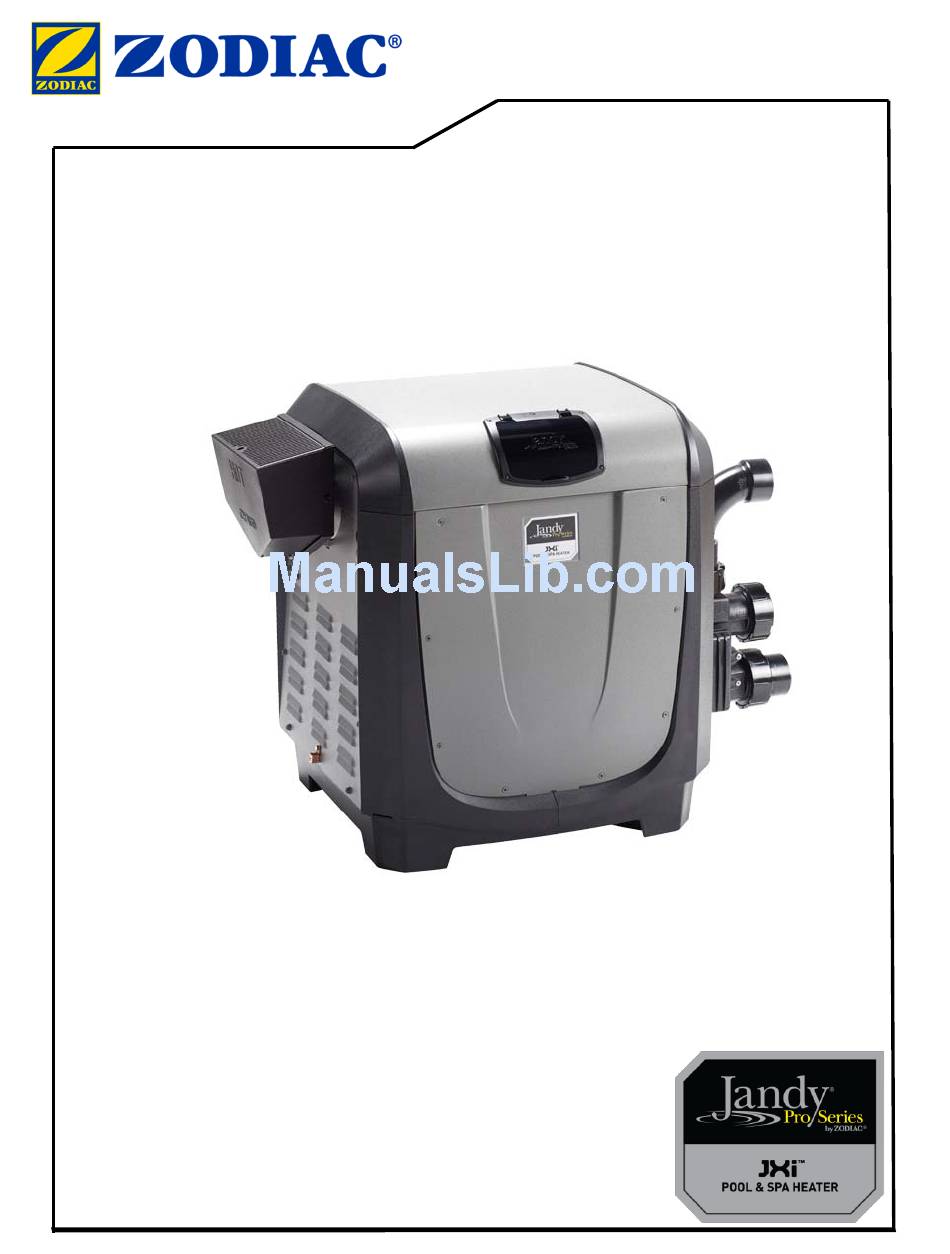

Workbook JXi Pool &
Spa Heater
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JXI200N and is the answer not in the manual?

Questions and answers

Related Manuals for Zodiac JXI200N

Summary of Contents for Zodiac JXI200N

  • Page 1 Workbook JXi Pool & Spa Heater...
  • Page 3 Zodiac Pool Systems Inc. 1-800-822-7933 - Regional ext. ____________ www.zodiacpoolsystems.com Instructor: _____________________________________________________________ ext._________ Sales Representatives: ___________________________________________________ ext ._________ ______________________________________________________________________ ext._________ ______________________________________________________________________ ext._________ Service Manager: _______________________________________________________ ext._________ ______________________________________________________________________ ext._________...
  • Page 4 Introduction The Jandy Pro Series JXi pool/spa heater is a blower assisted, internal combustion chamber, residential heater. Available Model Sizes: 200, 260 & 400K BTU's Model Numbers JXI200N, JXI200P, JXI260N, JXI260P, JXI330N, JXI330P, JXI400N, JXI400P JXI 400 N Model BTU's...

  • Page 5: Installation Requirements

    Installation Requirements (Field Assembly) Supplied power 120VAC or 240VAC Electrical wiring must be in accordance with the latest edition of the National Electric Code (NEC ), ANSI ® ® ® National Fire Protection Association (NFPA ) 70, or ® ® in Canada, the Canadian Electrical Code (CSA C22.1) ®...
  • Page 6 Installation Requirements PLUMBING Heater must be plumbed down steam of filter. Heater must be installed so that when the filter pump is off so to is the heater. All electrical equipment must be grounded and bonded. Plumbing Filter Filter Pump JXi Heater The JXi heater is Versa Plumb ready The Versa Plumb System reduces hydraulic resistance by up to 50% versus other equipment sets in...

  • Page 7: Water Inlet

    Installation Requirements Appropriate site location Clearances/ Combustable sufaces In both indoor installations (US) and outdoor shelter installations (Canada), the heater must be placed to provide clearances on all sides for maintenance and inspection, as well as maintain minimum distances from combustible surfaces.
  • Page 8 Clearances to Openings Distance from heater to door, window or other opening to living structure. Dimension “A”– 4’ minimum Distance from heater to forced air inlet or other vented opening. Dimension “B” –May be any distance if dimension “C” is 3’ or more. Dimension “B”–...
  • Page 9 Category l Venting 10’ Vent Cap 2’ 1/4 inch minimum pitch per foot of horizontal pipe. 12 inches from ceiling Type B Double Wall Vent Pipe. Adequate air into room See next slide 12 inches from floor Vent Size Heater Size 6"...
  • Page 10 Vent Connection and Pipe Sizing Vent Pipe or Elbow Increaser Installation (Category I and Category III) Exhaust Vent Remove the exhaust body. Rain Shield Remove the exhaust rain shield .(Figure 1) Figure 2. Remove Exhaust Body and Rain Shield Category I: Install a draft hood connector and an increaser to Figure 1 meet the vent size requirements per Table 2.
  • Page 11 Connection to Controls JXi CONNECTED TO AQUALINK RS AT RS 485 LINE There are two ways of connecting a Jandy JXi heater to the AquaLink RS. One way is to connect at the Pool and Common terminals of the Power Interface Board. This type of connection is shown on the next page. The other way is to connect to the RS 485 line (red terminal bar) as shown here.
  • Page 12 JXi Connected to “Fireman’s Switch” Air/Coil RESET POOL MODE AUTO SPA MODE SERVICE SPA DRAIN HEATER SOLAR TIME OUT SPA FILL Power Interface Board (PIB) POOL COMMON FIL- PMP AUX 1 AUX 2 AUX 3 AUX 4 AUX 5 AUX 6 AUX 7 INTAKE RETURN...
  • Page 13 DISPLAY BEZEL w/GASKET & COVER P/N = R0458300 End User Menu, Universal Control, LXi Hold down the Menu Button for 5 to 10 Seconds English Language Spanish French Fahrenheit Temperature Scale HEATER IS OFF PRESS POOL OR SPA Celsius Continuous ®...

  • Page 14: Heat Exchanger

    Components - Water Flow Heat Exchanger Bypass Kit with Shaft, Model 200 = 3 tubes C-Clip and Poppet Model 260 = 4 tubes R0589800 Model 330 = 5 tubes Model 400 = 6 tubes Heat Exchanger R0589402-05 Thermal Regulator Valve (TRV) R0589700 As with all pool heaters water velocity and flow through the heat exchanger are controlled by an automatic bypass.
  • Page 15 Components - Electrical Release Button Ignition Control Power Interface Board Power Distribution Board Raceway Release Button Press to release...

  • Page 16: Power Interface Board (Pib)

    Power Distribution Circuit Board P/N = R0458100 To covert from 240 VAC to 120 VAC wiring, snip the wire tie holding the conversion board in place. Remove the conversion board, flip it over and reinsert. Power Interface Board (PIB) R0458200...

  • Page 17: Ignition Control

    Ignition Control R0456900 Pre-Purge: 15 Sec. Ignition: 7 Sec. Interpurge: 15 Sec. Heat-Up: 40 Sec. Input : 24 VAC 50/60 Hz 300 mA Valve: 24 VAC, 2.0 A max. Inducer: 120/240 VAC, 3.0 A, ¼ HP Ignitor: 120 VAC, 5.0 A max. 50/60 Hz To Gas Valve From Thermostat From Air Pressure Switch...

  • Page 18: Water Temperature Sensor

    Transformer P/N = R0456300 This transformer is a center tap primary. When connected to the Power Distribution Board, this transformer provides 120 VAC to terminals L1 and L2 of the Ignition Control, whether the incoming power is 120 or 240 VAC. The secondary (24 VAC) of the transformer provides power to the Power Interface Board and the Ignition Control.
  • Page 19 High Limit Temperature Sensors Kit R0592300 High Limit – 150 °F High Limit – 135 °F High Limit – 150 °F High Limit – 135 °F...

  • Page 20: Fuel Components

    Fuel Components Air Blower Air Pressure Switch Union – Gas Orifice is located here Air Orifice Gas Valve...
  • Page 21 Blower Assembly R0591100 BLOWER INTAKE ORIFACE KIT NATURAL R0591302 R0591312 R0591303 R0591313 R0591304 R0591314 R0591305 R0591315 FUEL ORIFACE KIT NATURAL R0591601 R0591605 R0591602 R0591606 R0591603 R0591607 R0591604 R0591608...

  • Page 22: Air Pressure Switch

    Air Pressure Switch R0456400 Gas Valve R0591400 Hot Surface Igniter (HSI) R0457500 Range 50 to 500 Ohms...
  • Page 23 Burner R0591700 Exhaust Temperature Switch R0524300...
  • Page 24 JXi Troubleshooting Guide NOTE: If Blower is on Go to Step 13 STEP Check Power to High Limits STEP 1- Check Power at Dist. Brd. (make certain filter pump motor is on) 240 or 120 VAC between Black (C) 24 VAC between Black (8) wire on PIB Recheck power at Blue (7) Make certain filter pump is wire and Red (B) wire on Power...
  • Page 25 JXi Troubleshooting Guide Blower is ON – Start on Step 13 STEP 13- Check Air Pressure Switch Make certain Blower s on and combustion chamber is sealed. Check air tubes for kinks or holes. Make certain front air tube is connected to the positive (+) side and back/lower air 24 VAC between Orange (NO) wire at the Air tube is connected to negative (-) side of the Air Pressure Switch.
