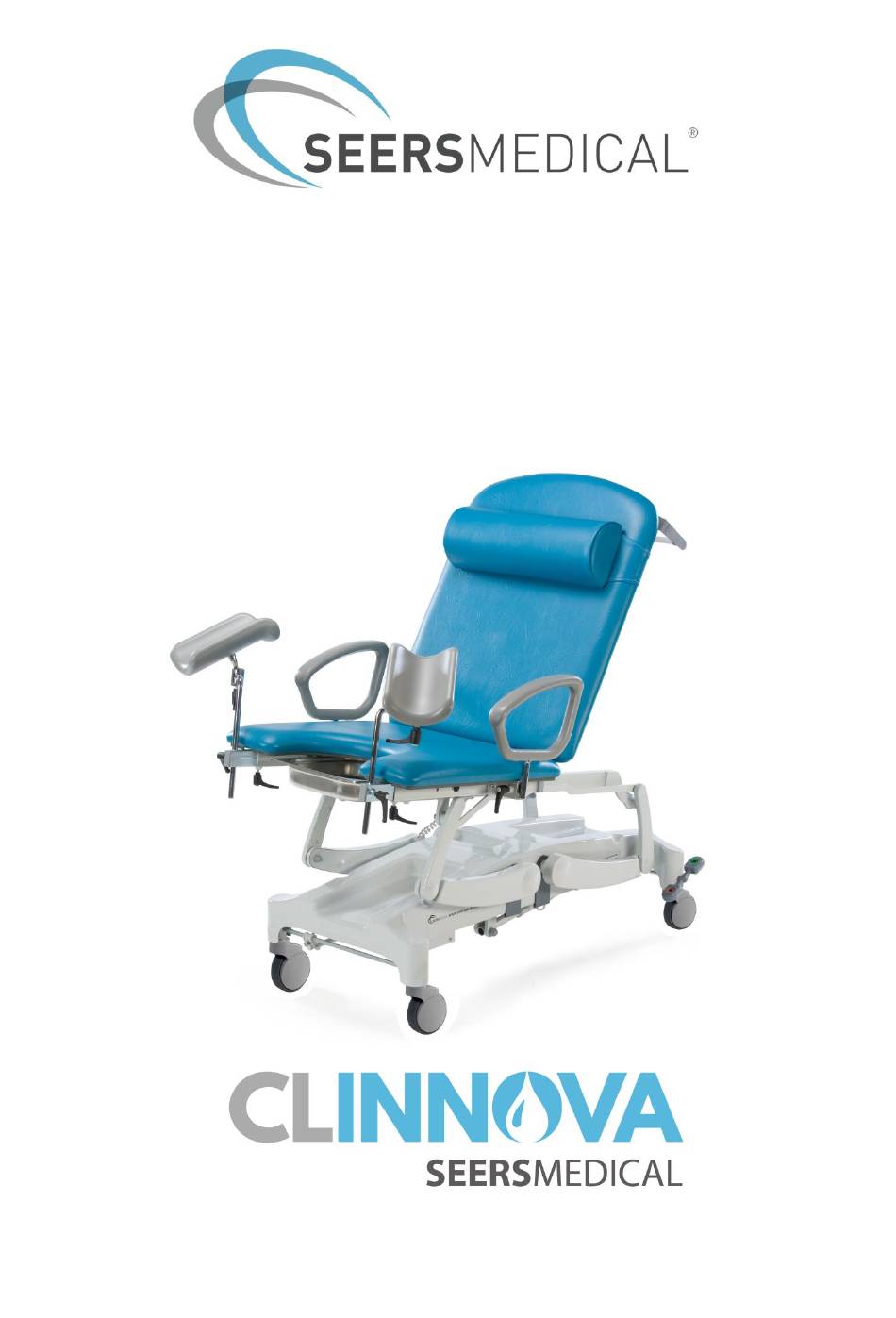

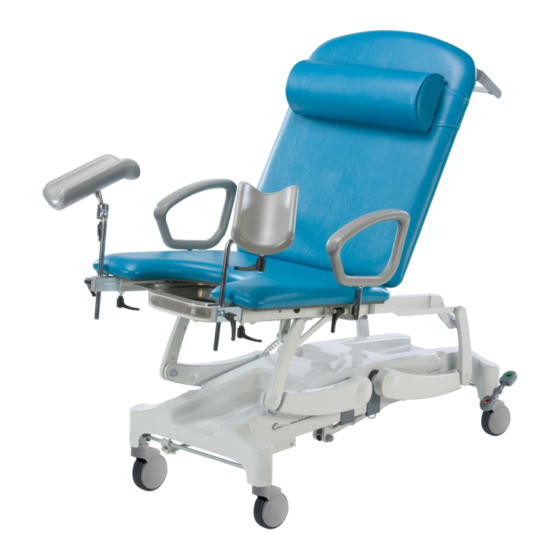

- Page 1 INSTRUCTIONS FOR USE CLINNOVA Gynae Pro DOC No. 03-204-IFU-UK ISSUE 1...
- Page 2 These Instructions for Use (IFU) apply to the following couches in the SEERS Medical CLINNOVA™ Clinical Product Range. CLINNOVA Gynae Pro NV8483-CLS-DSP, NV8483-PRM-DSP, NV8583-CLS-DSP, NV8583-PRM-DSP, NV8683-CLS-DSP, NV8683-PRM-DSP WARNING! To avoid injury, always read this Instructions for Safe Use and accompanied documents before using the product.
- Page 3 INDEX 1. GENERAL INFORMATION – INTENDED USE, WARNINGS & CAUTIONS 2. HOW TO USE – a. RETRACTABLE WHEEL SYSTEM – NV8583 b. ADJUSTABLE FOOT LEVELLING – NV8583 c. CENTRAL LOCKING WHEEL SYSTEM – NV8683 d. INDEPENDENTLY BRAKING CASTORS – NV8483 e.
-
Page 4: Intended Use
COLOUR. INTENDED USE: The CLINNOVA Gynae Pro is designed for a wide range of applications for rehabilitation, assessment and examination procedures. The couch should only be operated by trained medical personnel or clinicians. The CLINNOVA Gynae Pro has a safe working load of 285KG (628lb) Contraindications The safe working load (SWL) of the couch ...... - Page 5 Warnings identify potential hazards which if not followed correctly, could result in serious injury, or possibly even death! • Ensure electric couches are not used in the presence of flammable gasses such as an anaesthetic agent. • DO NOT EXCEED the Maximum Safe Working Load of 285 Kg (628lbs) – which must be distributed evenly across the working surface •...
-
Page 6: How To Use
2. HOW TO USE. RETRACTABLE WHEEL SYSTEM (NV8583-CLS-DSP, NV8583-PRM-DSP) Lever DOWN Lever UP Lever LOCKED DOWN Wheels ENGAGED and ON Wheels LOCKED and ON Wheels RETRACTED and OFF CAUTIONS! This Couch is not designed for patient transportation Ensure Wheels are Locked prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism, or placed in a position to cause a trip hazard! ADJUSTABLE FOOT (NV8583-CLS-DSP, NV8583-PRM-DSP) - Page 7 CENTRAL LOCKING WHEEL SYSTEM (NV8683-CLS-DSP, NV8683-PRM-DSP) Wheel Lever Down Wheel Lever Horizontal Lever Up – Directional steering All castors locked Castors un-locked castor engaged at rear of couch CAUTIONS! Ensure Castors are LOCKED prior to Patient use. INDEPENDENTLY BRAKING WHEELS (NV8483-CLS-DSP, NV8483-PRM-DSP) Castor in free roam mode Castor braked/locked 03-204-IFU-UK...
- Page 8 ADJUSTING THE HEIGHT OF THE COUCH WARNING! ENSURE the switch operating cable does not become entangled in the frame mechanism when Raising or Lowering the table STEP 1 To adjust the height of the couch, simply press the backrest function button indicated by the symbol, on the left hsnd side of the handset (key1) Once selected, the graphic in the display...
- Page 9 WARNING! The Couch is fitted with an intelligent control system, that knows it’s position of the motors. Rules to the system have been set that will not allow certain functions. For example, if there is not enough height for the table to tilt safely, it will automatically raise the height of the table before tilt can continue.
- Page 10 APPLYING TILT TO THE COUCH (POSITIVE OR NEGATIVE) WARNING! ENSURE the switch operating cable does not become entangled in the frame mechanism when Tilting the table STEP 1 To apply tilt to the couch, simply press the tilt function button indicated by the symbol, at the bottom of the handset on the left hand side (key9) Once selected, the graphic in the display...
-
Page 11: Cpr Function
H. TRENDELENBURG TILT (head down) WARNING! ENSURE the switch operating cable does not become entangled in the frame mechanism when Tilting the table To apply tilt to the couch, simply press the tilt function button indicated by the symbol, at the bottom of the handset on the right hand side (key6) and hold until desired head down angle is achieved Once selected, the graphic in the display... - Page 12 J. PADLOCK FUNCTION The handset has a lockout function, so functions of the table can be safeguarded against if necessary. To use this function, follow the steps below…. LOCKING A FUNCTION To lockout any function, press the corresponding function to lock out (ie height would be key1) and key10, the padlock, simultaneously and hold for 2 seconds.
-
Page 13: Paper Roll Holder
L. PAPER ROLL HOLDER To fit and change the paper towel, simply spring the bracket outwards, and remove the tube. Place the paper roll onto the tube and refit into paper towel holder, by springing frame out gently. Releasing the frame once the tube is in place. M. -
Page 14: Cleaning Instructions
CLEANING INSTRUCTIONS WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning: To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. - Page 15 3. Disconnect from mains power supply. 4. Control handsets can be wiped over using an anti-bacterial wipe. 5. Prepare a solution from the guidelines detailed above. 6. DO NOT SATURATE PRODUCT – This should be a wipe down – not a soaking! 7.
-
Page 16: Maintenance
MAINTENANCE WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. Actions to be done by clinician Daily Weekly ✓... - Page 17 W: www.seersmedical.com © SEERS MEDICAL Limited 2020 Manufactured in the UK by SEERSMEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. Product lifetime: The lifetime of this equipment is typically 10 years from the manufacturing date.
-
Page 18: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution Electrical functions not Mains cable has become disconnected, Locate control box and see whether the power light working correctly either from the wall socket or the control is illuminated and that the lead is connected at both ends. -
Page 19: System Reset
SYSTEM RESET The Gynae Pro is fitted with an advanced intelligent actuator system. If maintenance has been carried out, or an actuator has been disconnected for any reason, it may be necessary to reset the control system. If you are in any doubt Contact your reseller for after sales support and advice. To reset the actuator control system….. - Page 20 TECHNICAL DATA – CLINNOVA™ Gynae Pro Index / Model No. NV8483 NV8583 NV8683 Configuration Wheel System Independent Braked Castors Retractable Wheel Design Large Mobile Wheel Design Minimum Height 53cm Maximum Height 99cm Overall Length 160cm (without optional leg extension) Head Length 95cm Mid Length Foot Length...
-
Page 21: Electrical Technical Data
ELECTRICAL TECHNICAL DATA Electrical Data Control System Mnfr Timotion Input 100 - 240VAC, 50/60Hz, 2500mA IP Rating IP54 Output 32V, 128VA Duty Cycle 10% max, 2 min ON / 18 min OFF Mains Plug Fuse Rt (UK Only) 5.0A x 1 Electrical Classification IEC Double Insulated 60101-1... - Page 22 Symbols Safe working load Double Insulated (Class II) Alternating current (a.c.) Manufacturer Total weight of the equipment Manufacturing date including its safe working load European Complies with the Caution/Warning Regulatory affair Refer to instructions For Use Serial number Type BF applied part. Model number Do not sit on the edge marked in Waste Electrical and Electronic...
- Page 23 03-204-IFU-UK ISSUE 1...
- Page 24 +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2020 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with the European Device Directive...
