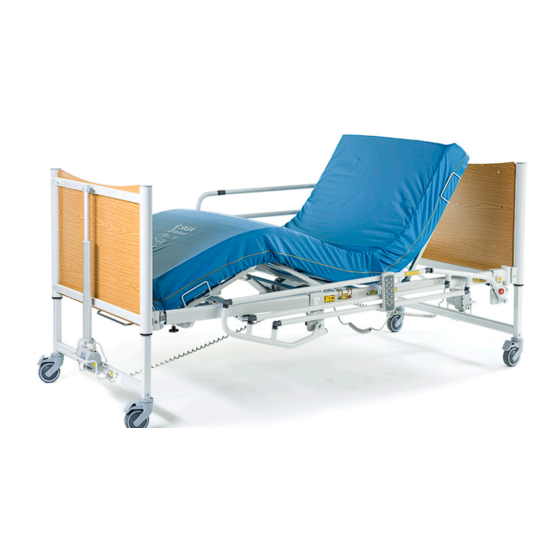

Signature Care Bed Range
Models CB0280, CB0195, CB1070 & CB1080
OPERATING INSTRUCTIONS
93/42/EEC
DOC No. 03-022-UM
ISSUE 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature CB0280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seers Medical Signature CB0280

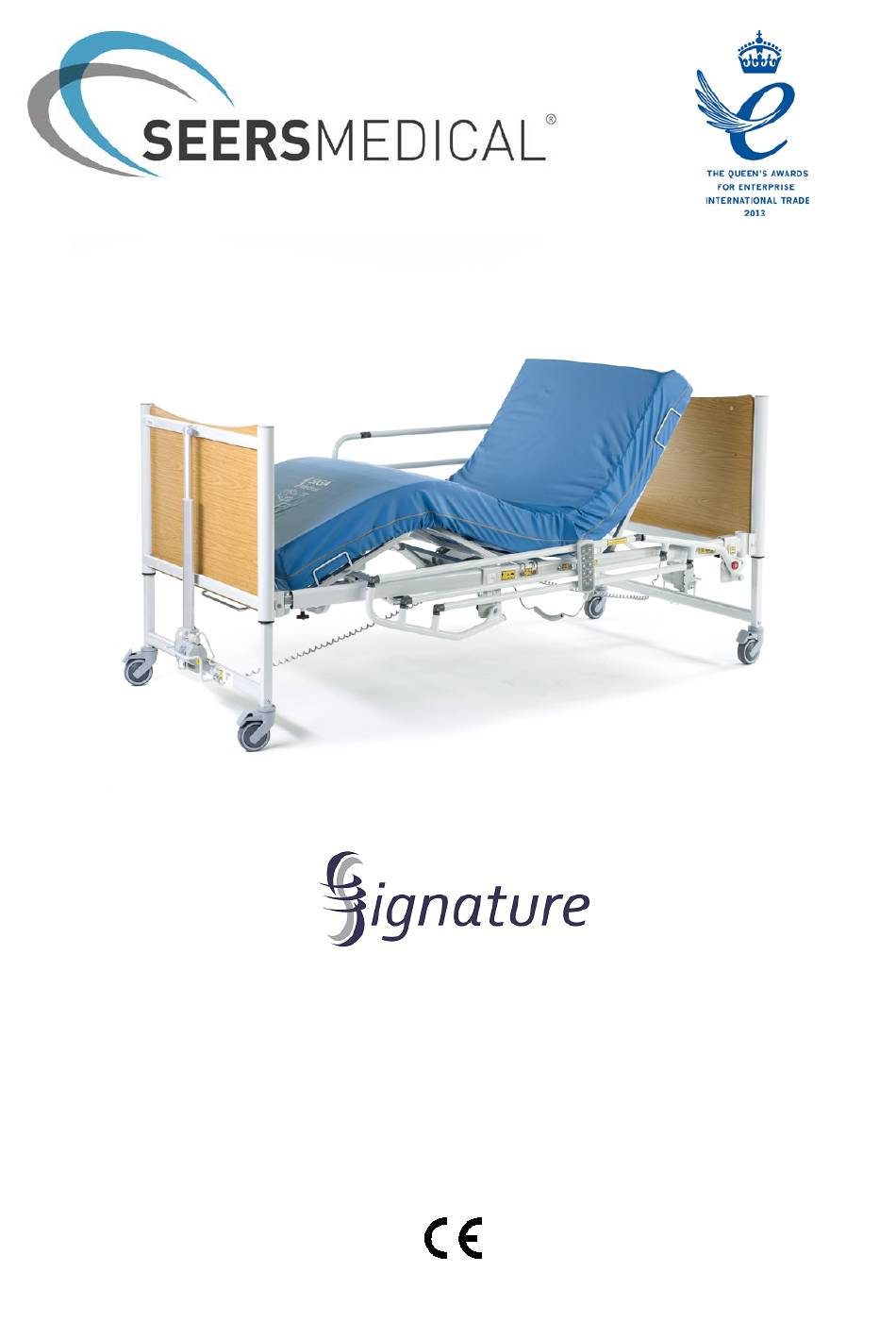

  • Page 1 Signature Care Bed Range Models CB0280, CB0195, CB1070 & CB1080 OPERATING INSTRUCTIONS 93/42/EEC DOC No. 03-022-UM ISSUE 2...
  • Page 2 DOC No. 03-022-UM ISSUE 2.0...
  • Page 3 INDEX INTRODUCTION 1.1 Warnings and Cautions 1.2 Features CARE BED USE 2.1 Risk Assessment 2.2 Bed Load 2.3 Symbol Definition & Product Labelling PARTS RECOGNITION ASSEMBLY OF THE CARE BED 4.1 Removing the sections from the storage stand 4.2 Assembling the Care Bed 4.3 Storage of the transport bracket 4.4 Connecting the electric actuators OPERATING &...
  • Page 4: Warnings And Cautions

    INTRODUCTION CONGRATULATIONS on the purchase of your SEERS Medical Signature Care Bed. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference.
  • Page 5: Risk Assessment

    BED FEATURES  Bed separates into four sections for ease of installation and transport  Electrically operated adjustment of height, backrest and knee break  Two directions of tilt, head or foot down (Trendelenberg or reverse Trendelenberg)  Regressing backrest for patient comfort ...
  • Page 6 SYMBOL DEFINITION & PRODUCT LABELLING Refer to Operating Instructions for further information Maximum user weight and safe working load Refer to this User guide for Mattress Replacement suitability Label Denotes fixing position for Side Rails to Care Bed W.E.E.E Label – do not discard as general waste - recycle Electrical safety classification –...
  • Page 7 PARTS RECOGNITION 1. Head end – Marked ‘A’ 2. Foot end – Marked ‘B’ 3. Locking castors 4. Backrest 5. Leg section 6. Backrest actuator with control box 7. High-low actuator 8. Knee break actuator 9. Handset 10. Parallel Leg Support Bar 11.
  • Page 8 ASSEMBLY OF THE CARE BED WARNING • Operating instructions should be fully read prior to assembly • Although the bed can be assembled alone, assistance will make it safer and easier • Lift the sections carefully when removing from the storage stand •...
  • Page 9: Assembling The Care Bed

    ASSEMBLY OF THE CARE BED (cont’d) 4.2 ASSEMBLING THE CARE BED 6. Ensure the castors are still locked on the bed ends 7. Whilst supporting head end, lift the backrest section & locate on to the bed end fixing bracket (pic e). 8.
  • Page 10 ASSEMBLY OF CARE BED (cont’d) WARNING! • DO NOT USE THE BED IF THE LOCKING PINS ARE MISSING OR NOT SECURED • DO NOT USE THE BED IF THE SAFETY SECURITY PINS ARE MISSING OR UNLOCKED • Lift the sections carefully when removing from the storage stand •...
  • Page 11 5. OPERATING & USING THE CARE BED SAFELY 5.1 The functions of the handset This Care Bed is supplied with a simple handset. The handset can be used by either the bed occupant or the carer. The handset also features a lockout facility, enabling the carer to disable functions of the bed which the carer feels unsuitable for the occupant.
  • Page 12 5.1 Setting the Lock out function of the handset 1. To lock any function of the bed, insert lockout key into handset 2. Hold the ‘UP’ key of the corresponding button function to be ‘locked out’ until illumination light of that channel is lit. 3.
  • Page 13 Operating the knee break/leg section The bed is fitted with an adjustable leg section. When the function on the handset is activated, the height or angle of the leg section is adjusted accordingly, dependant on whether the leg support bar is located on the underside of the leg support in the receiving or not. Knee Break mode.
  • Page 14 5.4 Extending the bed frame 1. Ensure the wheel brakes are on at the head end, as the bed extends at the foot end. 2. Lower the leg rest section to horizontal using the handset accordingly. 3. Loosen the two hand wheels, one each side of the bed that secures the extenders. 4.
  • Page 15 5.5 Mattress Extension platform (Must only be extended when bed frame has been extended) 1. Loosen both hand wheels on leg section to enable mattress extension to slide. 2. Pull mattress extension out evenly from the middle of the frame to maximum extension. 3.
  • Page 16 DIS-ASSEMBLING AND STORING WARNING! • These instructions should be fully read and understood prior to use • Ensure the bed is disconnected from the mains power supply prior to dismantling. • Becareful when lifting the bed sections, as lifting incorrectly could cause harm •...
  • Page 17 7. ACCESSORIES 7.1 LIFTING POLE ACCESSORY The Patient Lifting Pole accessory is supplied complete with a strap handle. WARNING! The maximum supported weight of the Lifting pole accessory is 80kg (12 stone) Ensure the pole is located and fitted correctly prior to use. The lifting pole should be checked frequently, for signs of damage, including inspection of the strapping and any loose stitching If damage is found –...
  • Page 18: Battery Backup

    7.2 BATTERY BACKUP The Care Bed is NOT fitted with Battery backup as standard, but can be purchased in addition. In the event of a power loss, the bed will not function, which could result in the height, tilt, backrest or knee break remaining in an up position.
  • Page 19 WARNING! • Side Rails used with beds pose a potential entrapment hazard – use with caution! • Ensure Side rails are fitted to the bed correctly – with the side rail enclosing the head end. • Do not over extend the cot sides the wrong way as damage could occur to the fixing pins •...
  • Page 20: Cleaning And Decontamination

    CLEANING & DECONTAMINATION WARNING! Disconnect the bed from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING THE PRODUCTS LENGTH OF SERVICE. Frequency of routine bed cleaning will depend on exact application.
  • Page 21: Maintenance

    MAINTENANCE It is recommended that only authorised and qualified service engineers should carry out any service repair activities. Failure to adhere to this advice may result in the manufacturer’s warranty being null and void. The Care Bed and any accessories attached should be serviced a minimum of every 12 months, and more frequently if the bed is in constant use.
  • Page 22: Troubleshooting

    TROUBLESHOOTING Fault Possible Cause Solution Electrical functions not working Mains cable has become Check control box and see whether correctly disconnected, either from the the power light is illuminated and that the lead is connected at both wall socket or the control box ends.
  • Page 23: Warranty

    © SEERS MEDICAL Limited 2015. Manufactured in the UK by SEERS MEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. DOC No. 03-022-UM...
  • Page 24: Technical Specification

    TECHNICAL SPECIFICATION DOC No. 03-022-UM ISSUE 2.0...
  • Page 25 The mattress and overlay are manufactured from polyurethane foam and their design incorporates: • Profiled, contoured surface divided into 5 zones in which the effective “hardness” of the foam is varied along the length of the mattress/ overlay in accordance with the anthropomorphical distribution of body mass.
  • Page 26 A full description of the device construction, together with build instructions and drawings is contained in the Device Master Record Number CB1070,CB1080 & CB1090. This record is held by the technical manager at SEERS Medical limited. Duration of Use As needed for pressure sore prophylaxis. This is dependent on the clinical condition of the user. It is anticipated that most units will be used in hospitals where duration of the stay is generally short, perhaps days or weeks, but possibly longer in some cases.
  • Page 27: Electrical Technical Data

    Type B Equipment CERTIFIED TO CSA STANDARD C22.2 No 60601-1 mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. 3154358 The Control box used on this SEERS Medical Product is a Recognized Component DOC No. 03-022-UM ISSUE 2.0...
  • Page 28 MANUFACTURED BY SEERS Medical Limited Kenton Road Debeham Suffolk IP14 6LA United Kingdom t: +44 (0) 1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.co.uk © SEERS MEDICAL Limited 2015 DOC No. 03-022-UM ISSUE 2.0...
