Instructions
for Use

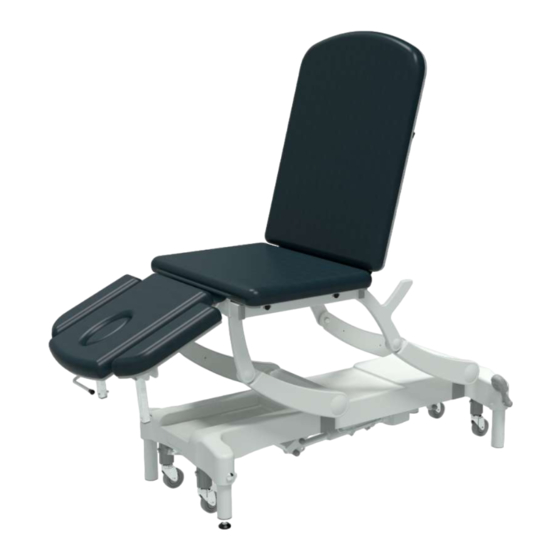

CLINNOVA Therapy Range
03-1005-IFU-EN | ISSUE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLINNOVA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Seers Medical CLINNOVA Series

Summary of Contents for Seers Medical CLINNOVA Series

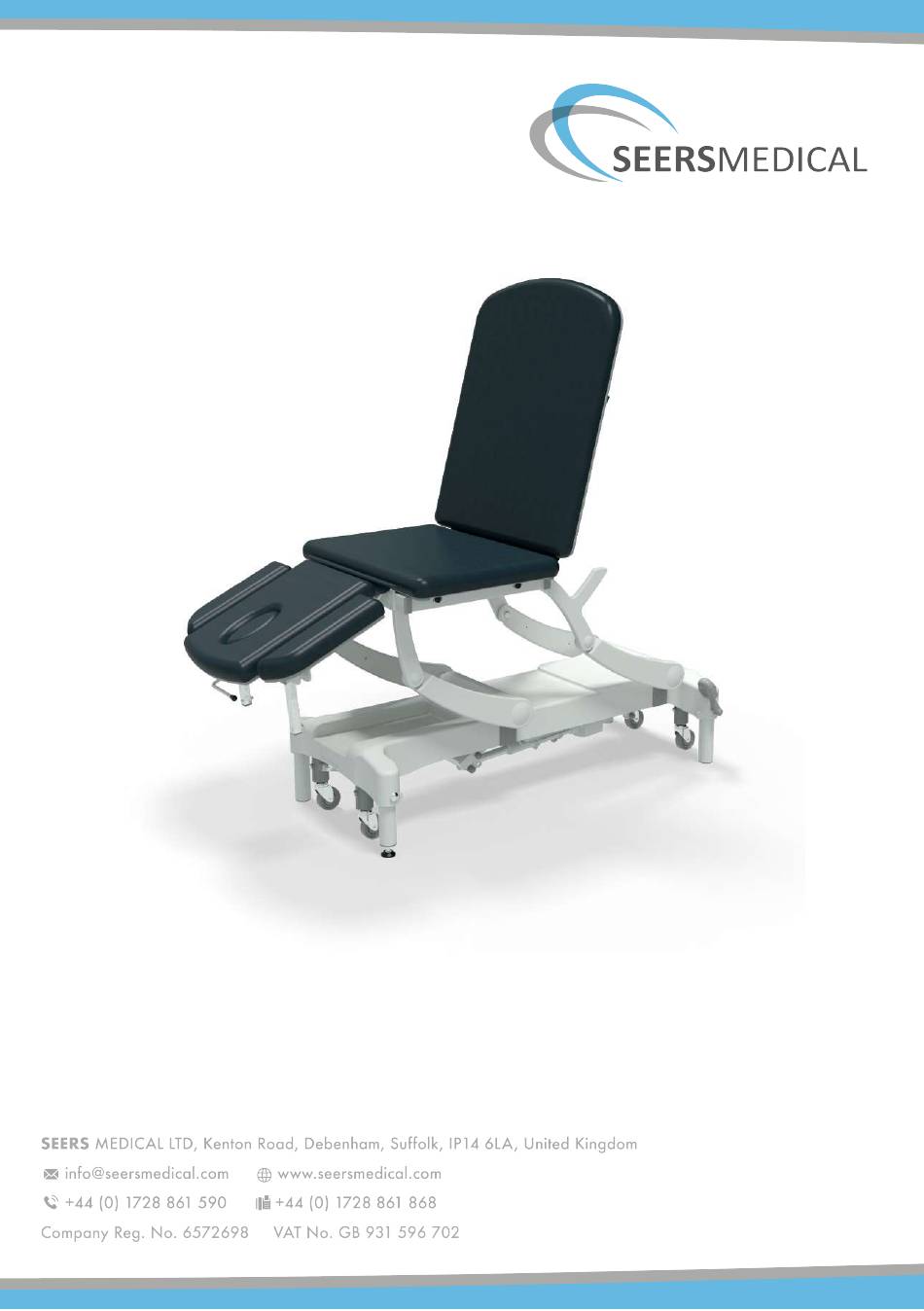

  • Page 1 Instructions for Use CLINNOVA Therapy Range 03-1005-IFU-EN | ISSUE 1...
  • Page 2 WARNING To avoid injury, always read this Instructions for Use and accompanied documents before using the product. Mandatory to read the Instructions for Use...
  • Page 3 This Instructions for Use document applies to the following products: CLINNOVA Mobile Hygiene NV1451A, NV1451B, NV1451C, NV1461A, NV1461B, NV1461C, NV1651A, NV1651B, NV1651C, NV1661A, NV1661B, NV1661C CLINNOVA Therapy Hygiene NV1551A, NV1551B, NV1551C, NV1561A, NV1561B, NV1561C CLINNOVA Therapy 2 Section NV2557, NV2558, NV2559, NV2567, NV2568, NV2569 CLINNOVA Therapy 3 Section NV3557, NV3558, NV3559, NV3567, NV3568, NV3569 CLINNOVA Therapy Drop End...
  • Page 4 INDEX 1. General Information - Intended Use, Warnings & Cautions 2. How to Use Wheel system - retractable Adjustable Foot Wheel System - Large Mobile Wheel Design Wheel System - Independently Braking Castors Adjusting the Height of the Couch Adjusting the backrest & footrest Height Adjustment of Arms on Plus Head Models Only Paper Roll Holder Side Supports Rails...

  • Page 5: General Information

    1. General Information CONGRATULATIONS on the purchase of your new SEERS MEDICAL product. If these operating instructions are adhered to, the product will provide many years of safe use. If these operating instructions are not followed, your warranty could be invalid! Always keep these Instructions for Use available for reference.
  • Page 6 WARNINGS! Warnings identify potential hazards which if not followed correctly, could result in serious injury, or possibly death!  Ensure electric couches are not used in the presence of flammable gasses such as an anaesthetic agent.  DO NOT EXCEED the Maximum Safe Working Load of the product. ...
  • Page 7 How To Use Wheel System (Retractable) Lever DOWN Lever LOCKED DOWN Lever UP Wheels ENGAGED and Wheels LOCKED and Wheels RETRACTED and OFF WARNING! This product is not designed for patient transportation. Ensure wheels are retracted/locked prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the product, ensuring the lead is not trapped in the mechanism.

  • Page 8: Adjustable Foot

    Adjustable Foot CAUTION! Ensure Wheels are retracted before adjusting the adjustable foot. Ensure the wheels are retracted and off. Adjust the foot by turning clockwise or anti -clockwise until the couch is stable on all legs. Secure the foot by tightening the nut until it locks against the threaded cap.
  • Page 9 Wheel System - Independently Braking Castors Castor Unlocked Castor Locked...
  • Page 10 Adjusting the Height of the Couch Hydraulic Elevation To elevate the couch, push the pedal downwards with your foot. Repeat until correct height is achieved. To lower couch, raise the pedal upwards, by putting your toe underneath the lever, lifting the lever upwards until the couch reaches the desired height.
  • Page 11 Raising the Couch  To elevate the couch, push the UP button on the hand or foot switch.  Once the desired height is achieved, release the button.  On releasing the button, the couch is locked at the desired position. Lowering the Couch ...
  • Page 12 Adjusting the backrest & footrest Gas Assisted Sections To raise the backrest, simply grasp the release lever towards the upholstery and adjust the backrest to the angle desired. Releasing the lever automatically locks the section at that angle. To lower, grasp the lever again, and lower the backrest to the required angle.

  • Page 13: Paper Roll Holder

    g. Height Adjustment of Arms on Plus Head Models Only 1. To adjust the arm rest height, 2. Slide the arm rest to the desired simply grasp the arm rest pad height and release the armrest and tilt it upwards towards the back to the horizontal position.
  • Page 14 i. Side Supports Rails WARNING! Children must not play with the couch at any time. Adequately supervise children in the proximity of the couch. Ensure the Side Support Rails are Fully Engaged into Socket, prior to use. To Raise the side support rail, simply lift and rotate 180 degrees, and then engage fully into socket.

  • Page 15: Cleaning Instructions

    3. Cleaning Instructions WARNING! Disconnect the couch from the mains power supply prior to carrying out any cleaning or decontaminating. DO NOT SATURATE PRODUCT! IF THE PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. General Cleaning To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth.
  • Page 16 Ink, Ball point pen, Denim, hard stains Rub the stain by means of gentle circular movements with tissue dampened with 96°alcohol and water (1:1) After this rub the surface with gentle circular movement with tissue paper to dry it. Butter, oil, grease stains Wipe excess butter, oil or grease off the surface with a clean 100% Cotton white dry cloth.
  • Page 17 If DECONTAMINATING the couch then repeat steps above using a dilute Hypochlorite & warm water mixture (mixed at 10,000ppm) instead of warm water and soap. It is crucial that any staining is treated as soon as possible but never later than 24 hours.

  • Page 18: Maintenance

    4. Maintenance WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. Actions to be done by clinician Daily Weekly...
  • Page 19 Actions to be done by qualified personnel Once a year  • Carry out a full test of all electrical couch positioning functions (backrest, height, etc.)  • Check operation of the backrest/footrest. Check gas struts operate smoothly and correctly throughout all ranges of movement.
  • Page 20 5. Warranty and Product Lifetime SEERS MEDICAL Limited standard terms and conditions apply to this device. A copy of this is available upon request. This contains full details of warranty terms and does not affect your statutory rights. For any further information on this product, regarding spares, warranty,...

  • Page 21: Troubleshooting

    6. Troubleshooting Fault Possible Cause Solution Electrical functions Mains cable has become Locate control box and see whether not working disconnected, either from the power light is illuminated and correctly the wall socket or the that the lead is connected at both control box ends.
  • Page 22 Mechanical faults Squeaking or An over tight pivot point Locate the noisy pivot point, then grinding noise either a bolt or pin is not slacken the securing nut by ¼ turn rotating freely. and lubricate until noise reduces. Wheels will not raise Couch is not on level floor Level couch by adjusting the or lower...
  • Page 23 7. Technical Data - CLINNOVA Mobile Hygiene Index / Model NV1451 NV1461 NV1651 NV1661 Large - A Medium - B Configuration Small - C Elevation Control Hydraulic Electric Hydraulic Electric Wheel System Central Locking Castors Min. Height 46cm Max. Height 95cm Large - 190cm - A Length...
  • Page 24 Technical Data - CLINNOVA Therapy Hygiene Index / Model NV1551 NV1561 Large - A Medium - B Configuration Small - C Elevation Control Hydraulic Electric Wheel System Retractable Wheel Design Min. Height 46cm Max. Height 95cm Large - 190cm - A Length Medium - 155cm - B Small - 120cm - C...
  • Page 25 Technical Data - CLINNOVA Therapy 2 Section Index / Model Configuration Elevation Hydraulic Electric Hydraulic Electric Hydraulic Electric Control Backrest Gas Assisted Wheel Retractable Wheel Design System Min. Height 46cm Max. Height 99cm Length 195cm 182cm Head Length 65cm 52cm Foot Length 130cm 130cm...
  • Page 26 Technical Data - CLINNOVA Therapy 3 Section Index / Model Configuration Elevation Hydraulic Electric Hydraulic Electric Hydraulic Electric Control Backrest & Gas Assisted Footrest Wheel Retractable Wheel Design System Min. Height 46cm Max. Height 99cm Length 203cm 190cm Head Length 65cm 52cm Mid Length...
  • Page 27 Technical Data - CLINNOVA Therapy Drop End Index / Model NV3556 NV3566 Configuration Elevation Control Hydraulic Electric Backrest & Footrest Gas Assisted Wheel System Retractable Wheel Design Min. Height 51cm Max. Height 100cm Length 186cm Head Length 39cm Mid Length 52cm Foot Length 95cm...

  • Page 28: Electrical Technical Data

    Electrical Technical Data Linak Ti-Motion Control Box 100 - 240V, 50/60Hz 100 - 240VAC, 50/60Hz, 2500mA Output 120W 32V, 128VA, Standby power 0.5W Duty Cycle 10% max, 2 min ON / 18 min OFF Mains Plug Fuse Rt 5.0A x 1- (UK) IP RATING IPX 6 washable...
  • Page 29 Symbols Safe working load Double Insulated (Class II) Alternating current (a.c.) Manufacturer Total weight of the Manufacturing date equipment including its safe working load Complies with the European Caution/Warning Regulatory affair Serial number Refer to instructions For Use Type B applied part. Model number Waste Electrical and Electronic Equipment...
  • Page 32 UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 e: info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2023 Advena Limited. Tower Business Centre, 2 Flr. Tower Street, Swatar, BKR 4013 Malta. mark on this product demonstrates conformity with MDR...
