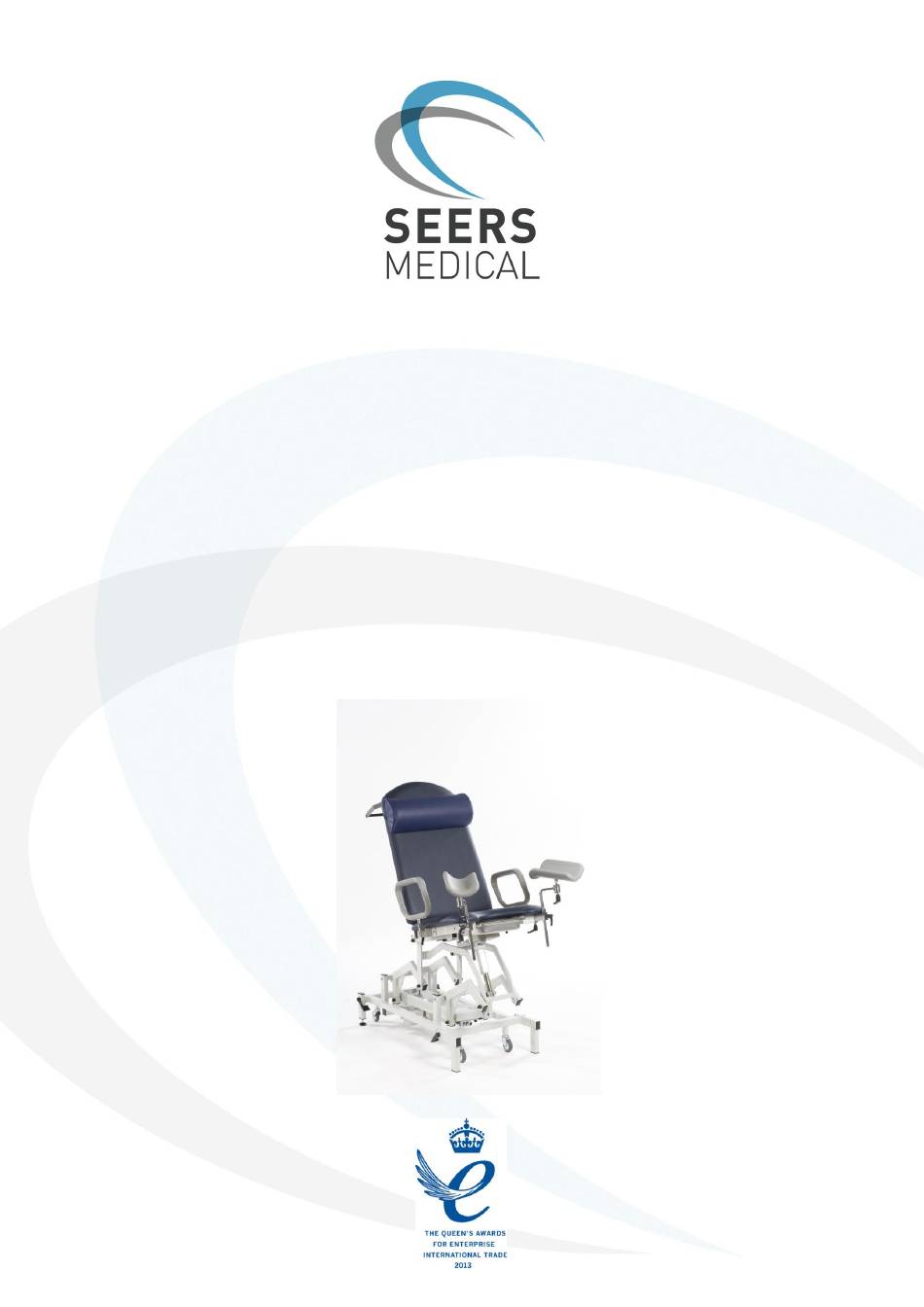

- Page 1 OPERATING INSTRUCTIONS SEERS Medicare Gynaecology Couch Model No.’s: SM8553, SM8563, SM8573, SM8583, SM8583D, SM8593D...
- Page 2 WHEEL SYSTEM b. ADJUSTABLE FOOT c. ADJUSTING THE HEIGHT OF THE COUCH d. ALTERING THE BACKREST ANGLE e. APPLYING TILT (models SM8583 & SM8583D) f. OPTIONAL ACCESSORY – DOUBLE OR TRIPLE FOOTSWITCH CONTROL g. LEG SUPPORTS h. ARM LOOPS i.
-
Page 3: General Information
1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Product. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. -
Page 4: Adjustable Foot
2. HOW TO USE. WHEEL SYSTEM Lever Down = Wheels activated and ON Lever Up = Wheels retracted and OFF WARNING! This Couch is not designed for patient transportation Ensure Wheels are retracted prior to patient transfer or treatment. Disconnect the electric lead prior to re-locating the couch, ensuring the lead is not trapped in the mechanism. - Page 5 ADJUSTING THE HEIGHT OF THE COUCH Hydraulic Elevation (models SM8553) To elevate the couch, push the pedal downwards with your foot. Repeat until correct height is achieved. To lower couch, raise the pedal upwards, by putting your toe underneath the lever, lifting the lever upwards.
- Page 6 ADJUSTING THE HEIGHT OF THE COUCH (models SM8573, SM8583 & SM8583D) To adjust the height of the couch, simply press the raise or lower button of the top button indicated by the symbol, until desired height is achieved. Once the button is released the couch height is locked in that position ready for use.
- Page 7 OPTIONAL ACCESSORY – DOUBLE OR TRIPLE FOOTSWITCH CONTROL (models SM8573, SM8583 & SM8583D) To adjust couch, press the relevant button to adjust height, tilt or backrest angle up or down.
-
Page 8: Debris Tray
ARM LOOPS 1. Locate Arm Loop into Holder Bracket on side of couch, and secure with indexed lever. 2. To gain more movement on the lever, depress button in centre of the lever, and pull out lever and move lever to opposite direction. - Page 9 REMOVABLE LEG EXTENSION The Leg Extension is to support lower limbs during supine or prone treatments when a full length couch is required 2. To use the extension, simply engage the extension into the receiving brackets and secure by tightening the locking lever on the underside.
-
Page 10: Cleaning Instructions
CLEANING INSTRUCTIONS General Cleaning: To get rid of any dust or marks on the surface the Faux Leather MUST be wiped DAILY with a moist soft cotton cloth. Visible and loose dirt can be picked up with a vacuum cleaner (Do not use a brush type vacuum) Use a soapy cotton cloth and gently rub stains with circular movements. - Page 11 6. DO NOT SATURATE PRODUCT – This should be a wipe down – not a soaking! 7. Start by cleaning the top surface of the couch, working down onto the frames below, ensuring to not accidentally activate any of the release levers, or user interface parts. 8.
-
Page 12: Maintenance
4. MAINTENANCE WARNING! Disconnect the couch from the mains power supply prior to carrying out any maintenance. All electrical maintenance should be performed by a suitably qualified person. BLUE or BROWN wires must not be connected to any earth terminal. A visual inspection should be carried out daily prior to use. -
Page 13: Warranty
W: www.seersmedical.com © SEERS MEDICAL Limited Manufactured in the UK by SEERS MEDICAL Limited. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. DOC No. 03-016-UM... - Page 14 6. TECHNICAL DATA - MEDICARE GYNAECOLOGY COUCH Index SM8553 SM8563 SM9573 SM8583, SM8583D Elevation Control Hydraulic Electric Electric + Electric Backrest Electric, + Electric Tilt, + Electric Backrest Overall Length (cm) 145cm with out extension, 176cm with extension. Mid Section Length (cm)
- Page 15 SEERS MEDICAL Limited Kenton Road Debenham Suffolk IP14 6LA t: +44 (0)1728 861590 f: +44 (0)1728 861868 info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited mark on this product demonstrates conformity with the Medical Device Directive 93/42/EEC. DOC No. 03-016-UM ISSUE 3...
