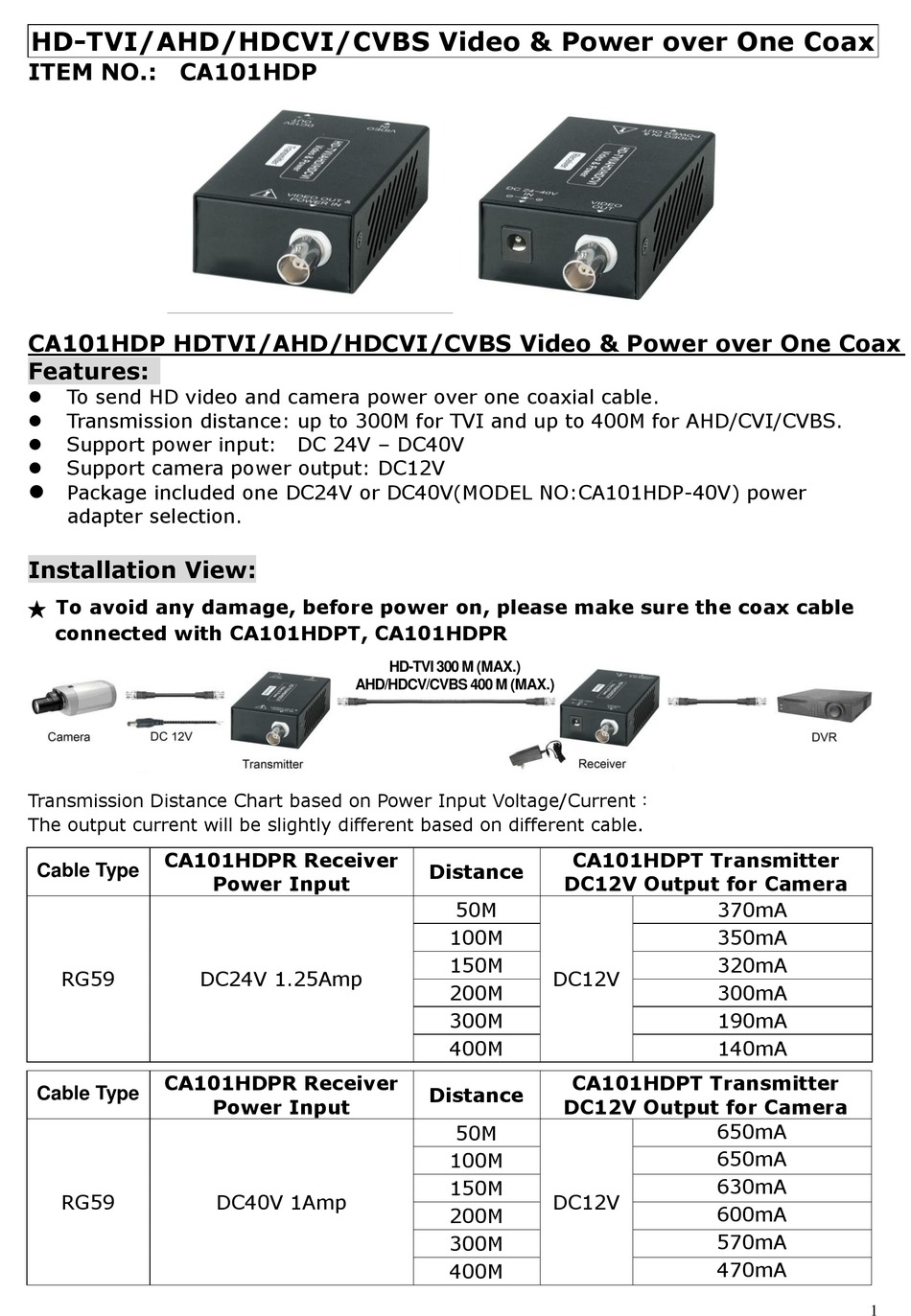

SC&T CA101HDP Manual

HD-TVI/AHD/HDCVI/CVBS Video & Power over One Coax
ITEM NO.: CA101HDP
CA101HDP HDTVI/AHD/HDCVI/CVBS Video & Power over One Coax

Features:

To send HD video and camera power over one coaxial cable.

Transmission distance: up to 300M for TVI and up to 400M for AHD/CVI/CVBS.

Support power input: DC 24V – DC40V

Support camera power output: DC12V


Package included one DC24V or DC40V(MODEL NO:CA101HDP-40V) power
adapter selection.

Installation View:

To avoid any damage, before power on, please make sure the coax cable
★
connected with CA101HDPT, CA101HDPR
Transmission Distance Chart based on Power Input Voltage/Current：
The output current will be slightly different based on different cable.
CA101HDPR Receiver
Cable Type
RG59 DC24V 1.25Amp
CA101HDPR Receiver
Cable Type
RG59
AHD/HDCV/CVBS 400 M (MAX.)
Power Input
Power Input
DC40V 1Amp
HD-TVI 300 M (MAX.)
Distance
50M
100M
150M
DC12V
200M
300M
400M
Distance
50M
100M
150M
DC12V
200M
300M
400M
CA101HDPT Transmitter
DC12V Output for Camera
370mA
350mA
320mA
300mA
190mA
140mA
CA101HDPT Transmitter
DC12V Output for Camera
650mA
650mA
630mA
600mA
570mA
470mA
1
