_____________________________________________________________________________A65 User Quick Setup Guide
____

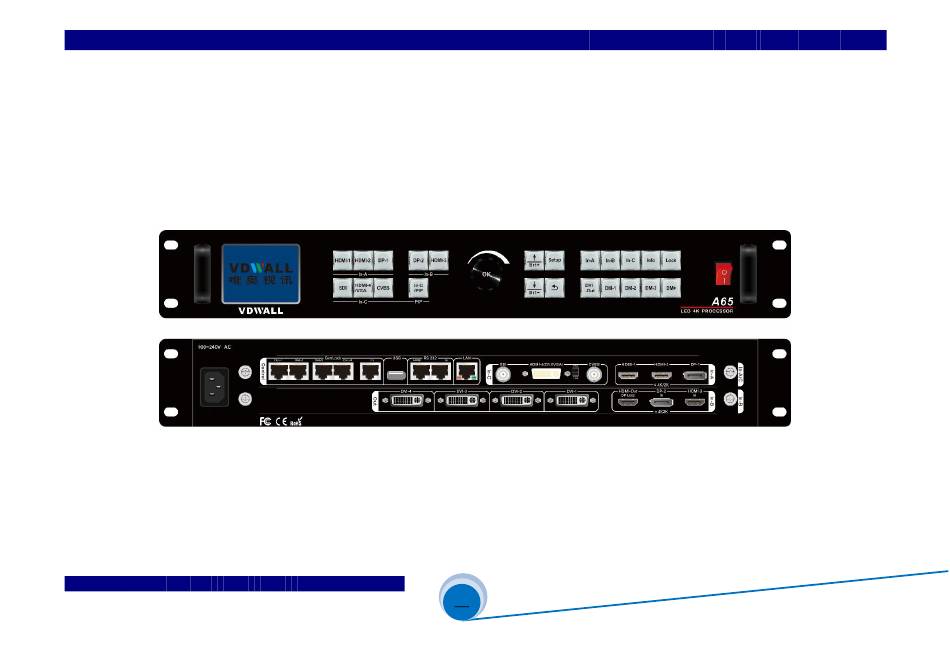

A65
User Quick Setup Guide
SHENZHEN VDWALL CO., LTD
2020.04
SHENZHEN VDWALL CO., LTD
www.videowall.cn
ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road,
1
Nanshan District, Shenzhen, China
TEL: 0755-26750210
Advertisement
Related Manuals for Vdwall A65
Summary of Contents for Vdwall A65
- Page 1 _____________________________________________________________________________A65 User Quick Setup Guide ____ User Quick Setup Guide SHENZHEN VDWALL CO., LTD 2020.04 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
-
Page 2: Front Panel Button
____ 1. Front Panel Button Source Card Selection Input Signal Selection Menu Setup Display Mode Button DVI Output Selection SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210... - Page 3 In menu setup, press this button to switch DVI output port. When in Cascading mode, DVI Output Port If slave A65 Genlock signal locked, button indicator light up, or else flicker. Switch Button Lock Button lock. Press this button directly, button indicator will light up, all button on front panel will be invalid, except Lock button itself, so as to avert misoperation.
-
Page 4: Operation
DM13、DM14、DM15、DM16. the last 3 display mode for backup usage, can’t be modified or recalled directly. Press ↑ 、↓ button to select different display mode，press OK button to confirm and apply SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road,... -
Page 5: Rear Panel Port Description
Control Port DVI Output Port Input Port 1） Input Signal Port A65 provides 3 input card： In-A is 4K input card，provides HDMI2.0×2 and DP1.2×1，can access in 4K2K_60Hz UHD signal or 2K HD signal In-B is also 4K input card，offers HDMI2.0×1 and DP1.2×1，only support 3840*2160_60/50/30/25/24 Hz UHD signal ... - Page 6 GenLock Out port， so forth realize completely synchronized splicing Single offers Out-1、Out-2、Out-3、Out-4 total 4 GenLock output port，support 5 cascading SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 7 _____________________________________________________________________________A65 User Quick Setup Guide ____ 3. A65 Image Processing Procedure S1: Input signal selection S2: Source selection Output processing：Genuine 4k2K_60Hz 3840 HDMI-1 4K input 1 from 3 HDMI-2 In-A DP-1 HDMI-3 4K input 1 from 2 1 from 3...
- Page 8 2.4） In-C is 2K input card，select signal from SDI-1、HDMI-6 or CVBS-1. On condition PIP-C function activated, user can select the other sub image source 2.5） Press front panel button directly to select signal channel for each input card SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road,...
- Page 9 4.2） Each DVI can display whole or partial 3840×2160 image，as S3 show，the image in dotted frame 5） Output image size&position setup（S4） 5.1） Each DVI can display cropped content (Finished in step 4.2) in any size and position SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road,...
-
Page 10: Adjustment And Setup
1.1） Plug input signal cable to 1.2） Connect DVI output to sending card or LCD 1.3） Usually，solution diagram as Figure 4-1： Figure 4-1 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China... - Page 11 ------------------------------------- button，select“5.2 Init Data”，press OK to confirm and apply， will automatically reboot and apply the new output resolution Figure 4-3 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 12 Input Source： In-C 输出口： DVI4 Out Port： DVI4 输入位置大小： （0,3840,0,2160） In Pos.&Size： （0,3840,0,2160） 输出位置大小： （0,1920,0,1080） Out Pos.&Size： （0,1920,0,1080） Figure 4-4 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 13 图 4-5 Figure 4-5 5.3.2）Select DVI output port that need configure, press DVI-Out button to shift DVI output SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 14 OK button to save and apply -------------------------------------- 5.4）Please refer to《Appendix 1》for detailed description of manual mosaic Figure 4-6 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 15 Press DM1、DM2、DM3 or DM+ to select target 图 4-7 Figure 4-7 display mode 6.3.2）Press DVI-Out button to select target DVI output port SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 16 Out H_Start = 0 Output V_Start = 0 Output Width = LED actual pixels in horizontal Output Height = LED actual pixels in vertical SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China...
- Page 17 DVI-Out button to shift DVI output port 7）After fast mosaic, if need fine tuning of mosaic parameters, enter menu “3.2 Manual Mosaic” SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China...
- Page 18 1056 3.1.8 Auto Calculation OK To Apply 3.1.8 Auto Calculation OK To Apply -------------------------------------- -------------------------------------- Figure 4-13 Figure 4-12 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 19 LED4 = 1824×960 then：X1=(3840×1728)÷3552=1868 Finally we secure the parameters as below： 1728 1824 Y1=1131 Y2=2019 Figure X1=1868 X2=1972 Figure AP1-2 SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
- Page 20 1131 3.2.5 Out Width 1728 1728 1824 1824 3.2.6 Out H_Start 3.2.7 Out Height 1056 1056 3.2.8 Out V_Start SHENZHEN VDWALL CO., LTD www.videowall.cn ADD: Room 1001,10th Floor, Tower 4, Fangda-City, Longzhu 4th Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...
