Vdwall A65 User Manual

Vdwall A65 User Manual

4k mosaic processor
Hide thumbs Also See for A65:
Table of Contents

Advertisement

Quick Links

A65
4K Mosaic Processor
User Manual V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vdwall A65

Summary of Contents for Vdwall A65

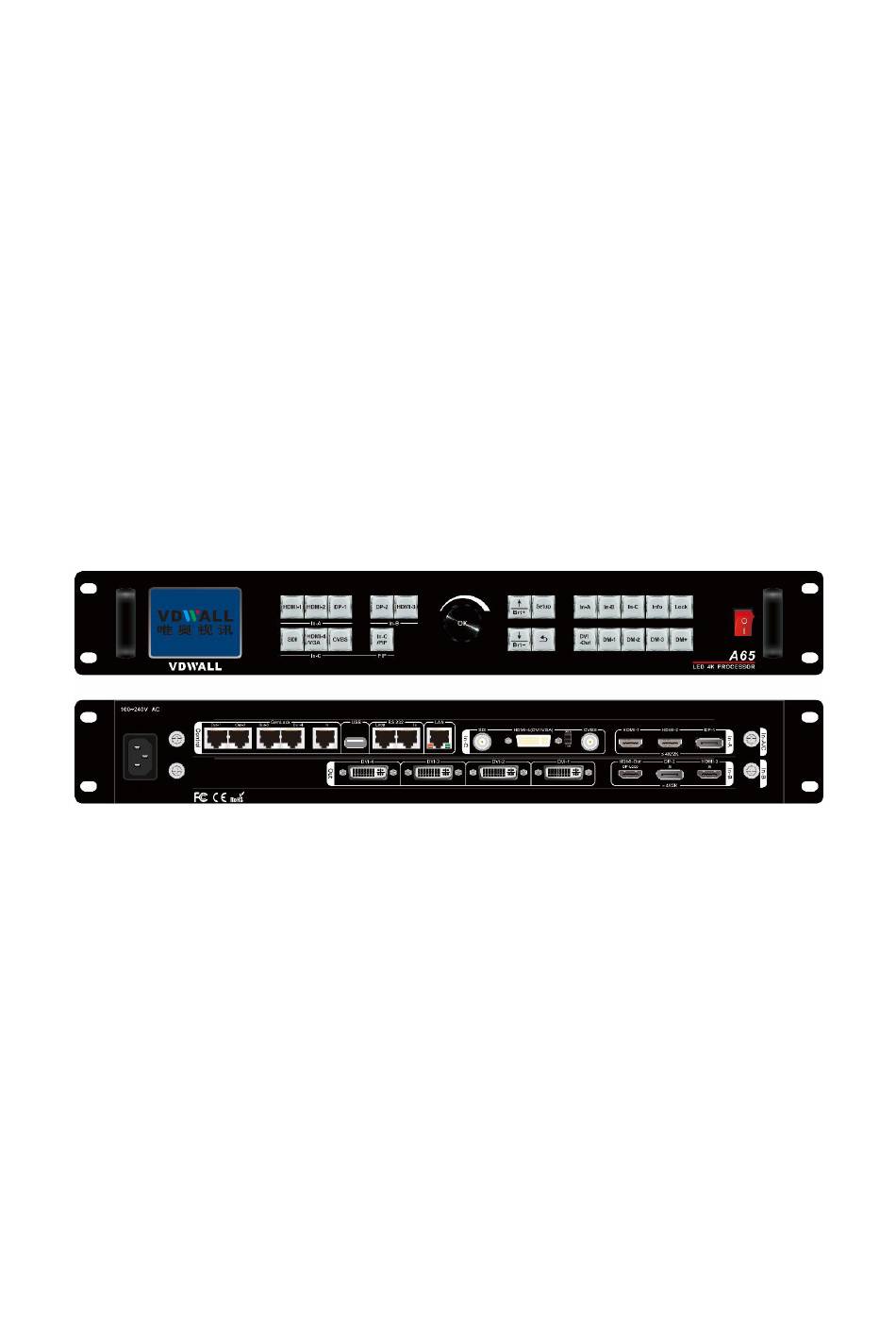

  • Page 1 4K Mosaic Processor User Manual V1.1...

  • Page 2: Table Of Contents

    A65 Series 4K Mosaic Processor Contents Chapter 1：Safety precautions............................2 Chapter 2：Packing list................................3 Chapter 3：Hardware connection............................4 3-1 Rear panel signal port overview..........................4 3-2 Port description................................4 3-3 Hardware connection diagram..........................6 3-4 Technical specification..............................7 3-5 Installation dimension..............................8 Chapter 4: Front panel button description........................10 4-1 Front panel button sketch map..........................

  • Page 3: Chapter 1：Safety Precautions

    A65 Series 4K Mosaic Processor Chapter 1：Safety precautions Danger ! There is high voltage in the processor, to prevent any unexpected hazard, please do not open the cover of the device,unless you are a maintenance personnel. Warning ! 1) This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.

  • Page 4: Chapter 2：Packing List

    A65 Series 4K Mosaic Processor Chapter 2：Packing list Please unpack the product with care, and then check whether all the following items are included in the package. If anything is missing, please contact the dealer or distributor. Standard accessories; The accessories supplied with this product may differ from the following pictures, but they are applicable for the regions where you live (LED sending card is optional accessory) 1.5m DVI cable X1...

  • Page 5: Chapter 3：Hardware Connection

    ②Video output port ③Communication port 3-2 Port description 1. Video signal input A65 include 3 video input cards, the series numbers are In-A、In-B、In-C. In-A is 4K input card; In-B is 4K direct input card; In-C is 2K input card; 2K input card constitutes 4 input channels, signal input port description as the following table：...
  • Page 6 1 channel of DP1.2 digital signal input (only support 4K input) HDMI Out DP1.2 Loop out signal of this card 2. Video signal output A65 offers 4 DVI outputs, output port description as the following table: Ports Description 4 channels of DVI output ports, connect to LED sending card DVI-1 ~ DVI-4 or LCD monitor .

  • Page 7: Hardware Connection Diagram

    A65 Series 4K Mosaic Processor 3-3 Hardware connection diagram Picture 3-2 Hardware connection diagram SHENZHEN VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road, Nanshan District, Shenzhen, China TEL: 0755-26750210...

  • Page 8: Technical Specification

    A65 Series 4K Mosaic Processor Technical specification Input signal index 3×HDMI 2.0（VESA/CEA-861） 2×DP1.2（VESA） Quantity / type 1×CVBS 1×DVI-I（VESA/CEA-861，support VGA/DVI/HDMI 1.3a） 1×SDI（SDI/HD-SDI/3G-SDI） Composite video format PAL/NTSC Composite video 1V（p_p）/ 75Ω amplitude / Impedance VGA format PC（VESA） ≤1920×1200_60Hz VGA amplitude / R、G、B = 0.7 V（p_p）/ 75Ω...

  • Page 9: Installation Dimension

    A65 Series 4K Mosaic Processor Others Control port RS232/USB/LAN Input voltage 100-240VAC 50/60Hz Rated power consumption Ambient temperature 0-45 ℃ Ambient humidity 15-85% Product size 482.6(L) x 380(W) x 66.6(H)mm Packing size 535(L) x 475(W) x 145(H)mm Weight G.W：8.5Kg, N.W：6.0Kg...
  • Page 10 A65 Series 4K Mosaic Processor RS232 connection cable and wire order Note: 1. A is RS232 female connector 2. B is RJ45 connector 3. Accord with emergency decree, The wires must be soft Picture 3-5b RS232 connection cable and wire order Genlock network connector wire order A port: (standard 586B): white orange, orange, white green, blue, white blue, green, white brown, brown.

  • Page 11: Chapter 4: Front Panel Button Description

    A65 Series 4K Mosaic Processor Chapter 4: Front panel button description Front panel button sketch map Picture 4-1 Front panel button sketch map ①Input card button ②Setup button ③Other function button SHENZHEN VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4...
  • Page 12 Information button，press this button to check A65 Info Button setup information and firmware version, press continually to turn page Info When A65 in Genlock cascading, If slave A65 Genlock signal locked, Info button indicator light up, or else flicker. SHENZHEN VDWALL CO.,LTD www.videowall.cn...
  • Page 13 A65 Series 4K Mosaic Processor Category Button Description Menu setup button. A65 in operation mode, press this Setup button to enter menu setup Knob or OK button, rotate this button to adjust setup value, press this button to save or apply configuration Menu Up and Down selection button.

  • Page 14: Chapter 5：User Basic Operation Instruction

    A65 Series 4K Mosaic Processor Chapter 5：User basic operation instruction After processor boot up, A65 will automatically detect the quantity and configuration information of current device, the default LCD interface as following picture. In-A：HDMI1 In-B：HDMI3 In-C：HDMI4 PIP：SDI ------------------------------------------ Output Mode：...

  • Page 15: Input Card Operation

    A65 Series 4K Mosaic Processor 5-1 Input card operation Under user operation status, input card operation includes: input card signal selection and PIP operation. 1.Input card signal source selection Input card A: press button HDMI-1、HDMI-2、DP-1 to select corresponding signal source;...
  • Page 16 A65 Series 4K Mosaic Processor 3. VGA input signal automatic calibration For input card In-C, if selected VGA signal is valid, press VGA button repeatedly for automatic VGA calibration, press to exit menu. Tips ------------------------------------------- VGA Auto Adjust Press <VGA> to start Press <Return>...

  • Page 17: Output Card Operation

    1. Output card display mode recall and mode duplication A65 offers 16 preset display mode, defined as DM1-DM16, DM1~DM13 is accessible for user direct modification and recall, DM14~DM16 only for mode duplication or backup, can’t be edited directly.
  • Page 18 A65 Series 4K Mosaic Processor 2. Output brightness setup Brightness adjustment ranges from 0 – 255, “0” represents the minimum brightness level, press Brt+ button to increase brightness, and press Brt- button to decrease, or rotate Knob button to adjust brightness value.
  • Page 19 Under operation state, press Lock button to lock all front panel button, only LAN, RS232, USB control is active, thus to prevent remote control and front panel control conflict. A65 will automatically enter key lock state once received remote control instructions.
  • Page 20 A65 Series 4K Mosaic Processor System Info ------------------------------------- Made data： 2020-04 ------------------------------------- Picture 5-3c LCD interface: System info Input - A(UHD) ------------------------------------------- Version： V1.1.0 Source： HDMI1 Input Signal： No Input ------------------------------------------- Picture 5-3d LCD interface: System info Input - B(Direct) ------------------------------------------- Source：...
  • Page 21 A65 Series 4K Mosaic Processor Input Card - C(HD) ------------------------------------------- Version： V1.1.0 Main： HDMI4 Input Signal： 1080p_60Hz PIP： Input Signal： No Input ------------------------------------------- Picture 5-3f LCD interface：System Info Output ------------------------------------------- Version： V2.1.3 Resolution： 1920x1080_60Hz ------------------------------------------- Picture 5-3g LCD interface：System Info...

  • Page 22: Chapter 6: User Setup Menu

    A65 Series 4K Mosaic Processor Chapter 6: User setup menu User setup menu consists of 5 sections, Language setup, Video Input setup, Output Image setup, Communication setup, System setup. Setup ------------------------------------------- 1. 语言/Language 中文 2. Video Input >> 3. Output Image >>...

  • Page 23: Language Setup

    A65 Series 4K Mosaic Processor 6-1 Language setup After system boot up, press Setup into user setup menu, first item 1.语言/Language, under this menu rotate Knob button to switch language, press OK button to confirm and apply. Setup ------------------------------------------- 1. 语言/Language 中文...

  • Page 24: Video Input Setup

    A65 Series 4K Mosaic Processor 6-2 Video input setup After system boot up, press Setup into user setup menu, select 2.Video Input by pressing ↑,↓ button, press OK button into this menu, this menu is used to set the parameters of Input card-C.
  • Page 25 A65 Series 4K Mosaic Processor 1.PIP setup Main Setup and PIP Setup menu is used to configure main image and sub image size and position. Under this menu, press ↑,↓ button to select the item, rotate Knob button to adjust current parameter, press OK button to confirm and apply.
  • Page 26 A65 Series 4K Mosaic Processor 2.Color & Brightness,etc. Color & Brightness,etc. menu is used to set the brightness, grayscale, and color parameters of the input signal. Press ↑ , ↓ button to select the item, then rotate Knob button to adjust current value, press OK button to confirm and apply.

  • Page 27: Output Image Setup

    A65 Series 4K Mosaic Processor 6-3 Output image setup After processor boot up, press Setup button into menu. Press ↑,↓ button to select 3. Output Image, press OK button into the following menu. This menu is used to adjust output image parameters.
  • Page 28 3.1.6 Unit H_Start and 3.1.7 Unit V_Start identify unit screen position on whole LED screen; 4. Select 3.1.8 Auto Calculation, press OK button to apply the configuration, A65 will automatically calculate and complete the mosaic; 5. If fast mosaic has misalignment, user can enter 3.2 Manual Mosaic to adjust the input and output parameter manually;...
  • Page 29 A65 Series 4K Mosaic Processor 3.2 Manual Mosaic DM1/DVI1 ------------------------------------------- 3.2.1 In Width 3840 3840 3.2.2 In H_Start 3.2.3 In Height 2160 2160 3.2.4 In V_Start 3.2.5 Out Width 1920 1920 3.2.6 Out H_Start 3.2.7 Out Height 1080 1080 3.2.8 Out V_Start Picture 6-3c LCD Interface：Manual mosaic...
  • Page 30 A65 Series 4K Mosaic Processor 2.Image quality setup Enter 3.3 Color & Brightness, etc. menu, this menu is used to set the grayscale, brightness and color parameters of output image. Setup procedure: Enter 3.3 Color & Brightness, etc. menu, press ↑,↓ key to select the menu item, rotate Knob button to adjust the current parameters, press OK to save and apply.
  • Page 31 A65 Series 4K Mosaic Processor 3.3.2 Brightness Default ------------------------------------------- 3.3.2.1 All DVI 128 -> 45 3.3.2.2 DVI1 >> 3.3.2.3 DVI2 >> 3.3.2.4 DVI3 >> 3.3.2.5 DVI4 >> ------------------------------------------- Picture 6-3f LCD Interface：Image quality setting 3.3.3 Color Default ------------------------------------------- 3.3.3.1 All DVI 128 ->...
  • Page 32 A65 Series 4K Mosaic Processor 3.Switch color setup 3.4 Switch Color Default ------------------------------------------- 3.4.1 Red 3.4.2 Green 3.4.3 Blue ------------------------------------------- Picture 6-3h LCD Interface：Switch color setup Switch Color menu is used to set the transition background color during signal switching, the default color is pure blue.

  • Page 33: Communication Setup

    A65 Series 4K Mosaic Processor 6-4 Communication setup Press Setup to enter the setup menu, press ↑,↓ button to select 4. Communication. Press OK button to enter the following menu. 4.Communication ------------------------------------------- 4.1 IP 192.168.1.8 4.2 Mask 255.255.255.0 4.3 Gate 192.168.1.1...

  • Page 34: System Setup

    A65 Series 4K Mosaic Processor 6-5 System setup Press Setup button into user setup menu, press ↑,↓ to select the 5.system, then press OK into menu as following picture 5 System ------------------------------------------- 5.1 Output Res. 1920x1080_60Hz 5.2 Init Data Press <OK >to apply ------------------------------------------- Picture 6-5a LCD interface：System Setup...
  • Page 35 In addition to the fixed preset output resolution, A65 also allows user defined output resolution. For the Custom Resolution, after entrance, user need set 5.1.1 Custom Width, 5.1.2 Custom Height and 5.1.3 Output Freq.
  • Page 36 A65 Series 4K Mosaic Processor Appendix: Manual modification record Version Time Description Custom First release V1.0 2020.3.20 Update the front panel picture and description V1.1 2020.4.15 SHENZHEN VDWALL CO.,LTD www.videowall.cn ADD: Room 1001,10 Floor, Tower 4, Fangda-City, Longzhu 4 Road,...
