M 2 1 5 S A F E T Y
M215 Safety
Important Safety Information

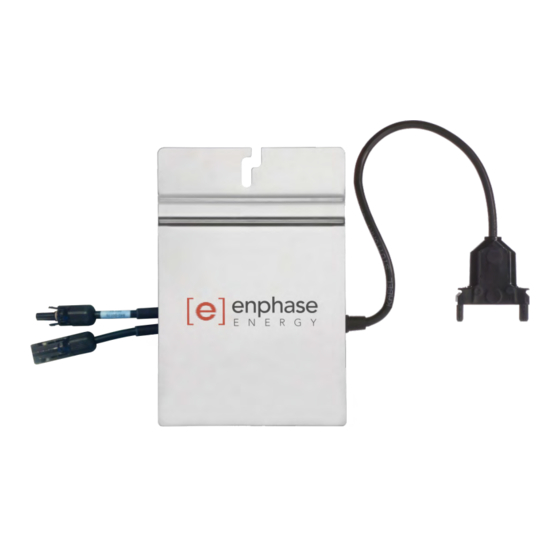

This document contains important instructions to use during installation of the Enphase M215 Microinverter™. To reduce the
risk of electrical shock, and to ensure the safe installation and operation of the Enphase Microinverter, follow these instructions.
The following safety symbols and information indicate dangerous conditions and important safety instructions.
Product Labels
WARNING: Hot surface.
DANGER: Risk of electrical shock.
Refer to product instructions.
Safety Instructions
DANGER: Before installing or using the Enphase Micro-
inverter, read all instructions and cautionary markings in
the technical description, on the Enphase Microinverter
System, and on the photovoltaic (PV) equipment.
DANGER: Do not use Enphase equipment in a manner
not specified by the manufacturer. Doing so may cause
death or injury to persons, or damage to equipment.
DANGER: Risk of Electrical Shock. Be aware that instal-
lation of this equipment includes risk of electric shock.
Do not install the AC junction box without first removing
AC power from the Enphase System.
DANGER: Risk of Electrical Shock. Do not install the
Engage Cable terminator cap while power is connected.
DANGER: Electric shock hazard. The DC conductors
of this photovoltaic system are ungrounded and may be
energized.
WARNING: Always de-energize the AC branch circuit
before servicing. Never disconnect the DC connec-
tors under load. Disconnect DC connections first, then
disconnect AC connections.
WARNING: The body of the Enphase Microinverter is
the heat sink. Under normal operating conditions, the
temperature is 15°C above ambient, but under extreme
conditions the microinverter can reach a temperature of
80°C. To reduce risk of burns, use caution when work-
ing with microinverters.
WARNING: When pairing with an M215 (M215-60-2LL-
S22-IG / S23-IG / S24-IG), the PV module DC conduc-
tors must be labeled "PV Wire" or "PV Cable".
(M215-60-2LL-S22-IG / S23-IG / S24-IG)
Safety and Advisory Symbols
DANGER! This indicates a hazardous situation, which if
not avoided, will result in death or serious injury.
WARNING! This indicates a situation where failure to
follow instructions may be a safety hazard or cause
equipment malfunction. Use extreme caution and follow
instructions carefully.
WARNING! This indicates a situation where failure to
follow instructions may result in burn injury.
NOTE: This indicates information particularly impor-
tant for optimal system operation. Follow instructions
closely.
WARNING: If the AC cable on the microinverter is dam-
aged, do not install the unit.
WARNING: You must match the DC operating voltage
range of the PV module with the allowable input voltage
range of the Enphase Microinverter: 16-48 VDC.
WARNING: The maximum open circuit voltage of the PV
module must not exceed the specified maximum input
DC voltage of the Enphase Microinverter: 48 VDC.
WARNING: The M215 has field-adjustable voltage and
frequency trip points that may need to be set, depending
upon local requirements. Only an authorized installer with
the permission and following requirements of the local
electrical authorities should make adjustments.
WARNING: Only use electrical system components ap-
proved for wet locations.
WARNING: Only qualified personnel should trouble-
shoot, install, or replace Enphase Microinverters or the
Engage Cable and Accessories.
WARNING: Make sure protective sealing caps have
been installed on all unused AC connectors. Unused AC
connectors are live when the system is energized by the
grid. Sealing caps may not be reused.
®

Advertisement

loading

Summary of Contents for enphase M215

  • Page 1 This document contains important instructions to use during installation of the Enphase M215 Microinverter™. To reduce the risk of electrical shock, and to ensure the safe installation and operation of the Enphase Microinverter, follow these instructions. The following safety symbols and information indicate dangerous conditions and important safety instructions.
  • Page 2 NOTE: If you need to remove a sealing cap, you must ⚠ use the Enphase disconnect tool or a #3 Phillips screw- WARNING: When installing the Engage Cable, secure driver. Sealing caps may not be reused. any loose cable to minimize tripping hazard.
  • Page 3 (M215-60-2LL-S22-IG / S23-IG / S24-IG) The M215 meets the requirements of NEC 690.35. Because the DC circuit is isolated and insulated from ground, the M215 does not require that you install a GEC between microinverters. Ground fault protection (GFP) is integrated into the microinverter.
  • Page 4 Envoy if the LCD displays: “Upgrading. . . Do Not Unplug.” Position the Enphase Engage™ Cable a. Plan the cable length to allow drop connectors on the Engage Cable align to with each PV module. Allow extra length for slack, cable turns and any obstructions.
  • Page 5: Quick Install Guide

    Details. connectors engage. b. Mount the microinverter under the PV mod- b. Cover any unused connectors with Enphase ule, away from rain and sun. Do not mount the Sealing Caps. Listen for two clicks as the con- microinverter in a position that allows long-term nectors engage.
  • Page 6 The status LED on the underside of each M215 lights green six seconds after DC power is applied. It remains lit solid for two minutes, fol- f. Attach the terminated cable end to the PV lowed by six green blinks.
  • Page 7 Enable Device Scan. for both the branch circuit and all upstream conductors lead- b. Use the Envoy menu button ing back to the PCC. See Circuit Calculations for M215 at to select Enable Commu- http://www.enphase.com/support. nication Check. Ensure at least three level bars show DANGER: ELECTRIC SHOCK HAZARD.
