enphase M215 Installation And Operation Manual

enphase M215 Installation And Operation Manual

Zep compatible microinverter
Hide thumbs Also See for M215:

Advertisement

Quick Links

Download this manual

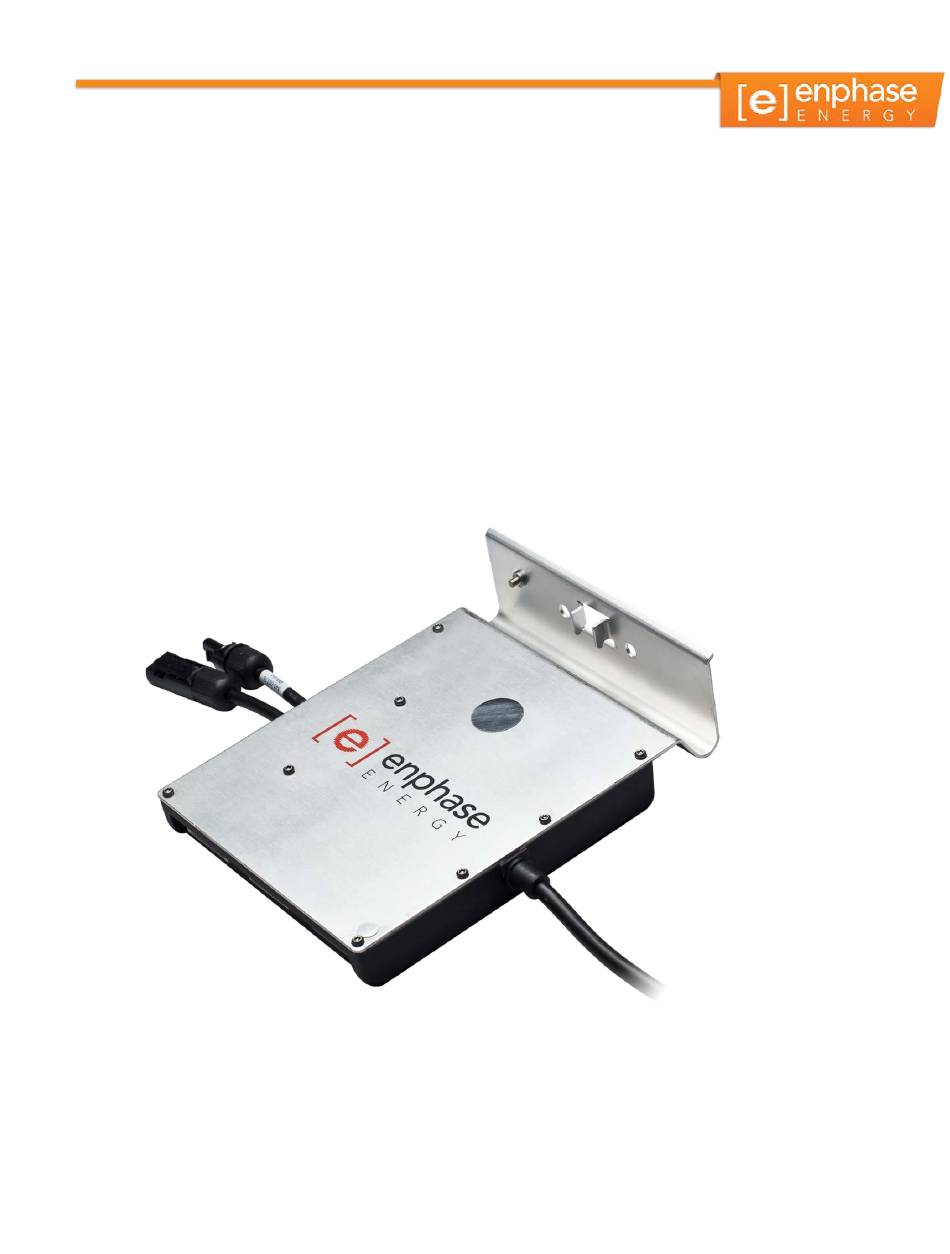

I NS TA L L A TI O N A N D O P E R A TI O N MA NU A L
Enphase M215-Z™
Zep Compatible Microinverter
141-00018, Rev 02

Advertisement

loading
Need help?

Need help?

Do you have a question about the M215 and is the answer not in the manual?

Questions and answers

Related Manuals for enphase M215

Summary of Contents for enphase M215

  • Page 1 I NS TA L L A TI O N A N D O P E R A TI O N MA NU A L Enphase M215-Z™ Zep Compatible Microinverter 141-00018, Rev 02...

  • Page 2: Contact Information

    Other Information Product information is subject to change without notice. All trademarks are recognized as the property of their respective owners. User documentation is updated frequently; Check the Enphase website (http://www.enphase.com/support/downloads) for the latest information. For warranty text refer to M215 25-year limited warranty.

  • Page 3: Table Of Contents

    Steps to perform on the roof: ......................11 Step 1 – Measure AC Voltage at the Electrical Utility Connection ............11 Step 2 – Join the M215-Z Microinverters and PV Modules..............12 Step 3 – Plan and Cut Engage Cable Lengths .................. 13 Step 4 –...
  • Page 4 Zep-Compatible M215-Z Installation and Operation Enphase Installation Map ........................29 Sample Wiring Diagram – M215/M215-Z, 240 VAC ................30 Sample Wiring Diagram – M215/M215-Z, 208 VAC ................31 Copyright  2012 Enphase Energy 141-00018 Rev 02...

  • Page 5: Important Safety Information

    This manual contains important instructions for use during installation and maintenance of the Enphase M215-Z™ Microinverter. To reduce the risk of electrical shock, and to ensure the safe installation and operation of the Enphase Microinverter, the following safety symbols appear throughout this document to indicate dangerous conditions and important safety instructions.

  • Page 6: The Enphase Microinverter System

    Zep-Compatible M215-Z Installation and Operation The Enphase Microinverter System Enphase and Zep have partnered to introduce the M215-Z Microinverter. The M215-Z features a redesigned mounting bracket that attaches to Zep Compatible™ solar modules to enable seamless integration of the Enphase Microinverter System with the Zep System.

  • Page 7: The M215-Z

    Each M215-Z is individually attached to one PV module in your array. This one-to-one configuration means that an individual Maximum Peak Power Point Tracker (MPPT) controls each PV module. This ensures that the maximum power available from each PV module is exported to the utility grid regardless of the performance of the other PV modules in the array.

  • Page 8: Enphase Microinverter Installation

    Doing so may cause death or injury to persons, or damage to equipment. Compatibility and Capacity The Enphase M215-Z Microinverters are electrically compatible with most 60-cell PV modules. For more information, see Technical Data on page 26 of this manual.

  • Page 9: Lightning Surge Suppression

    As the Enphase Limited Warranty does not cover “acts of God” such as lightning strikes, and since lightning strikes can occur anywhere, it is best practice to install surge protection as part of any solar installation. We recommend the following protection devices.

  • Page 10: Parts And Tools Required

    Handheld mirror (for viewing indicator lights on the undersides of the microinverters) Best Practice: Enphase Energy recommends that you design the solar array and familiarize yourself with the design, layout, and installation practices described in the Zep Installation manual. For details, go to www.zepsolar.com.

  • Page 11: Installation Procedure

    Zep-Compatible M215-Z Installation and Operation Installation Procedure Installing the Enphase Microinverter System involves several key steps. Each step listed below is detailed in the following pages. Steps to perform on the ground: Step 1 – Measure AC at the Electrical Utility Connection Step 2 –...

  • Page 12: Step 2 - Join The M215-Z Microinverters And Pv Modules

    Zep-Compatible M215-Z Installation and Operation Step 2 – Join the M215-Z Microinverters and PV Modules DANGER: Risk of Electrical Shock. Be aware that installation of this equipment includes risk of electric shock. Do not install the AC junction box without first removing AC power from the Enphase System.

  • Page 13: Step 3 - Plan And Cut Engage Cable Lengths

    Each Enphase Microinverter has a removable serial number label located on the mounting plate. Peel the removable serial number label from each Enphase Microinverter and affix it to the respective location on the Enphase installation map on page 29. You will need this later to map the system online.

  • Page 14: Step 5 - Connect The Microinverters To The Engage Cable

    AC connectors. Unused AC connectors are live when the system is energized. NOTE: To remove a sealing cap, you must use the Enphase disconnect tool or a #3 Phillips screwdriver. Sealing caps may not be reused.

  • Page 15: Step 6 - Secure The Drop Connectors To The Zep Frame

    Repeat for all microinverters in the branch circuit. Step 7 – Install the Ground Wire a. Route a continuous GEC, long enough to be connected to each M215-Z in the branch. b. Connect the GEC to the microinverter grounding lugs. Each grounding lug can accommodate a 6-8 AWG conductor.

  • Page 16: Step 8 - Terminate The Unused End Of The Engage Cable

    Hold the cap with an Enphase disconnect tool, or insert a #2 Phillips screwdriver. h. Use a 24mm (7/8 inch) wrench to tighten the hex nut until the latching mechanism is screwed all the way to the base.

  • Page 17: Step 9 - Install The Ac Branch Circuit Junction Box

    DANGER: Risk of Electrical Shock. Be aware that installation of this equipment includes risk of electric shock. Do not install the AC junction box without first removing AC power from the Enphase System. WARNING: Only use electrical system components approved for wet locations.

  • Page 18: Step 10 - Connect The Engage Cable To The Ac Junction Box

    Zep-Compatible M215-Z Installation and Operation Step 10 – Connect the Engage Cable to the AC Junction Box To connect the Engage cable to AC junction boxes, follow the steps below. a. Connect Engage Cable and continuous ground to the AC branch circuit junction box using an appropriate gland or strain relief fitting.

  • Page 19: Next Steps

    Each Enphase Microinverter has a removable serial number label located on the mounting plate. Peel the removable serial number label from each Enphase Microinverter and affix it to the respective location on the Enphase installation map on page 29. Keep a copy of the installation map for your records. Alternative: Create Your Own Map a.

  • Page 20: Commissioning And Operation

    The first units should be detected within 15 minutes but the entire system could take hours to detect. 4. The M215-Z has field adjustable voltage and frequency trip points. If adjustments are required by your local utility, the installer can use the Envoy to manage the Grid Profile after all microinverters have been detected.

  • Page 21: Build The Virtual Array

    Once the virtual array is built, Enlighten displays a graphic representation of the PV system showing detailed current and historical performance information. Go to http://www.enphase.com for more information about Enphase Enlighten software web-based monitoring and analysis. Copyright  2012 Enphase Energy 141-00018 Rev 02...

  • Page 22: Troubleshooting

    PV system does not operate correctly. WARNING: Do not attempt to repair the Enphase Microinverter; it contains no user-serviceable parts. If the microinverter fails, please contact Enphase customer service to obtain a return merchandise authorization (RMA) number and start the replacement process.

  • Page 23: Troubleshoot An Inoperable Microinverter

    PV module. WARNING: Always disconnect AC power before disconnecting the PV module wires from the Enphase Microinverter. The AC connector of the microinverter is suitable as a disconnecting means. WARNING: The Enphase Microinverters are powered by DC power from the PV modules.

  • Page 24: Disconnect A Microinverter From The Zep-Compatible Pv Module

    2. Disconnect the microinverter from the Engage Cable as follows: The Enphase AC connectors are tool-removable only. To disconnect a microinverter from the Engage Cable, insert the two large prongs of the disconnect tool (shown below) into the two holes in the drop connector.

  • Page 25: Install A Replacement Microinverter

    To Install Press Here, into the Zep Groove. Apply force with the palm of hand to properly snap the Enphase Connector Bracket into the module groove. Refer to Step 2 – Join the M215-Z Microinverters and PV Modules on page 12 for details.

  • Page 26: Technical Data

    Technical Data Technical Considerations The Enphase M215-Z Microinverters are electrically compatible with Zep Compatible 60-cell PV modules. Be sure to verify the voltage and current specifications of your PV module match those of the microinverter. WARNING: You must match the DC operating voltage range of the PV module with the allowable input voltage range of the Enphase Microinverter.

  • Page 27: Technical Specifications

    Zep-Compatible M215-Z Installation and Operation Technical Specifications Enphase M215-Z Microinverter Parameters Topic Unit Typical DC Parameters MPPT voltage range Operating range Maximum DC input voltage Minimum / Maximum start voltage Maximum DC input short circuit current Maximum DC input current 10.5...
  • Page 28 Zep-Compatible M215-Z Installation and Operation Enphase M215-Z Microinverter Parameters Topic Unit Typical Miscellaneous Parameters Maximum inverters per 20 amp AC branch circuit 240 VAC (split phase) 208 VAC (three phase) Peak inverter efficiency 96.3 CEC weighted efficiency 96.0 Static MPPT efficiency (weighted, ref EN 50530) 99.6...

  • Page 29: Enphase Installation Map

    Zep-Compatible M215-Z Installation and Operation Enphase Installation Map Copyright  2012 Enphase Energy 141-00018 Rev 02...
  • Page 30 Zep-Compatible M215-Z Installation and Operation Sample Wiring Diagram – M215/M215-Z, 240 VAC Copyright  2012 Enphase Energy 141-00018 Rev 02...
  • Page 31 Zep-Compatible M215-Z Installation and Operation Sample Wiring Diagram – M215/M215-Z, 208 VAC Copyright  2012 Enphase Energy 141-00018 Rev 02...
  • Page 32 Enphase Energy Inc. 1420 N. McDowell Boulevard Petaluma, CA 94954 www.enphase.com info@enphaseenergy.com support@enphaseenergy.com...

This manual is also suitable for:

M215-z
