User Manual
F014-P
FLOW RATE INDICATOR / TOTALIZER
WITH SCALED PULSE OUTPUT
Signal input:
pulse, NAMUR or coil flowmeter signal
Signal output:
one scaled pulse reflecting total
Options:
intrinsically safe
backlight
F-Series - Field mounted indicators for safe and hazardous areas
More info: www.fluidwell.com/fseries
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fluidwell F014-P
Summary of Contents for Fluidwell F014-P
- Page 1 FLOW RATE INDICATOR / TOTALIZER WITH SCALED PULSE OUTPUT Signal input: pulse, NAMUR or coil flowmeter signal Signal output: one scaled pulse reflecting total Options: intrinsically safe backlight F-Series - Field mounted indicators for safe and hazardous areas More info: www.fluidwell.com/fseries...
-
Page 2: Table Of Contents
Menu 6: Pulse output ..................... 17 5.4.7 Menu 7: Others ......................17 INSTALLATION........................18 Installation / environmental conditions ................18 Handling the F014-P enclosure ..................19 6.2.1 Identification........................19 6.2.2 Opening, assembling and closing the F-Series .............. 20 Mechanical installation....................22 6.3.1... - Page 3 Power supply ........................41 7.3.2 Sensor supply ......................... 41 Configuration examples Intrinsically Safe applications ........... 42 7.4.1 F014-P-(OT)-PC-(PX)-XI-(ZB) Battery powered - Ex ia IIC/IIIC ........42 7.4.2 F014-P-OT-PX-XI-(ZB) - Ex ia IIC/IIIC................42 7.4.3 F014-P-OT-PX-XI-ZB - Ex ia IIC/IIIC ................43 7.4.4...
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.03.xx... -
Page 5: Safety
F014-P User Manual SAFETY PERSONAL SAFETY ● Explosion hazard: Never open the unit when explosive atmosphere is present, and the unit is connected to a power supply or consuming device like the internal battery supply. ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. -
Page 6: Introduction

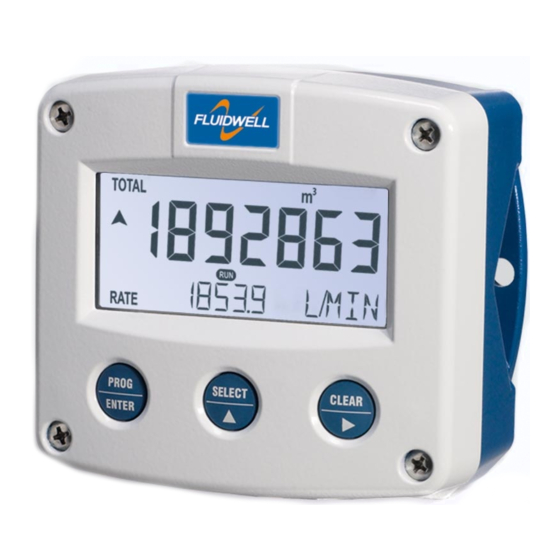

Fig. 1: The F014 This manual describes the daily use, configuration and installation of the F014-P with pulse input from a flowmeter and its available options. The following figure shows the F014-P used in a typical application. -
Page 7: Input
● Several options are available for powering the sensor. 3.2.3 OUTPUT ● A scalable pulse output is available from the F014-P, reflecting the passing of a programmable quantity. ● Several driving options are available, depending on the ordered Type. 3.2.4... -
Page 8: Operation
Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the F014-P. For this, the F-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. 4.1.1... -
Page 9: Backlight (Type Zb)
F014-P User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. -
Page 10: Internal Error
User Manual F014-P 4.4.2 INTERNAL ERROR When an internal error occurs, “ALARM” will be displayed. Press the SELECT key several times to display the 4-digit error code. Consult for more information. Section B: Troubleshooting [»50] Page 10 FW_F014-P_M_v0501-01_EN... -
Page 11: Configuration
INTRODUCTION This chapter describes how technicians can use configuration settings to configure the F-Series for optimal functionality. Configuration of the F014-P can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8]... -
Page 12: Changing Configuration Settings
User Manual F014-P 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 13: Setup Menu Overview
F014-P User Manual SETUP MENU OVERVIEW TOTAL DEFAULT UNIT L - m3 - kg - lb - GAL - USGAL - bbl - no unit DECIMALS 0 - 3 0.000010 - 9,999,999 K-FACTOR DECIMALS K-FACTOR 0 - 6 FLOW RATE... -
Page 14: Menu 2: Flow Rate
User Manual F014-P Example 2 ● The flowmeter generates 6.5231 pulses per gallon. ● The flow will be displayed using gallons ( 1.1: TOTAL > UNIT ● Enter the K-factor as 652310 at and 5 at 1.3: TOTAL > K-FACTOR 1.4: TOTAL >... -
Page 15: Menu 3: Display
255. The lower the number of pulses, the higher the power consumption of ● the F014-P will be (important for battery powered applications). For low frequency applications (below 10 Hz), do not program more ●... -
Page 16: Menu 4: Power Management
5.4.5 MENU 5: FLOWMETER FLOWMETER SIGNAL Selects the type of input sensor pickup / signal. The F014-P can process several types of input signal. The settings with LP are used to apply a built-in low-pass filter. FLOWMETER SELECTION CHARACTERISTICS TYPE OF SIGNAL... -
Page 17: Menu 6: Pulse Output
F014-P User Manual 5.4.6 MENU 6: PULSE OUTPUT PULSE OUTPUT PULSE WIDTH The pulse width determines the time that the output will be active, that is, the duration of the pulse. The minimum period between pulses is equal to the pulse length (a duty cycle of 50% or less). The pulse width is set in milliseconds in the range 0.001 –... -
Page 18: Installation
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F014-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 19: Handling The F014-P Enclosure
F014-P User Manual HANDLING THE F014-P ENCLOSURE 6.2.1 IDENTIFICATION The F-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. Refer to for identification and installation labels Section 7: Intrinsically safe applications [»36]... -
Page 20: Opening, Assembling And Closing The F-Series
User Manual F014-P Fig. 9: Example of F0-Series installation label (Safe Area - Type PM or PF) Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . The production SETUP 7.3: OTHERS >... - Page 21 F014-P User Manual Closing / replacing the cover 1. Re-insert all terminals to their original position. 2. Carefully position the front cover onto the back cover, making sure that the gasket falls nicely into the gutter of the back cover.
-
Page 22: Mechanical Installation
User Manual F014-P MECHANICAL INSTALLATION 6.3.1 MECHANICAL DIMENSIONS Aluminum and stainless steel enclosures 75 mm (2.95") 90 mm (3.54") 130 mm (5.12") 112 mm (4.40") 12mm 12mm 30 mm 30 mm 30mm 30mm M16 x 1,5 M16 x 1,5 M20 x 1,5... - Page 23 F014-P User Manual Non-metallic enclosures 75 mm (2.95") 130 mm (5.12") 112 mm (4.40") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
-
Page 24: Mounting The F-Series
User Manual F014-P 6.3.2 MOUNTING THE F-SERIES The enclosure can be installed by itself or with the aid of a mounting plate in the configurations shown below. When the product is installed on a wall or onto a meter, please use components and installation techniques that are suitable for the used materials. -
Page 25: Electrical Installation
● The wire screens shall be terminated at one side to prevent wire loops. Inside of the F014-P, the different common ground terminals are connected to each other. It is advised, as illustrated, to terminate the wire screens in the vicinity of the sensor and to insulate the wire screen with a shrink tube at the F014-P side. -
Page 26: Field Wiring Connections
F014-P Connecting Protective Earth to a non-metallic enclosure When the F014-P is supplied with a non-metal enclosure (e.g. plastic), the field mount enclosure meets the requirements of class 2 (double insulated). Therefore any incoming PE conductor can be terminated with an insulating end cap. -
Page 27: Power Supply
C22.2 No. 61010-1 / UL61010-1 / EN/IEC 61010-1. The F014-P can be powered from an external power supply. For Type PX or PD, an optional internal power supply is also available in the form of a lithium battery (Type PB). When both external and internal power supplies are available, the internal power supply is interrupted and will act as a backup supply. -
Page 28: Terminal Connectors Safe Area Applications - Type Px, Pd
To configure the sensor supply, see for details. Section 6.4.5: Sensor supply [»27] Coil The F014-P is suitable for use with flowmeters with a coil output signal. Two sensitivity levels can be selected with the SETUP-function ( SETUP 5.1: FLOWMETER > SIGNAL [»16]... - Page 29 Terminals 1 - 2: NPN signal input The F014-P is suitable for use with flowmeters with a PNP output signal. Terminal 3 offers 3.2V which has to be switched by the sensor to terminal 2 (SIGNAL). For a reliable pulse detection, the pulse amplitude has to go above 1.2V.
- Page 30 Terminals 1 - 2 and 6: Active signal Reed switch The F014-P is suitable for use with flowmeters with a reed switch. To avoid pulse bounce from the reed-switch, it is advised to select REED LP - low-pass filter ( SETUP 5.1: FLOWMETER >...
-
Page 31: Terminals 4-5: Power Supply - Type Px And Pd
TERMINALS 4-5: POWER SUPPLY - TYPE PX AND PD To power the F014-P a 8-30V DC (type PX) or 16-30V DC (type PD) power supply can be applied. Connect the "-" to terminal 4 and the "+" to terminal 5. -
Page 32: Terminal Connectors Safe Area Applications - Type Pf, Pm
Overview of terminal connectors - Type PF or PM 6.6.1 TERMINALS GND-1-2: POWER SUPPLY To power the F014-P with a power supply option of type PF or type PM, connect a suitable power supply to the terminals as indicated in below table. Note: NC is not connected. -
Page 33: Terminals 3-4: Pulse Output
To configure the sensor supply, see for details. Section 6.4.5: Sensor supply [»27] Coil The F014-P is suitable for use with flowmeters with a coil output signal. Two sensitivity levels can be selected with the SETUP-function ( SETUP 5.1: FLOWMETER > SIGNAL [»16] ●... - Page 34 Terminals 5 - 6: NPN signal input The F014-P is suitable for use with flowmeters with a PNP output signal. For a reliable pulse detection, the pulse amplitude has to go above 1.2 V. Signal setting PNP-LP employs a low-pass...
- Page 35 Terminals 5 - 7: Active signal Reed switch The F014-P is suitable for use with flowmeters with a reed switch. To avoid pulse bounce from the reed switch, it is advised to select REED LP - low-pass filter ( SETUP 5.1: FLOWMETER >...
-
Page 36: Intrinsically Safe Applications
User Manual F014-P INTRINSICALLY SAFE APPLICATIONS IDENTIFICATION The F0-Series can be supplied as suitable for Safe Area or Hazardous Area. Suitability for Intrinsic Safety is indicated in the model Type XI. If Type XI is not indicated your unit is not suitable for Intrinsically Safe applications! -
Page 37: Electrical Installation In Hazardous Areas
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F014-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 38: Electrical Data - Control Drawing
User Manual F014-P 7.2.2 ELECTRICAL DATA - CONTROL DRAWING trol Dr ing F -P-XI Ce t r ific t a ion F0-SERIES – Type -XI T RMINAL CONNE CTORS F0 ERIE c mm on ground Ce tif r ica e number: CSA.08.2059461... -
Page 39: Installations Based On Atex Or Iecex Certificate
F014-P User Manual 7.2.3 INSTALLATIONS BASED ON ATEX OR IECEX CERTIFICATE Installation instructions ● For installation under ATEX directive: this Intrinsically Safe device must be installed in accordance with ATEX directive 2014/34/EU and product certificate KEMA 03ATEX1168 X. ● For installation under IECEx scheme: this Intrinsically Safe device must be installed in accordance with product certificate IECEx DEK 08.0006X. -
Page 40: Electrical Data - Annex 1
User Manual F014-P 7.2.4 ELECTRICAL DATA - ANNEX 1 Annex 1 ( mo el p s eci fic) to prod uct certif c i ates KEMA 03ATEX1168 X, IECEx DEK 08. 00 6 X Model F0..-P-XI Int nal supply for use w... -
Page 41: Terminal Connectors Hazardous Area Applications
7.3.1 POWER SUPPLY The F014-P can be powered from an external power supply. For Types PX or PD, an optional internal power supply is also available in the form of an intrinsically safe lithium primary battery (Type PC). When both external and internal power supplies are available, the internal power supply is interrupted and will serve as a backup supply. -
Page 42: Configuration Examples Intrinsically Safe Applications
Sensor supply voltage on Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F014-P, the battery will be disabled automatically until the power is disconnected 7.4.2 F014-P-OT-PX-XI-(ZB) - EX IA IIC/IIIC Fig. 39:... -
Page 43: F014-P-Ot-Px-Xi-Zb - Ex Ia Iic/Iiic
F014-P-OT-PX-XI-ZB - Ex ia IIC/IIIC - Intrinsically Safe application Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F014-P, the battery will be disabled automatically until the power is disconnected. 7.4.4 F014-P-OT-PD-XI-ZB - EX IA IIC/IIIC Fig. 41:... -
Page 44: Maintenance
Personnel must read and understand this Operating Manual before carrying out its instructions. ● The F014-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. -
Page 45: Battery Replacement
F014-P User Manual BATTERY REPLACEMENT 8.3.1 SAFETY INSTRUCTIONS ● Handle the battery with the utmost care to prevent a short circuit and damage. A mistreated battery can become unsafe. Unsafe batteries can cause serious injury. Do not recharge, crush, disassemble, incinerate, heat above its rated temperature or expose the contents to water. -
Page 46: Battery Replacement Procedure
User Manual F014-P 8.3.2 BATTERY REPLACEMENT PROCEDURE Before starting the battery replacement procedure, make sure that the marking on the new battery corresponds with the type of installation, as shown in Section 8.3.1: Safety instructions [»45] When used in Intrinsically Safe applications - Type PC: The hook-and-loop fastener that holds the battery is antistatic and thus fit for Hazardous Area use. -
Page 47: Appendix A - Technical Specification
F014-P User Manual APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 7 with height 17mm (0.67”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) - Page 48 User Manual F014-P POWER REQUIREMENTS Type PB SAFE AREA ONLY - Standard lithium primary battery. Life up to 5 years. Type PC INTRINSICALLY SAFE - Certified lithium primary battery. Life up to 5 years. Type PD 16-30 V DC. Max power consumption 1 W.
-
Page 49: Input
F014-P User Manual HAZARDOUS AREA (TYPE XI OR XF) Intrinsically safe ATEX appr. KEMA 05ATEX1168 X IECEx appr. IECEx KEM 08.0006X Type XI II 1 G Ex ia IIC T4 Ga Ex ia IIC T4 Ga II 1 D Ex ia IIIC T 100ºC Da... -
Page 50: Appendix B - Troubleshooting
APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the F014-P. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). Press the SELECT key several times to display the 4-digit error code shown in Table 2. -
Page 51: Appendix C - Legal Information
DECLARATIONS OF CONFORMITY EU De cla tio n of Conformi Fluidwell F0‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the F0 ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 52 User Manual F014-P LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: TOTAL UNIT DECIMALS K-FACTOR DECIMALS K-FACTOR FLOW RATE UNIT TIME UNIT DECIMALS K-FACTOR DECIMALS K-FACTOR CALCULATION CUT-OFF DISPLAY FUNCTION total BACKLIGHT BACKLIGHT BRIGHTNESS POWER MANAGEMENT LCD UPDATE 1 sec...
- Page 53 F014-P User Manual NOTES FW_F014-P_M_v0501-01_EN Page 53...
- Page 54 User Manual F014-P Page 54 FW_F014-P_M_v0501-01_EN...
- Page 55 F014-P User Manual FW_F014-P_M_v0501-01_EN Page 55...
- Page 56 Fluidwell bv P.O. Box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives the Netherlands the Netherlands © Copyright 2022 - FW_F014-P_M_v0501-01_EN...
