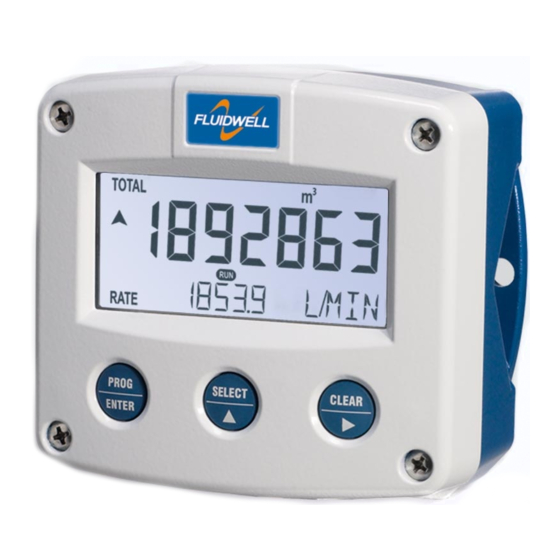

Fluidwell F014-P Manual

Flowrate indicator / totalizer with scaled pulse output
Hide thumbs Also See for F014-P:
Table of Contents

Advertisement

Quick Links

Download this manual

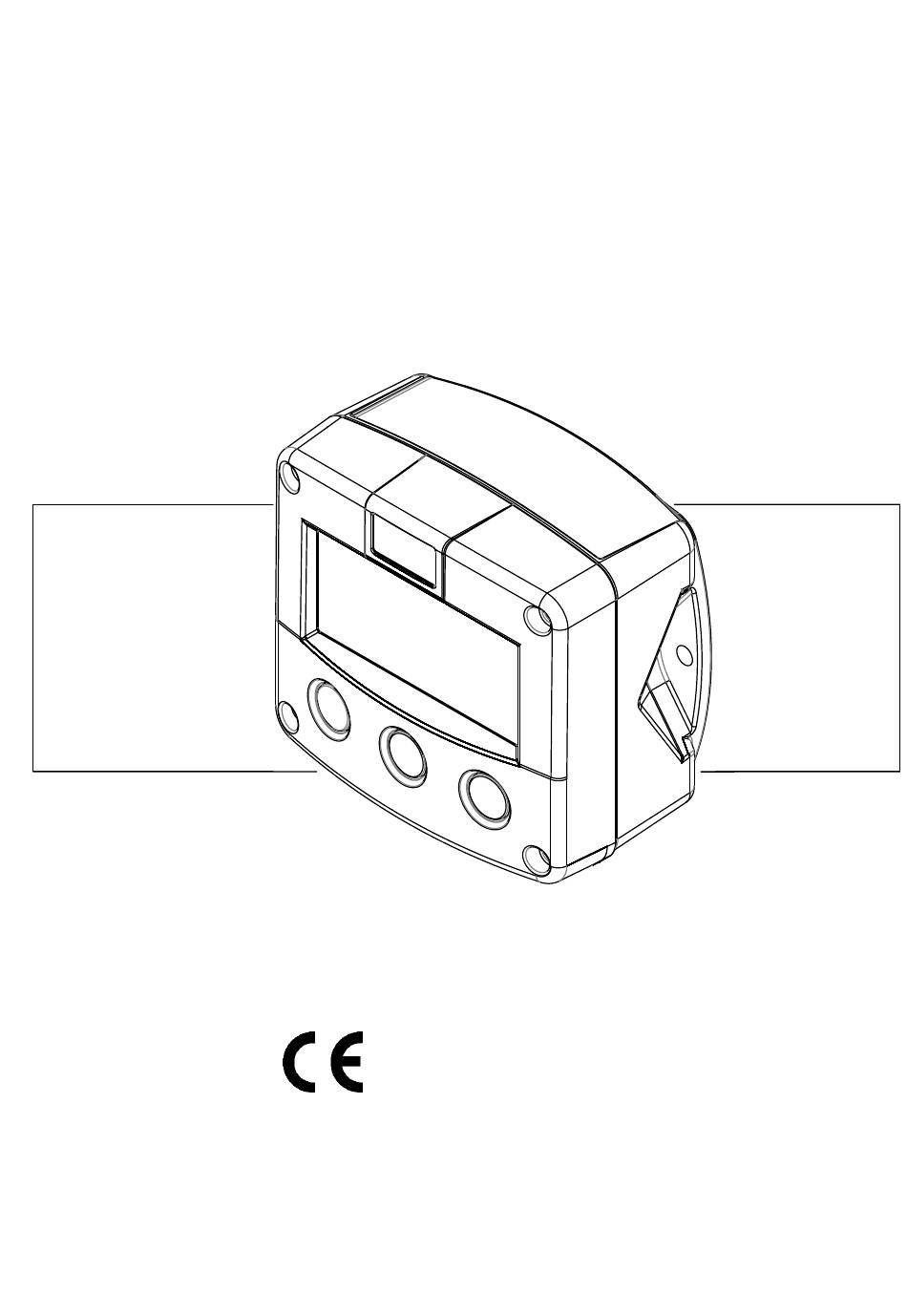

F014-P
FLOWRATE INDICATOR / TOTALIZER
WITH SCALED PULSE OUTPUT
Signal input flowmeter: pulse, Namur and coil
Output: one scaled pulse ref. accumulated total
Options: Intrinsically Safe
F-Series - Field mounted indicators for safe and hazardous areas.
More info: www.fluidwell.com/fseries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F014-P and is the answer not in the manual?

Questions and answers

Related Manuals for Fluidwell F014-P

Summary of Contents for Fluidwell F014-P

  • Page 1 F014-P FLOWRATE INDICATOR / TOTALIZER WITH SCALED PULSE OUTPUT Signal input flowmeter: pulse, Namur and coil Output: one scaled pulse ref. accumulated total Options: Intrinsically Safe F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...

  • Page 2: Safety Instructions

    Compatibility). • Do connect a proper grounding to the aluminum casing as indicated if the F014-P has been supplied with the 115-230V AC power-supply type PM. The green / yellow wire between the back-casing and removable terminal-block may never be removed.

  • Page 3: About The Operation Manual

    This operation manual describes the standard F014-P as well as most of the options available. For additional information, please contact your supplier. A hazardous situation may occur if the F014-P is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms: A "warning !"...

  • Page 4: Table Of Contents

    General information and instructions ..................29 Terminal connectors Intrinsically Safe applications .............. 30 Configuration examples Intrinsically Safe applications ............31 5.3.1 F014-P-(OT)-PC-(PX)-XI-(ZB) Battery powered (IIA, IIB, IIC) ..........31 5.3.2 F014-P-OT-PX-XI-ZB (IIA, IIB, IIC) ..................32 5.3.3 F014-P-OT-PX-XI-(ZB) (IIA, IIB, IIC) ..................32 5.3.4...

  • Page 5: Introduction

    Fig. 1: Typical application for the F014-P. Configuration of the F014-P The F014-P has been designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F014-P according to your specific requirements.

  • Page 6: Operational

    Take careful notice of the "Safety rules, instructions and precautionary measures" in the front of this manual. This chapter describes the daily use of the F014-P. This instruction is meant for users / operators. CONTROL PANEL The following keys are available: Fig.

  • Page 7: Operator Information And Functions

    In general, the F014-P will always function at Operator level. The information displayed is dependent upon the SETUP-settings. The signal from the connected sensor is processed by the F014-P in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again.

  • Page 8: Configuration

    "Safety rules, instructions and precautionary measures" in the front of this manual. • The F014-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. •...
  • Page 9 After selecting a sub-function, the next main function is selected by scrolling through all "active" sub- functions (e.g. 1, 11, 12, 13, 14, 1, 2, 3, 31 etc.). The “CLEAR” button can be used to jump a step back if you missed the desired function. FW-F014-P-M_v0402_05_EN.docx...
  • Page 10 To return to OPERATOR-level: Press the PROG/ENTER key for 3 seconds. In order to return to the operator level, PROG will have to be pressed for three seconds. Also, when no keys are pressed for 2 minutes, SETUP will be left automatically. FW-F014-P-M_v0402_05_EN.docx...

  • Page 11: Overview Functions Setup Level

    PULSE output PULSE WIDTH 0.001 - 9.999 sec DECIMALS 0 - 1 - 2 - 3 IMPULSE PER X-quantity OTHERS TYPE / MODEL F014-P SOFTWARE VERSION 03.xx.xx SERIAL NO. xxxxxxx PASS CODE 0000 - 9999 TAGNUMBER 0000000 - 9999999 FW-F014-P-M_v0402_05_EN.docx...

  • Page 12: Explanation Of Setup-Menu 1 - Total

    Please note that this setting influences the accuracy of the K-factor indirectly (i.e. the position of the decimal point and thus the value given). This setting has NO influence on the displayed number of digits for total (SETUP 12)! FW-F014-P-M_v0402_05_EN.docx...

  • Page 13: Explanation Of Setup-Menu 2 - Flowrate

    The maximum value is 255 pulses. • the lower the number of pulses, the higher the power consumption of the F014-P will be (important for battery powered applications). • for low frequency applications (below 10Hz): do not program more than 10 pulses else the update time will be very slow.

  • Page 14: Explanation Of Setup-Menu 3 - Display

    When used with the internal battery option, the user can expect reliable measurement over a long period of time. The F014-P has several smart power management functions to extend the battery life time significantly. Two of these functions are available.

  • Page 15: Explanation Of Setup-Menu 5 - Flowmeter

    3.2.7 EXPLANATION OF SETUP-MENU 5 - FLOWMETER The F014-P is able to handle several types of input signal. The type of flowmeter pickup / signal is selected with SETUP 51. Read also par. 4.4.2. or 4.4.3 - flowmeter input terminals.

  • Page 16: Explanation Of Setup-Menu 7 - Others

    This protection is disabled with value 0000 (zero). Up to and including 4 digits can be programmed, for example 1234. TAGNUMBER For identification of the F014-P and communication purposes, a unique tag number of maximum 7 digits can be entered. FW-F014-P-M_v0402_05_EN.docx...

  • Page 17: Installation

    Operating Manual before carrying out its instructions. • The F014-P may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed.

  • Page 18: Dimensions- Enclosure

    1/2"NPT M20 x 1,5 0.12" 0.12" M20 x 1,5 3x 1/2"NPT 25mm 25mm 15 15 M20 x 1,5 M20 x 1,5 4x M20 x 1,5 29.1 mm (1.15”) 115 mm (4.53”) 31 mm (1.22”) Fig. 5: Dimensions Aluminum enclosures. FW-F014-P-M_v0402_05_EN.docx...
  • Page 19 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12” 0.12” D=22mm (0.866") 3x D=22mm (0.866”) 29.1 mm (1.15”) 115 mm (4.53”) 31 mm (1.22”) Fig. 6: Dimensions GRP enclosures. FW-F014-P-M_v0402_05_EN.docx...

  • Page 20: Installing The Hardware

    This F014-P must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility). • Do ground the aluminum casing properly as indicated, if the F014-P has been supplied with the 115-230V AC power-supply type PM. The green / yellow wire between the back- casing and removable terminal-block may never be removed.

  • Page 21: Terminal Connectors With Power Supply - Type : Pb / Pd / Px

    REMARKS: TERMINAL CONNECTORS: Terminals 1-3; Flowmeter input: Three basic types of flowmeter signals can be connected to the F014-P: pulse, active pulse or coil. The screen of the signal wire must be connected to the common ground terminal The input signal type has to be selected with the correct SETUP-function (read chapter 3.2.3).
  • Page 22 Page 21 Pulse-signal NPN / NPN-LP: The F014-P is suitable for use with flowmeters which have a NPN output signal. For reliable pulse detection, the pulse amplitude has to go below 1.2V. Signal setting NPN-LP employs a low-pass signal noise filter, which limits the maximum input frequency (read chapter 3.2.3).
  • Page 23 Fig. 13: Terminal connections - Reed-switch signal input. NAMUR-signal: The F014-P is suitable for flowmeters with an NAMUR signal. The standard F014-P is not able to power the NAMUR sensor, as an external power supply for the sensor is required. However, a 8.2V sensor supply voltage (terminal 6) can be provided with type PD.
  • Page 24 Terminal 4-5: POWER SUPPLY UNIT - TYPE PD / PX: To power the F014-P an internal battery can be used (type PB) and / or an external DC power supply of 8-30V DC (type PX) or 16-30V DC (type PD).

  • Page 25: Terminal Connectors With Power Supply - Type : Pf / Pm

    1.2, 3.2, 8.2, 12 or 24V DC (max. 400mA@24V). The voltage is selected with the three switches inside the F014-P. • Be sure that all the leads to the terminals are disconnected from the F014-P when the internal plastic protection cover has been removed ! •...
  • Page 26 Fig. 19: Terminal connections - Active transistor output (OA). Type OR: An isolated mechanical relay output is available with this option. Max. switch power 240V 0,5A. (Requires power supply type PF / PM). Fig. 20: Terminal connections - Mechanic relay output (OR). FW-F014-P-M_v0402_05_EN.docx...
  • Page 27 Page 26 Terminals 5-7; Flowmeter input: Three basic types of flowmeter signals can be connected to the F014-P: pulse, active pulse or coil. The screen of the signal wire must be connected to the common ground terminal The input signal type has to be selected with the correct SETUP-function (read chapter 3.2.3).
  • Page 28 Page 27 Pulse-signal PNP / PNP-LP: The F014-P is suitable for use with flowmeters which have a PNP output signal. For a reliable pulse detection, the pulse amplitude has to go above 1.2V. Signal setting PNP-LP employs a low-pass signal noise filter, which limits the maximum input frequency (read chapter 3.2.3).
  • Page 29 Page 28 NAMUR-signal: The F014-P is suitable for flowmeters with an NAMUR signal. Terminal 7 can provide a 8.2V sensor supply voltage (please read section “sensor supply”). Fig. 26: Terminal connections - NAMUR signal input. FW-F014-P-M_v0402_05_EN.docx...

  • Page 30: Intrinsically Safe Applications

    Safety instructions • Certificates, safety values, control drawing and declaration of compliance can be found in the document named: “Fluidwell F0..-..-XI - Documentation for Intrinsic Safety” • For installation under ATEX directive: this intrinsically safe device must be installed in accordance with the ATEX directive 94/9/EC and the product certificate KEMA 05ATEX1168 X.

  • Page 31: Terminal Connectors Intrinsically Safe Applications

    FWCD-0003. Tamb CSA Certificate nr: CSA.08.2059461 – FM Project ID: 3033306 -40°C ... +70°C Made in Veghel, The Netherlands by Fluidwell bv -40°F ... +158°F KEMA 05ATEX1168 X Battery powered applications: II 1 G Ex ia IIC T4 Replace with certified II 1 D Ex iaD 20 IP 65 / 67 T 100°C...

  • Page 32: Configuration Examples Intrinsically Safe Applications

    Sensor supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F014-P, the battery will be disabled automatically until the power is disconnected. FW-F014-P-M_v0402_05_EN.docx...

  • Page 33: F014-P-Ot-Px-Xi-Zb (Iia, Iib, Iic)

    Sensor supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC. Please note: Type PX may be used in combination with the battery (Type PC). PX will power the F014-P, the battery will be disabled automatically until the power is disconnected. 5.3.3 F014-P-OT-PX-XI-(ZB) (IIA, IIB, IIC) Fig.

  • Page 34: F014-P-Ot-Pd-Xi-Zb (Iia, Iib, Iic)

    Sensor supply voltage for pulse type P: Terminal 3: 1.2-3.2V DC; Terminal 6: 8.2V DC. Please note: Type PD may be used in combination with the battery (Type PC). PD will power the F014-P, the battery will be disabled automatically until the power is disconnected. FW-F014-P-M_v0402_05_EN.docx...

  • Page 35: Battery Replacement

    8. If necessary, get access to the setup menu and make any adjustments to obtain the correct settings. DISPOSAL OF BATTERIES • Batteries pose an environmental hazard. • Do not dispose of as general waste or incinerate. • Return used batteries to a recycling point. FW-F014-P-M_v0402_05_EN.docx...

  • Page 36: Maintenance

    (above 90% annual mean). It is the users responsibility to take all precautions to dehumidify the internal atmosphere of the F014-P in such a way that no condensation will occur, for example by placing dry silica-gel sachet in the casing just before closing it.

  • Page 37: Technical Specification

    Flat bottom - no drilling. ABS enclosure Type HS Silicone free ABS enclosure with EPDM and PE gaskets. UV-resistant polyester keypad. (no drilling) Operating temperature Operational -40°C to +80°C (-40°F to +178°F). Intrinsically Safe -40°C to +70°C (-40°F to +158°F). FW-F014-P-M_v0402_05_EN.docx...
  • Page 38 Class I zone 0 AEx ia IIC T4 Explosion proof ATEX approval ref.: <EX> II 2 GD EEx d IIB T5. Weight appr. 15kg. Type XF Dimensions of enclosure: 350 x 250 x 200mm (13.7” x 9.9” x 7.9”) LxHxD. FW-F014-P-M_v0402_05_EN.docx...
  • Page 39 Digits 7 digits. Unit mL, L, m3, Gallons, KG, Ton, lb, bl, cf, RND, ft3, scf, Nm3, Nl, igal - no unit. Decimals 0 - 1 - 2 or 3. Time unit /sec - /min - /hr - /day. FW-F014-P-M_v0402_05_EN.docx...

  • Page 40: Problem Solving

    Page 39 PROBLEM SOLVING In this appendix, several problems are included that can occur when the F014-P is going to be installed or while it is in operation. Flowrate displays "0 / zero" while there is flow (total is counting): Check: •...

  • Page 41: Declaration Of Conformity

    DECLARATION OF CONFORMITY...

  • Page 42: Control Drawing

    Page 41 CONTROL DRAWING FW-F014-P-M_v0402_05_EN.docx...

  • Page 43: Index Of This Manual

    12, 13 software version decimals k-factor subfunction measuring unit terminal connectors 20, 24 time unit total functional description decimals hardware version decimals k-factor high alarm output k-factor 11, 12 intrinsic safety measuring unit Intrinsic safety 29, 30, 35 FW-F014-P-M_v0402_05_EN.docx...
  • Page 44 _ _ _ _ _ _ _ 74 pass code 0000 75 tagnumber 0000000 Fluidwell BV PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright: © 2019- FW-F014-P-M_v0402_05_EN.docx...
