Installation & Mounting - Code 3 SuperVisorTL Installation & Operation Manual

WARNING!
!
Mounting Hardware - All mounting hardware is packed in a small box inside the main carton. There are four brackets used to mount the
SuperVisorTL™ to the vehicle. These are discussed in detail later.

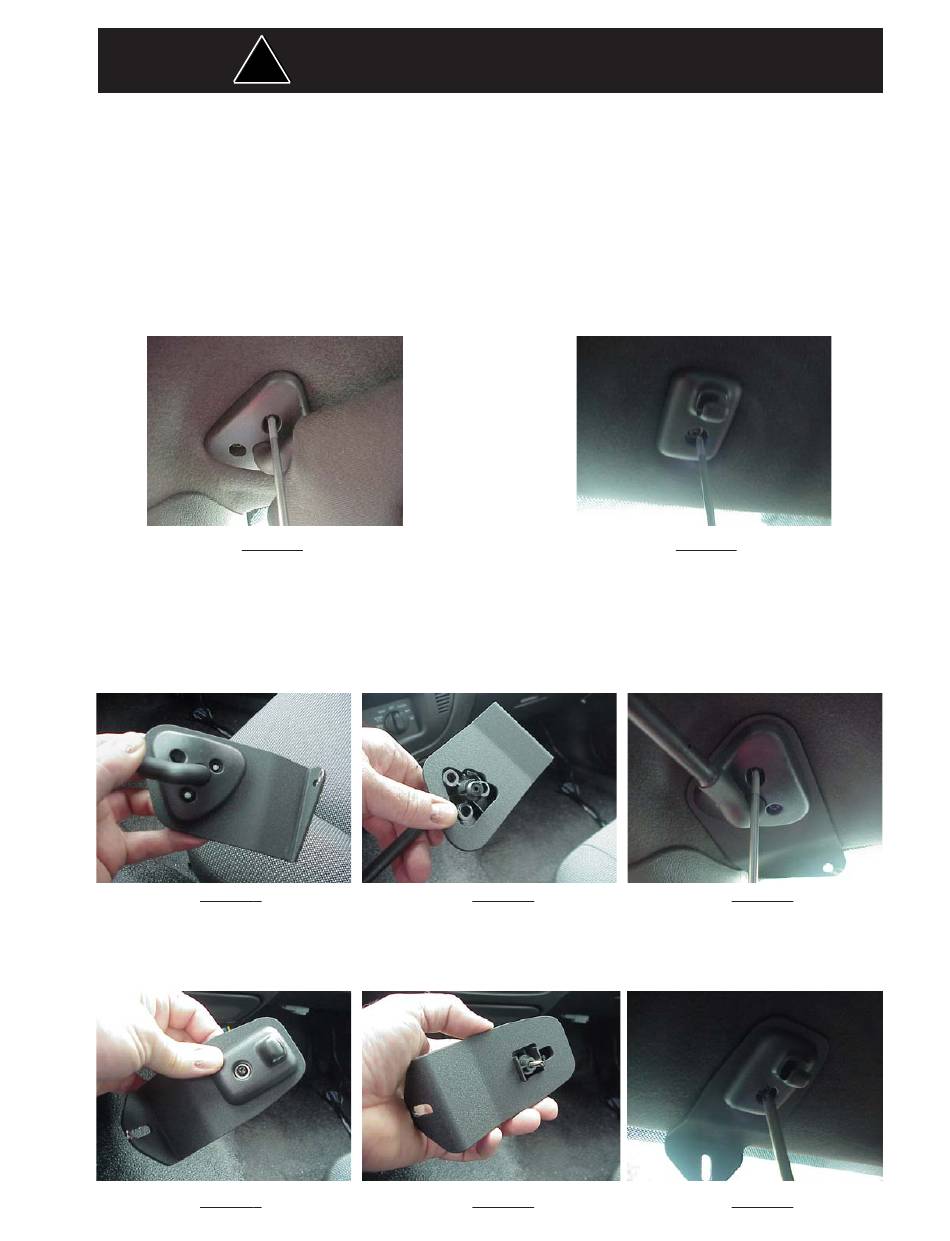

Step 1-Removing Sun Visors
Begin the installation by removing the Crown Victoria's driver and passenger sun visors. Identify each visor with tape or other marking
to indicate the driver from the passenger side unit; they are not identical. There are three screws that hold the pivotal arm of the sun
visor to the headliner. Remove each screw using a small #20 torx screwdriver starting with the lower screw as shown in Figure 1.
Then unclip the sun visor and rotate it over to expose and remove the two upper screws.
Step 2 Remove the visor retaining clips
Remove the sun visor retaining clips, unscrew the single torx screw holding it in place as shown in Figure 2.
FIGURE 1
Step 3 Attach the pivot arm brackets
Attach the outer brackets that are supplied noting the difference between passenger and driver side brackets (see Figure 3 -Driver
side shown). Rotate the Pivot Arm on the Driver's side sun visor and verify the orientation of the Outer Bracket as shown in Figure 4.
Position the Driver's Side pivot arm and attach the first Torx screw as shown in Figure 5 . Next, move the sun visor over in order to gain
access to install the other two Torx screws. Repeat this operation for the Passenger Side pivot arm and outer bracket. Do not tighten
any of the screws at this time.
3
FIGURE
Step 4 Attach brackets to sun visor retaining clips
Place the inner bracket on the retaining clip as shown in Figures 6 and 7. Attach the inner bracket and retaining clip to the headliner as
illustrated in Figure 8. Do not tighten these screws at this time.
6
FIGURE
Utilizing non-factory supplied screws and/or mounting brackets and/or the improper number
of screws may result in loss of warranty coverage on the equipment.
FIGURE
FIGURE
3
FIGURE 2
4
7
5
FIGURE
8
FIGURE
