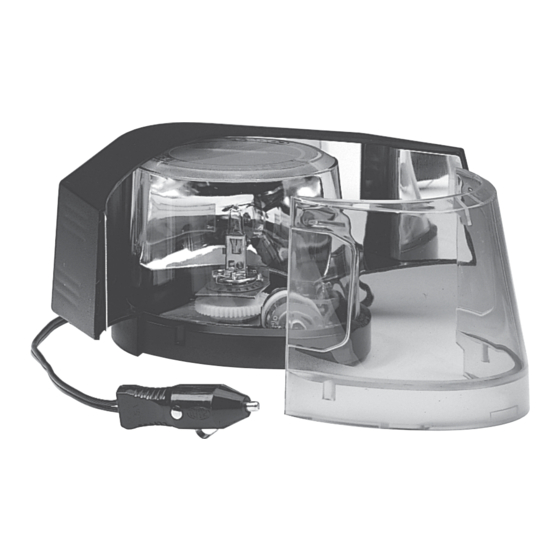

Code 3 DashLaser 660 Installation & Operation Manual

Warning device
Hide thumbs
Table of Contents

Advertisement

Quick Links

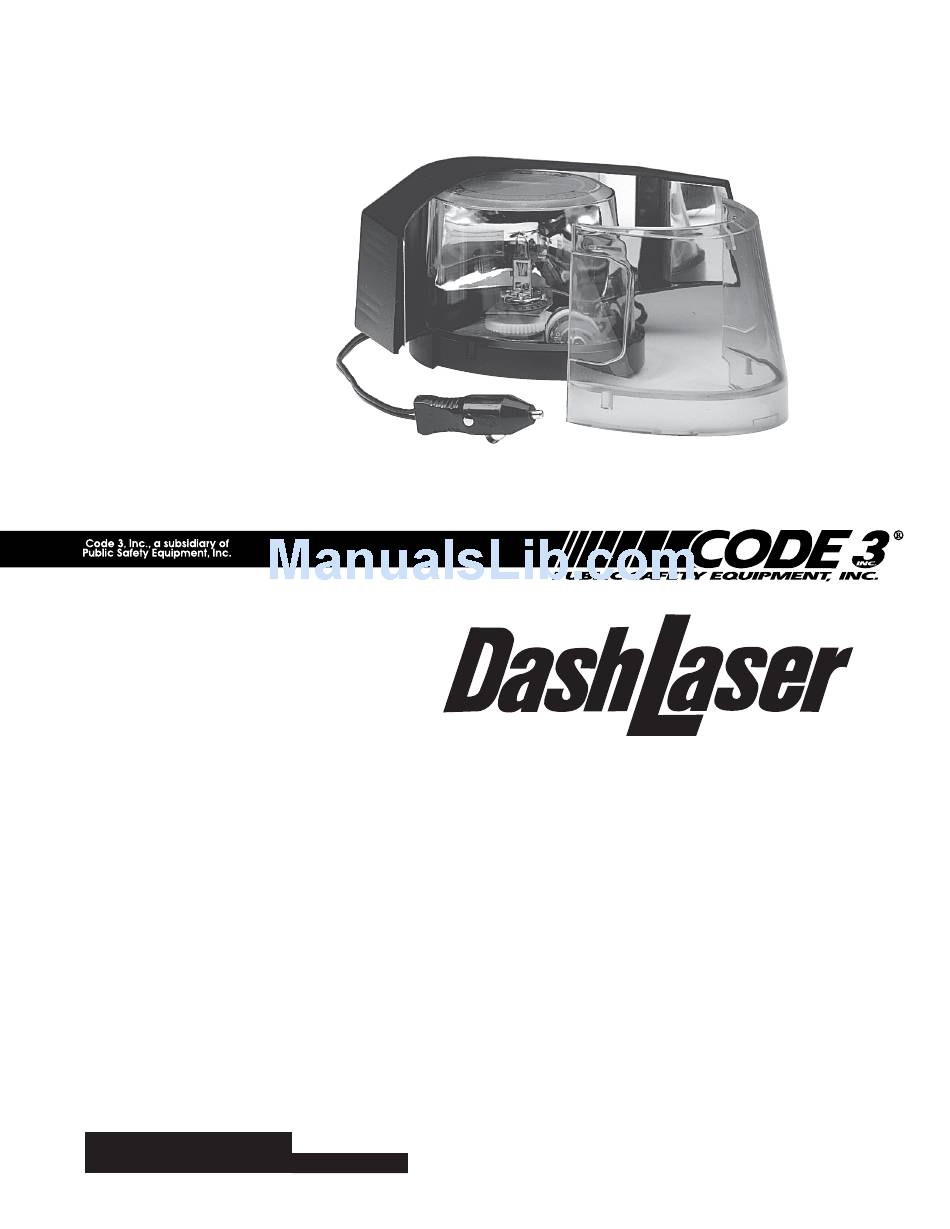

INSTALLATION
& OPERATION
MANUAL
MODEL 660
Patent Number 4,931,768
IMPORTANT :
Contents:
Introduction (with warnings)................................ 2
Unpacking & Pre-Installation .............................. 2
Installation & Mounting ....................................... 3
Magnetic MountIing ............................................ 3
Direct Wiring ....................................................... 6
Maintenance ....................................................... 7
Options & Specifications .................................... 7
Warnings for Lighting Products ..................... 9-10
Troubleshooting ................................................ 11
Warranty ........................................................... 12
Read all instructions and warnings before installing and using.
INSTALLER:
This manual must be delivered to the end user of this equipment.
PORTABLE WARNING LIGHT
Roof Mounting ............................................... 4
Interior Mounting ........................................... 4
Permanent Mounting .................................... 5
Pole or Stanchion Mounting ......................... 6
®
MODEL 660

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DashLaser 660 and is the answer not in the manual?

Questions and answers

Related Manuals for Code 3 DashLaser 660

Summary of Contents for Code 3 DashLaser 660

  • Page 1: Table Of Contents

    INSTALLATION & OPERATION MANUAL MODEL 660 Patent Number 4,931,768 ® MODEL 660 PORTABLE WARNING LIGHT Contents: Introduction (with warnings)........ 2 Unpacking & Pre-Installation ......2 Installation & Mounting ........3 Magnetic MountIing ..........3 Roof Mounting ..........4 Interior Mounting ........... 4 Permanent Mounting ........

  • Page 2: Introduction (With Warnings)

    Code 3, Inc. , assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of this warning device and the safe operation of the emergency vehicle.

  • Page 3: Installation & Mounting

    Operation ® The DashLaser is designed to operate on a 12-volt DC system, with a 7-15 amp fuse. To operate your DashLaser, just plug it into a cigarette lighter, rotate and push with reasonable, moderate force which insures the best possible connec- tion.

  • Page 4: Roof Mounting

    Roof Mounting 1. Park the vehicle on level ground. Use a carpenter's spirit level to be sure. ® 2. Place your DashLaser , without the blinder, in the center of the roof. 3. Using a spirit level on the top of the dome, carefully move the device to where it is level (do not slide as it could scratch the paint).

  • Page 5: Permanent Mounting

    Removing the Adhesive Pad WINDSHIELD 1. Heat the adhesive area from the opposite side with a hot air paint stripper or high-power hair dryer. DASHLASER DASH 2. Carefully pry off with a wide flat head screwdriver or stiff putty knife. ROTATE TETHER CORD SCREWDRIVER...

  • Page 6: Pole Or Stanchion Mounting

    PLUMBING HARDWARE ELECTRICAL CONDUIT HARDWARE Tether Cord MAGNET ACTS AS SPACER FIGURE 9 Pole or Stanchion Mounting ® The mounting kit can be used to mount the DashLaser to a 1/2" or 3/4" pipe by using standard electrical (1/2") or plumbing hardware (see illustrations).

  • Page 7: Maintenance

    ® The DashLaser requires very little routine maintenance. Occasional cleaning of the dome and reflector is all that is necessary to maintain maximum light output. Use plain water and a soft cloth, or Code 3 ® polish and very soft paper towel or facial tissue. Since plastic scratches easily, we recommend cleaning only when necessary.

  • Page 8: Parts List (Replacement Parts/Exploded View)

    ® DashLaser Parts List (see illustration) Ref No. Description Part No. Qty. Lens - Amber T01554 - Red T01555 - Blue T01556 - Clear T01553 - Green T01557 PSE DashLight Assembly S18107 Reflector Assembly S96824 Motor Plate Assembly S96821 Retaining Washer T00928 Magnet T01587...

  • Page 9: Warnings For Lighting Products

    WARNINGS FOR LIGHTING PRODUCTS IMPORTANT : INTRODUCTION The use of this or any warning device does not insure that all drivers can or will observe or react to an emer- gency warning signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic lanes.
  • Page 10 3) As with any magnetically-mounted warning device, its use on the exterior of a moving vehicle is at the sole discretion and responsibility of the user. Magnetic mount products provides a secure, temporary installation in most circumstances and is recom- mended for stationary use only.

  • Page 11: Troubleshooting

    Troubleshooting CAUSE PROBLEM REMEDY Light is not lit and the reflector is No power at lighter plug Check ignition and fuse. Try not turning another vehicle Damaged or defective cordset Repair or return to P.S.E. Reflector is turning but the light Lamp is burned out Replace lamp.

  • Page 12: Warranty

    *Code 3, Inc. reserves the right to repair or replace at its discretion. Code 3, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products return to sender after the service has been rendered.
