Installation and Mounting

Before installation, examine the LED heads for transit damage. Do not use damaged or broken parts.
IMPORTANT! This unit is a safety device and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.

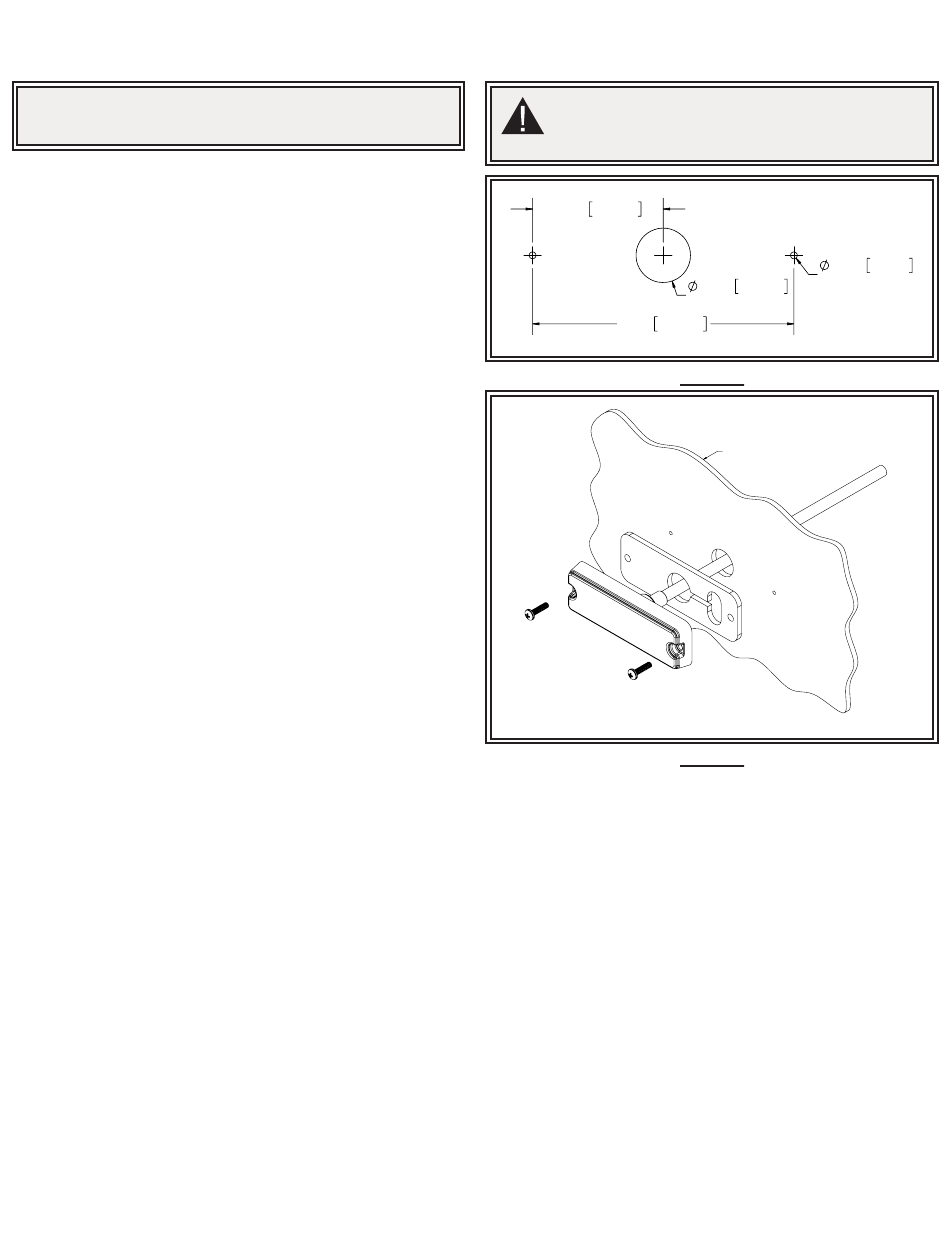

Step 1. Mark three points 1.5 in apart on mounting surface. See
Figure 1.
Step 2. Drill two outer holes with 5/64 in drill bit.
Step 3. Drill center hole to 5/8 in.
Step 4. Feed wires through center hole.
Step 5. Use provided screws to mount light to surface in two outer
holes.
NOTE: DO NOT MAKE THE HOLES IN THE LENS LARGER,
OR USE LARGER HARDWARE THAN WHAT IS PROVIDED!
DAMAGE TO SEAL WILL RESULT!
CAUTION!
When drilling into any vehicle surface, make sure that the
area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged.
1.50in 38.1mm
3.00in 76.2mm
0.08in 2.0mm
DRILL
0.63in 15.9mm
DRILL
Figure 1
MOUNTING SURFACE
Figure 2
