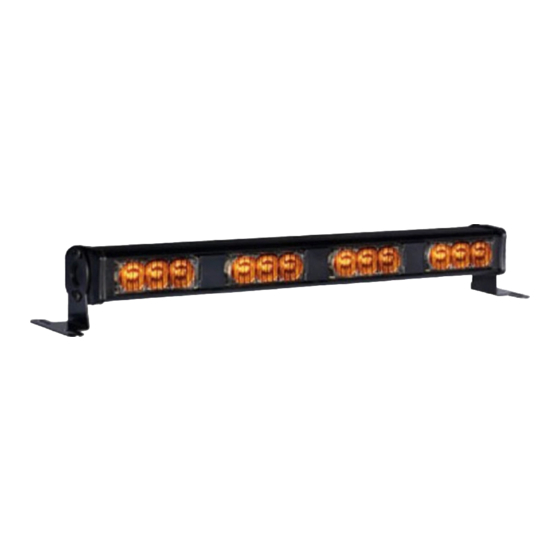

XT302, XT304,XT308 LED WARNING LIGHTS
Safety Warnings...............................................................................1
Specifications..................................................................................1
Mounting.........................................................................................2
Operation.........................................................................................2
Adjustment........................................................................................2
Patterns...... ...................................................................................2,3
Troubleshooting...............................................................................3
XT302
XT304
XT308
TABLE OF CONTENTS
Safety Warnings
Advertisement
Table of Contents
Related Manuals for Code 3 XT302
Summary of Contents for Code 3 XT302

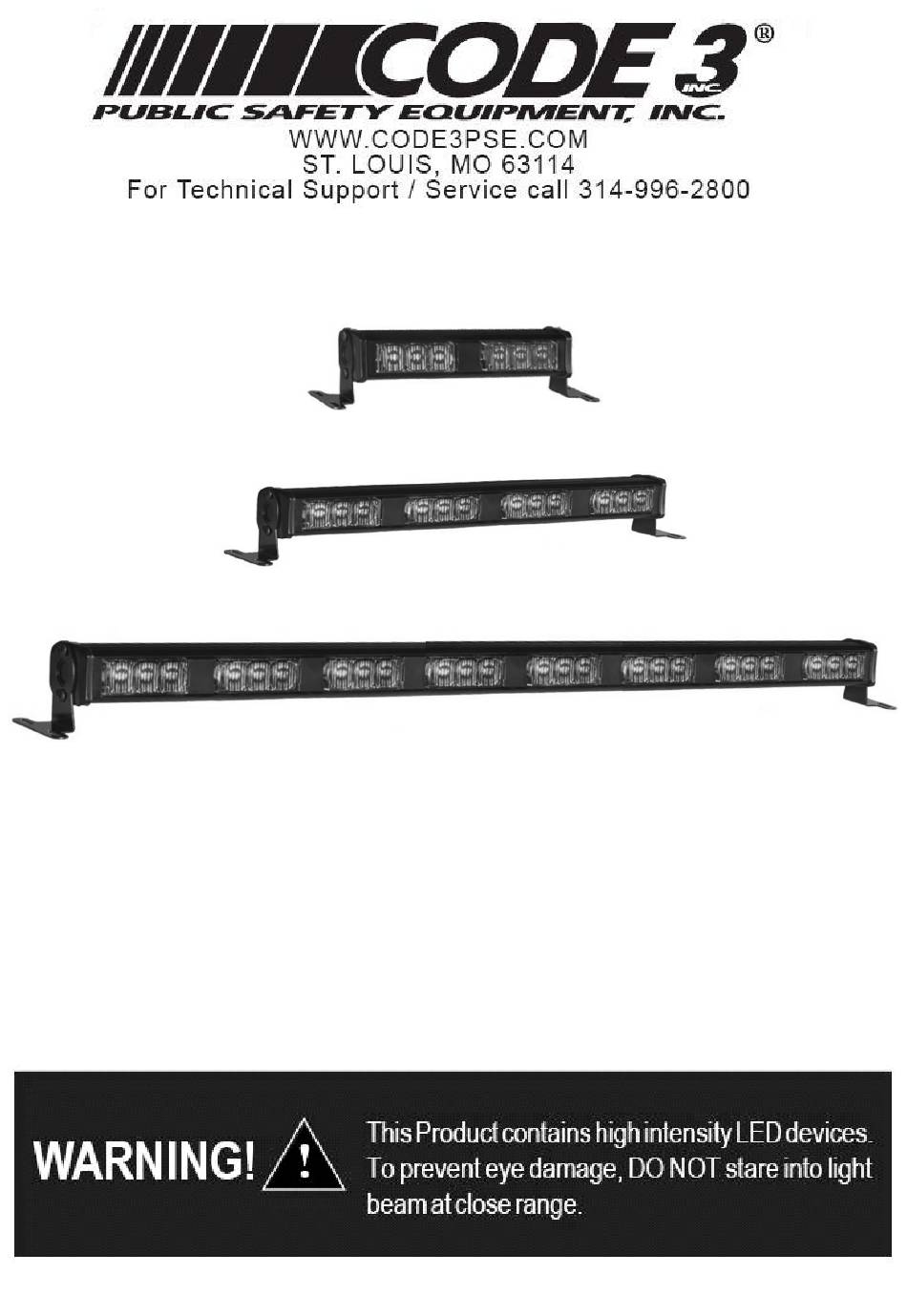

- Page 1 XT302, XT304,XT308 LED WARNING LIGHTS XT302 XT304 XT308 TABLE OF CONTENTS Safety Warnings….…………………………………………………….…………..1 Specifications…………………………………………………………………….…1 Mounting……………………………………………………………………………..2 Operation………………………………………………………………………..…...2 Adjustment..…………………………………..…………………...……………..2 Patterns…… ……………………………………………………….………..…..…2,3 Troubleshooting………………………………………………………..…….…….3 Safety Warnings...
-
Page 2: Specifications
IMPORTANT: Please be sure to check that the product is properly fused. Installing the XT3xx LED light without the appropriate fuse will void the warranty. Specifications XT302 XT304 XT308 Input Voltage 11-30 VDC 11-30 VDC 11-30VDC Peak Input Current 1 Amp... -
Page 3: Troubleshooting
Adjustment After the XT302 or XT304 or XT308 light is securely installed, loosen the adjusting screws located on each end and tilt the light to the desired angle. Then tighten the screws. Turn the XT3xx LED light on and check the light from the front or rear of the vehicle, through the window, to ensure that it is at the most desirable angle, and that the light is not impeded by any obstacles and/or window tinting.
