Detroit Assurance 5.0
Detroit Assurance Collision
Mitigation System (CMS)
The Detroit Assurance collision mitigation system
(CMS) is a safety system that uses a radar mounted
on the front frame crossmember, shown in
and a windshield-mounted multipurpose camera to
communicate information to active features that can
control the truck.
The system can track vehicles up to 820 ft (250 m)
ahead, and if necessary sounds a warning and
applies the brakes.
12/07/2022

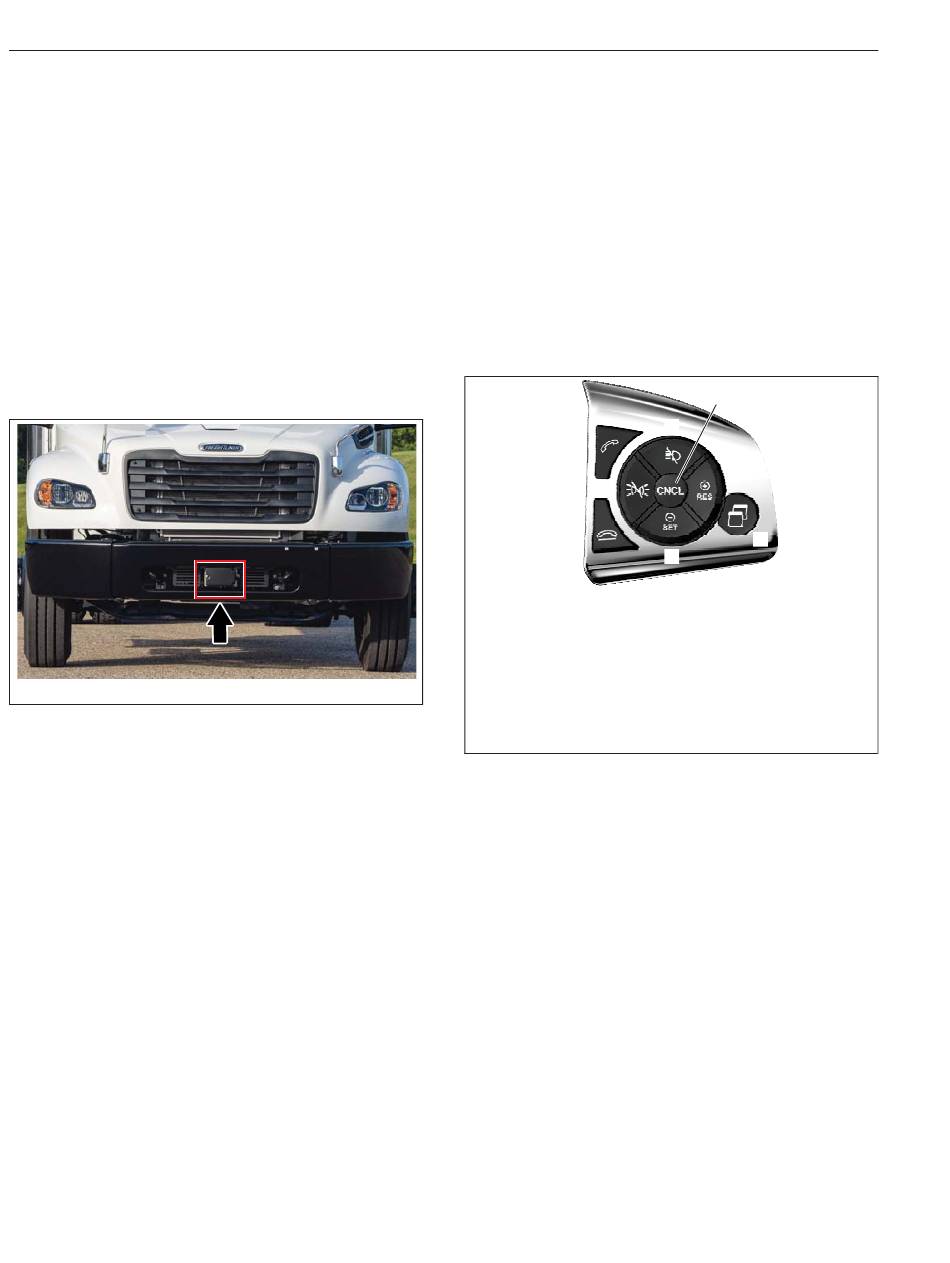

Fig. 6.1, Forward Radar Location
IMPORTANT: Do not mount any attachments in
front of the radar distance sensor. Do not paint
or affix items over the distance sensor cover.
Keep the cover free of mud, ice, and snow.
Attachments mounted in front of the distance
sensor, such as a crash guard, and objects on
the sensor cover can impair the sensor's
operation.
Driver's Display
The M2 Plus is equipped with an instrument cluster
unit common (ICUC). The driver's display, on the
ICUC, presents the status and warnings from the
different features that make up the Detroit Assurance
safety system.
The standard core features of Detroit Assurance on
the Freightliner M2 Plus 106 include active brake
assist 5 (ABA5) and lane departure warning (LDW)
with a fifteen minute timeout switch.
The standard core features of Detroit Assurance on
the Freightliner M2 Plus 112 include active brake
6.1
assist 5 (ABA5), adaptive cruise control (ACC) with
fixed headway, tailgate warning, and lane departure
warning (LDW) with a fifteen minute timeout switch.
Optional safety features include traffic sign display,
active speed intervention, and either side guard
assist or active side guard assist (SGA).
Fig. 6.1,
The right-hand steering wheel switch pod, shown in
Fig. 6.2,
controls and access to Detroit Assurance settings via
the 'quick access system settings' button.
11 18 / /20 22
1. Cruise Accelerate/Resume
2. Quick Access System Settings
3. Cruise Decelerate/Set
4. Phone Hang-Up/Reject
f548038 5. Marker Interrupt (not available in all markets)
6. Phone Pick-Up
7. Headlamp Interrupt (not available in all markets)
8. Cancel Cruise Control
Fig. 6.2, Right-Hand Steering Wheel Switch Pod, ICUC
Detroit Assurance Vehicle
Cameras
IMPORTANT: The windshield must be clean,
unobstructed, and without damage for the
proper operation of the multipurpose camera
and rain/light sensor.
Multipurpose Camera 2 (MPC2)
The camera bracket that comes with Detroit
Assurance 5.0 can hold a driver facing camera,
multipurpose camera 2 (MPC2), and rain/light sensor
(RLS). The unit is mounted against the windshield.
See Fig.
The MPC2 works with the radar system to support
multiple features within DA 5.0. It is important for the
driver to keep the windshield clean and unobstructed
in order for the MPC2 and rain/light sensor to
operate properly.
contains adaptive cruise control (ACC)
7
6
5
4
3
6.3.
8
1
2
f611352e
