freightliner M2 Plus 2023 Manual page 27

1
5
06/29/2016
NOTE: Navigate the top-level menu by using the right and left arrow buttons in the left-hand steering wheel switch pod.
Navigate to Quick Access Settings using the Quick Access System Settings switch on the right-hand steering wheel
switch pod.
When navigating the top-level menu the last-used menu screen in each category will be displayed; this may not be the
menu's initial screen.
1. Startup
2. Home/Basic Information
3. Drive Time Systems
Vehicle Operations Screens
There are five possible options under 'Vehicle
Operations:'
•
Gauges
•
Diesel Particulate Filter
•
Tire Pressure Monitoring
•
Locks
•
Vehicle Settings
For information on the display's for gauges and, if
equipped, tire pressure monitoring see the
"Instruments and Systems" section in this chapter.
Information on diesel particulate filter monitoring is
covered in chapter Chapter 13
equipped, information on 'Transmission Prognostics'
2
6
4. Vehicle Operations
5. Maintenance
6. Infotainment

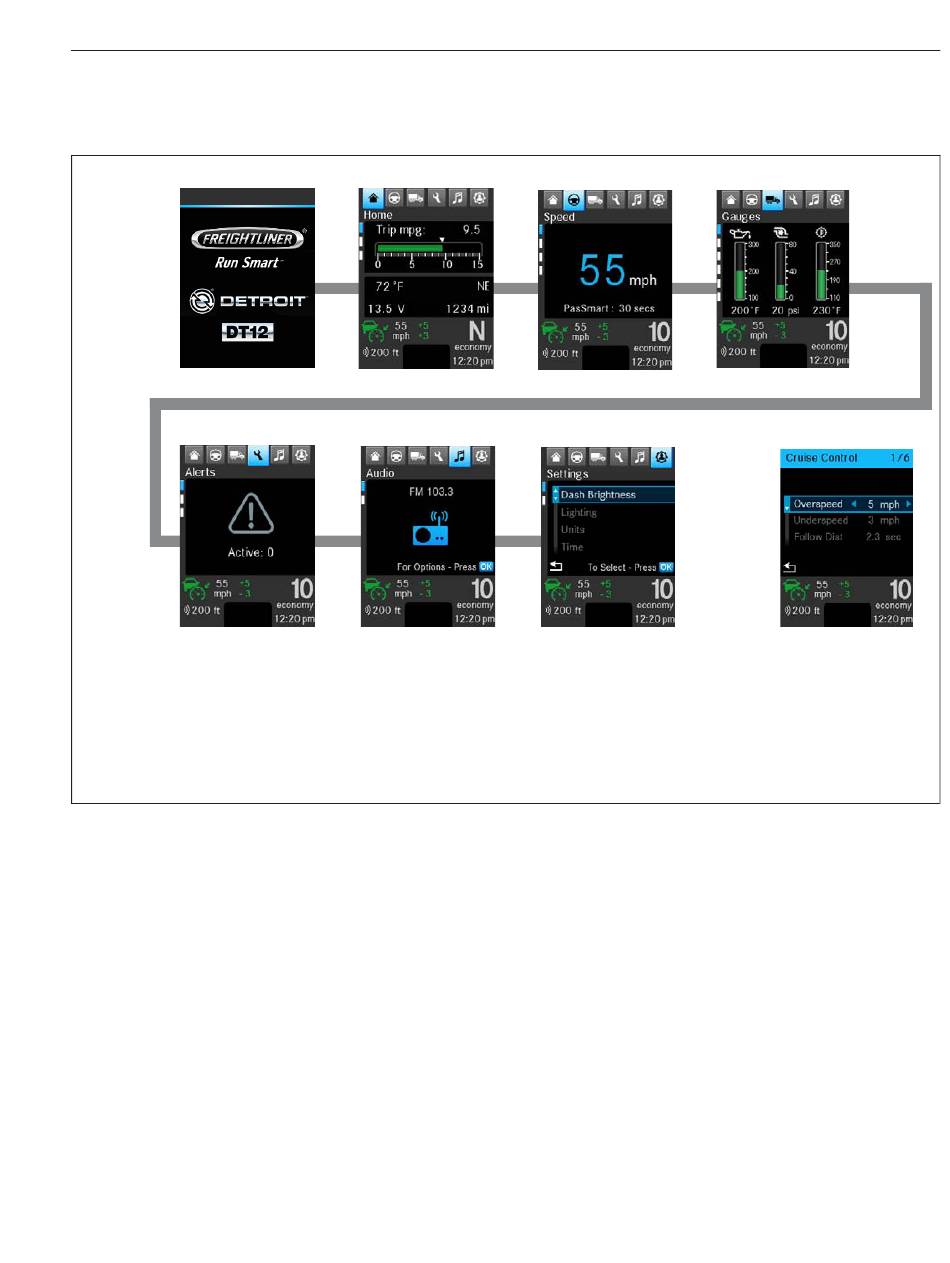

Fig. 3.8, ICUC Top-Level Menu Initial Screens
Emissions. If
3
7
7. User Settings
8. Quick Access Systems (if
available)
is covered in Chapter 14
Transmissions. For information on Locks see
Chapter 16 Drive Axles.
The Vehicle Settings screen, shown in
provides access to settings for vehicle systems such
as cruise control, engine idle adjust, and the
transmission.
ICUC Maintenance Screens
The maintenance screens are used to retrieve fault
codes and other diagnostic and service information
pertaining to the vehicle.
There are five menu options under Maintenance:
•
Alerts
•
Diagnostics
Instruments
4
8
f611355
Automated and Automatic
Fig. 3.11,
3.6
