Note: The initial user ID and password for the management module are:
v User ID: USERID (all capital letters)
v Password: PASSW0RD (note the zero, not O, in PASSW0RD)
3. Follow the instructions that appear on the screen. Be sure to set the timeout
value you want for your Web session.

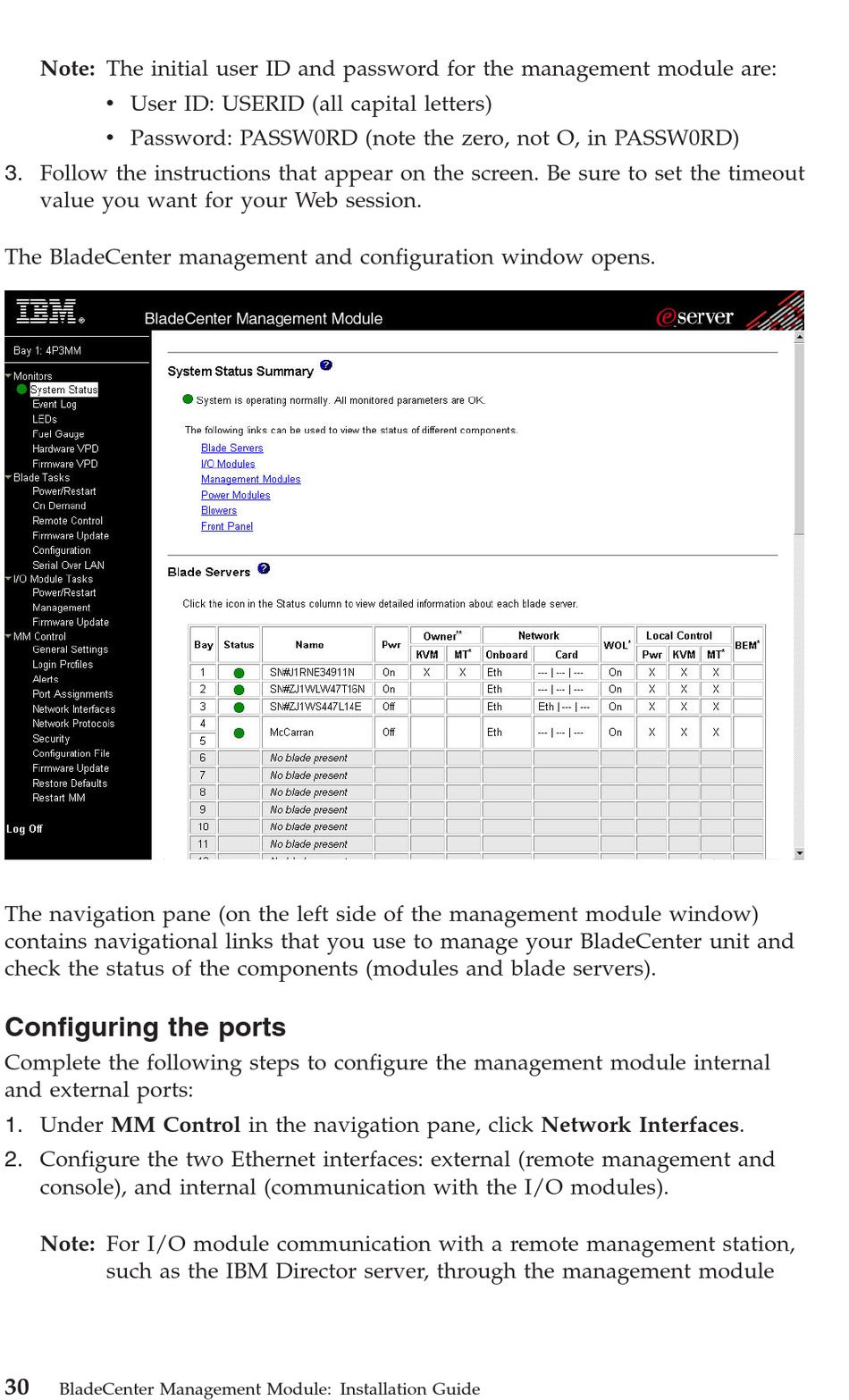

The BladeCenter management and configuration window opens.
The navigation pane (on the left side of the management module window)
contains navigational links that you use to manage your BladeCenter unit and
check the status of the components (modules and blade servers).

Configuring the ports

Complete the following steps to configure the management module internal
and external ports:
1. Under MM Control in the navigation pane, click Network Interfaces.
2. Configure the two Ethernet interfaces: external (remote management and
console), and internal (communication with the I/O modules).
Note: For I/O module communication with a remote management station,
such as the IBM Director server, through the management module
30
BladeCenter Management Module: Installation Guide
