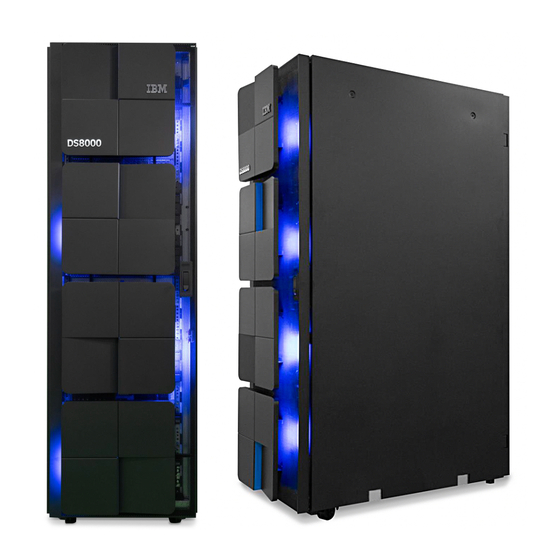

Page 1 IBM Storage DS8000 (10th Generation) 10.0 Introduction and Planning Guide G10-I53-00...
Page 2 Before using this information and the product it supports, read the information in “Safety and environmental notices ” on page 176 and “Notices” on page 175. ® ® This edition applies to version 9.4 of IBM DS8000 and to all subsequent releases and modifications until otherwise indicated in new editions.
Page 3: Table Of Contents
Management console..........................6 Ethernet switches...........................6 Power..............................6 Functions..............................7 Updating code levels..........................9 Logical configuration..........................10 Logical configuration with DS8000 Storage Management GUI............10 Logical configuration with DS CLI......................11 RAID implementation...........................13 Logical subsystems..........................14 Allocation methods..........................15 Management interfaces..........................16 DS8000 Storage Management GUI......................16 DS command-line interface ........................
Page 4 ESE capacity controls for thin provisioning..................64 IBM Easy Tier............................. 65 VMware vStorage API for Array Integration support ................67 Performance for IBM Z ..........................68 Copy Services.............................69 Disaster recovery through Copy Services.................... 76 Resource groups for Copy Services scope limiting................77 Comparison of Copy Services features.....................
Page 5 IBM Fibre Channel Endpoint Security....................103 Transparent cloud tiering........................103 Copy Services license..........................104 Remote mirror and copy functions....................105 FlashCopy function (point-in-time copy)...................105 Safeguarded Copy..........................105 Local Data-at-Rest Encryption license....................106 Chapter 6. Delivery and installation requirements..........107 Delivery requirements..........................107 Acclimation............................107...
Page 6 Customer components..........................166 Service components..........................166 Appendix D. Configuration worksheets............... 167 Appendix E. Compliance standards..............169 Appendix F. European Union General Data Protection Regulation Considerations.171 Appendix G. Data privacy...................173 Notices......................175 Trademarks.............................. 176 Homologation statement.........................176 Safety and environmental notices......................176 Safety notices and labels........................176 Vendor-specific uninterruptible power supply safety statements........... 187 Environmental notices........................
Page 7: About This Book
About this book This book describes how to plan for a new installation of the IBM Storage DS8000 (10th Generation). It includes information about planning requirements and considerations, customization guidance, and configuration worksheets. Who should use this book This book is intended for personnel that are involved in planning. Such personnel include IT facilities managers, individuals responsible for power, cooling, wiring, network, and general site environmental planning and setup.
Page 8 Publications You can order or download individual publications (including previous versions) that have an order number from the IBM Publications Center website (www.ibm.com/resources/publications). Publications without an order number are available on the documentation CD or can be downloaded here. Table 1. DS8000 series product publications...
Page 9 Table 1. DS8000 series product publications (continued) Title Description Order number IBM DS8000 Command- This publication describes how to V9.4 SC27-9562-07 Line Interface User's Guide use the DS8000 command-line V9.3.2 SC27-9562-06 interface (DS CLI) to manage DS8000 V9.2.1 SC27-9562-05 configuration and Copy Services V9.2.0 SC27-9562-04...
Page 10: Related Websites
Maintenance under this agreement.) IBM License Agreement https://www.ibm.com/support/pages/node/631363 for Machine Code See the Agreements and License Information CD that was included with the DS8000 series for the following documents: • License Information • Notices and Information • Supplemental Notices and Information Related websites View the websites in the following table to get more information about DS8000 series.
Page 11 Procedure To submit any comments about this publication or any other IBM storage product documentation: • Send your comments by email to ibmdocs@us.ibm.com. Be sure to include the following information: – Exact publication title and version – Publication form number (for example, GA32-1234-00) –...
Page 12 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 13: Summary Of Changes
® IBM Storage DS8000 (10th Generation) Version 10, Release 0 introduces the following new features. Version 10, Release 0 ® This table provides the current technical changes and enhancement to the IBM Storage DS8000 (10th Generation). Function Description Improved Bandwidth with PCIe Gen4 The DS8000 10th generation is designed with PCIe Gen4 enabled infrastructure.
Page 14 • Move code stack to SW with abstraction layer to HW • Removal of custom HW/FW and replace with standard HW/FW shown below: – POWER 9 based HMC – Rack Mounted Ethernet Switches xiv IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 15: Chapter 1. Overview
• Single-phase and three-phase support IBM DS8A00 Model E05 The IBM DS8A00 Model E05 is an expansion for DS8A50 Model A05 that can be attached to a 40- core system to enable: • Up to 192 flash cards (four HPFE Gen 3) for a total of 384 flash drives (eight HPFE Gen 3) per system •...
Page 16: Machine Types
5341 9031 The machine types for the DS8000 series specify the service warranty period. The warranty is used for service entitlement checking when notifications for service are called home. All DS8000 series models report 2107 as the machine type to attached host systems.
Page 17 Adapter processors RAID & sparing mana gement Figure 1. DS8000 series architecture The DS8000 series architecture has the following major benefits. • Server foundation – Promotes high availability and high performance by using field-proven Power servers – Reduces custom components and design complexity –...
Page 18: Ds8A00 Model A01 Configuration
The following tables list the hardware components and maximum capacities that are supported for the models A05 and E05, depending on the amount of memory that is available. 4 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 19: Capacity Limits
Table 7. Components for models A05 and E05 Host adapters HPFE Gen3 enclosure Processors System memory Processor memory I/O enclosures (4 port) pairs Expansion frames 40-core 1TB, 2TB, or 3.5 TB 2176 GB 1 - 4 2 - 16 1 - 8 0 - 1 Table 8.
Page 20: Processor Nodes
To optimize data security, reliability, and recovery time, BPMs retain NVDIMM data when electrical power is removed from either an unexpected power loss or normal system shutdown. 6 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 21: Functional Overview
Functional overview The following list provides an overview of some of the features that are associated with the DS8000 1oth generation. Note: Some storage system functions are not available or are not supported in all environments. See the IBM System Storage Interoperation Center (SSIC) website(www-03.ibm.com/systems/support/storage/ ssic/interoperability.was) for the most current information on supported hosts, operating systems,...
Page 22 The DS8000 10th generation storage system can work in cooperation with IBM Z hosts to provide the following performance enhancement functions. • Extended Address Volumes •...
Page 23: Functions
• Either Copy Services functions are disabled on all DS8000 systems that share the same SAN (local and remote sites) or the landlord configures the operating system environment on all hosts (or host LPARs) attached to a SAN, which has one or more DS8000 systems, so that no tenant can issue Copy Services commands.
Page 24: Logical Configuration
If a failure notice is received, an SSR might be required on site to initiate the corrective action. The customer code load process is to initiate the update of current code level of DS8000 storage system with a concurrent code level that is downloaded from FixCentral by the customer without going through IBM support.
Page 25: Logical Configuration With Ds Cli
A rank is divided into a number of fixed-size extents. If you work with an open-systems host, a large extent is 1 GiB, and a small extent is 16 MiB. If you work in an IBM Z environment, a large extent is the size of an IBM 3390 Mod 1 disk drive (1113 cylinders), and a small extent is 21 cylinders.
Page 26 12. Host port nicknames can be 32 characters, which are expanded from the previous maximum of 16. 12 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 27: Raid Implementation
Disk Array Site Array Rank CKD Mod1 Ex tent in IBM System z environments FB 1GB in an Open systems Host Extents Virtualization Extent Pool Volume Groups Map Host to Volumes Logical Volume Volume Group Figure 3. Logical configuration sequence RAID implementation RAID implementation improves data storage reliability and performance.
Page 28: Raid 6 Overview
LSSs using a logical path. An LSS is a group of up to 256 volumes that have the same storage type, either count key data (CKD) for IBM Z hosts or fixed block (FB) for open systems hosts. An LSS is uniquely identified within the storage system by an identifier that consists of two hex characters (0-9 or uppercase A-F) for which the volumes are associated.
Page 29: Allocation Methods
LSSs set to the maximum of 255. Note: If you reduce the CKD LSS limit to zero for IBM Z hosts, the storage system does not process Remote Mirror and Copy functions. The FB LSS limit must be no lower then eight to support Remote Mirror and Copy functions for open-systems hosts.
Page 30: Management Interfaces
For a list of supported browsers, see “DS8000 Storage Management GUI web browser support and configuration” on page 18. You can access the DS8000 Storage Management GUI from a browser by using the following web address, where HMC_IP is the IP address or host name of the HMC.
Page 31: Restful Api
Control, it is possible to manage multiple DS8000 systems from a single point of control. Note: IBM Spectrum Control is not required for the operation of a storage system. However, it is recommended. IBM Spectrum Control can be ordered and installed as a software product on various servers and operating systems.
Page 32: Supported Web Browsers
If the security requirements for your storage system require conformance with NIST SP 800-131A, enable transport layer security (TLS) 1.2 or 1.3 on web browsers that use TLS to access the DS8000 Storage Management GUI. See your web browser documentation for instructions on enabling TLS 1.2 or 1.3. For Internet Explorer, complete the following steps to enable TLS 1.2.
Page 33 Note: If a message indicates that content is blocked without a signed by a valid security certificate, click the Information Bar at the top and select Show blocked content. 2. Add the IP address of the DS8000 Hardware Management Console (HMC) to the Internet Explorer list of trusted sites.
Page 34 20 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 35: Chapter 2. Hardware Features
DoD indicator Provides a special label required for Department of Defense orders. 0021 JEMT indicator Indicates an IBM internal order for machine under the Joint Engineering Manufacturing Test (JEMT) program. It is for administrative purposes only. 0262 1.6TB 2.5 flash encl ind...
Page 36 (each quantity represents 16 cards for #16xx) 2. Multiply each total by its respective disk drive capacity 3. Add together all the resulting values 22 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 37 Table 11. Feature codes for hardware features (continued) Feature code Feature Description 0798 25.1 TB to 50 TB capacity Indicates the total raw capacity of the system at initial order is between 25.1 and 50 TB and is used for administrative purposes only.
Page 38 (each quantity represents 16 cards for #16xx) 2. Multiply each total by its respective disk drive capacity 3. Add together all the resulting values 24 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 39 0930 IBM/Openwave Alliance Indicates the order is part of sales activities related to the strategic alliance between IBM and Openwave. Its purpose is purely administrative. This feature is applicable to both plant and MES order operations. Chapter 2. Hardware features 25...
Page 40 Indicates that the order is part of sales activities related to the IBM/EPIC software environment. This feature is solely for administrative purposes and applies to both plant and MES order activities. 26 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 41 This optional feature is for the US Government customers and customers ordering on behalf of the US Government. When used, it provides the DS8000 as a TAA compliant system. It should not be used except where bids or customers require TAA compliance and orders with this feature number will be reviewed for relevance.
Page 42 HPFE Gen 3 adapter pairs used to support flash cards. One HPFE Gen 3 adapter pair is required for each HPFE Gen 3 Enclosure pair. 28 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 43 Provides a one port zHyperlink adapter which resides in the PCIe G4 I/O drawer of the DS8000 and supports direct connectivity to IBM Z at distances up to 150 m. AAH0 TCT 10Gb/1Gb ethernet pair for 2U Provides a pair of 2-port 10 Gbps SFP+...
Page 44 Top exit bracket for fibre cable Provides the bracket to secure the Fibre cables and power line cords routed to the top of the system. 30 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 45 AAW0 Earthquake Kit Provides an optional seismic kit for stabilizing the storage unit rack, so that the rack complies with IBM earthquake resistance standards. It is important for computer systems to be adequately restrained during earthquakes. This helps to prevent human injury. It also ensures...
Page 46 Fibre Channel/FICON adapter port to a cable with a LC connector. This feature is compatible with long-wave Fibre Channel/FICON host adapters. 32 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 47 Table 11. Feature codes for hardware features (continued) Feature code Feature Description AB23 3 meter, 9um Fibre cable (LC/LC) Provides one Fibre Channel cable to connect a Fibre Channel/FICON adapter port to a server or fabric component port. Each cable has a LC connector for attachment to the Fibre Channel/FICON adapter port.
Page 48 4 year, IBM Storage Expert Care Advanced, Indicates a priced Expert Care Service and 6hr Committed Fix Support offering is included on the order. It is for administrative purposes only. 34 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 49 Table 11. Feature codes for hardware features (continued) Feature code Feature Description ALCB 4 year, IBM Storage Expert Care Advanced, Indicates a priced Expert Care Service and 8hr Committed Fix Support offering is included on the order. It is for administrative purposes only. ALCC...
Page 50 1yr Expert Care Advanced Indicator Indicates a priced Expert Care Service and Support offering is included on the order. It is for administrative purposes only. 36 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 51 Indicates a priced Expert Care Service and Support offering is included on the order. It is for administrative purposes only. ALK9 1 year, IBM Storage Expert Care Advanced, Indicates a priced Expert Care Service and 4hr Committed Fix Support offering is included on the order. It is for administrative purposes only.
Page 52 5Yr Expert Care Premium Indicator Indicates a priced Expert Care Service and Support offering is included on the order. It is for administrative purposes only. 38 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 53 Table 11. Feature codes for hardware features (continued) Feature code Feature Description ALL9 1 year, IBM Storage Expert Care Premium, Indicates a priced Expert Care Service and 4hr Committed Fix Support offering is included on the order. It is for administrative purposes only. ALLA...
Page 54 #BAxx features are ordered (plant and field install), the same #BAxx features (in the same quantity) must also be ordered against the Function Authorization machine type. 40 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 55 BF 15TB increments from 100.1 TB to 250 Enables a Base functions license subject to the client applying a feature activation code made available by IBM. It is also used for maintenance billing purposes. DS8000 Series Function Authorization feature numbers must be purchased to...
Page 56 Function Authorization machine type. BAB0 CS - Inactive Indicates Copy services functions are inactive in the unit. 42 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 57 CS 10TB increments from 0 to 100 TB Enables a Copy Services functions license subject to the client applying a feature activation code made available by IBM. It is also used for maintenance billing purposes. DS8000 Series Function Authorization feature numbers must be purchased to...
Page 58 #BAxx features are ordered (plant and field install), the same #BAxx features (in the same quantity) must also be ordered against the Function Authorization machine type. 44 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 59 CS 600TB increments from 6000.1 TB to Enables a Copy Services functions license 12000 TB subject to the client applying a feature activation code made available by IBM. It is also used for maintenance billing purposes. DS8000 Series Function Authorization feature numbers must be purchased to...
Page 60 #BAxx features are ordered (plant and field install), the same #BAxx features (in the same quantity) must also be ordered against the Function Authorization machine type. 46 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 61 300TB increments from 3000.1 TB to Enables a z Synergy services license 6000 TB subject to the client applying a feature activation code made available by IBM. It is also used for maintenance billing purposes. DS8000 Series Function Authorization feature numbers must be purchased to...
Page 62 #BAxx features are ordered (plant and field install), the same #BAxx features (in the same quantity) must also be ordered against the Function Authorization machine type. 48 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 63 Enables a Transparent Cloud Tiering 3000 TB services license subject to the client applying a feature activation code made available by IBM. It is also used for maintenance billing purposes. DS8000 Series Function Authorization feature numbers must be purchased to establish...
Page 64: Management Console
The management console is a dedicated processor unit that is located inside your storage system. The ® management console can automatically monitor the state of your system, and notify you and IBM when service is needed. To provide continuous availability two management consoles are provided. The on site interface to the management console is a 1U keyboard and display.
Page 65: Hardware Specifics
With the improved performance provided by the new RAID Adapters and NVMe drives it is expected that users migrating from previous generation storage systems will be able to move to a larger drive size than they are currently using. IBM Storage Modeller should be used to confirm that a particular configuration will meet workload requirements.
Page 66: Drive Maintenance Policy
A minimum of two spare drives are allocated in a device adapter loop. Internal maintenance functions continuously monitor and report (by using the call home feature) to IBM when the number of drives in a spare pool reaches a preset threshold. This design ensures continuous availability of devices while it protects data and minimizing any service disruptions.
Page 67: Open-Systems Host Attachment With Fibre Channel Adapters
Figure 5. Host adapter plug order, two I/O bay pair rack Figure 4. Host adapter plug order, single I/O bay pair rack The following HA-type plug order is used during manufacturing when different types of HA cards are installed. 1. 4-port 32 Gbps longwave host adapters 2.
Page 68: I/O Load Balancing
EC12 and IBM zEnterprise BC12 servers support 24,576 devices per FICON host channel. Earlier IBM Z servers support 16,384 devices per FICON host channel. To fully access 65,280 devices, it is necessary to connect multiple FICON host channels to the storage system. You can access the devices through a Fibre Channel switch or FICON director to a single storage system FICON port.
Page 69: Storage Consolidation
You can mix production and test servers in an open systems environment or mix open systems and IBM Z hosts. In this type of environment, servers rarely, if ever, contend for the same resource.
Page 70: Logical Volumes
The next extent for that volume is taken from the next rank in sequence, and so on. The system rotates the extents across the ranks. 56 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 71: Lun Calculation
On open volumes with 520 byte blocks, you can select one of the supported LUN sizes that are used on IBM i processors to create a LUN. The operating system uses 8 of the bytes in each block. This leaves 512 bytes per block for your data.
Page 72: Extended Address Volumes For Ckd
12.1 and later. You can create a 1 TB IBM Z CKD volume. An IBM Z CKD volume is composed of one or more extents from a CKD extent pool. CKD large extents are 1113 cylinders and small extents are 21 cylinders in size. When you define a IBM Z CKD volume, you must specify the number of cylinders that you want for the volume.
Page 73 Depending on the operation, the quick initialization can be started for the entire logical volume or for an extent range on the logical volume. Chapter 2. Hardware features 59...
Page 74 60 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 75: Chapter 3. Data Management Features
Transparent cloud tiering is a licensed function that enables volume data to be copied and transferred to cloud storage. DS8000 transparent cloud tiering is a feature in conjunction with z/OS and DFSMShsm that provides server-less movement of archive and backup data directly to an object storage solution.
Page 76: Dynamic Volume Expansion
The data remains encrypted in cloud storage and is decrypted after it is transferred back to the storage system. You can use client-side encryption for transparent cloud tiering to download and decrypt data on any DS8000 storage system that uses the same set of key servers as the system that first encrypted the data.
Page 77: Count Key Data And Fixed Block Volume Deletion Prevention
Count key data and fixed block volume deletion prevention By default, DS8000 attempts to prevent volumes that are online and in use from being deleted. The DS CLI and DS Storage Manager provides an option to force the deletion of count key data (CKD) and fixed block (FB) volumes that are in use.
Page 78: Ese Capacity Controls For Thin Provisioning
ESE user data usage, and to guarantee a proportion of the extent pool storage to be available for ESE user data usage. 64 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 79: Ibm Easy Tier
You can use the features of Easy Tier between three tiers of storage within a DS8000. Easy Tier features help you to effectively manage your system health, storage performance, and storage capacity automatically.
Page 80 Flash Tier 0 + Flash Tier 1 Flash Tier 2 Flash Tier 1 + Drive classes Flash Tier 2 Flash Tier 0 Flash Tier 1 Flash Tier 2 66 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 81: Vmware Vstorage Api For Array Integration Support
Table 15. Drive class combinations and tiers for systems with Flash Tier 1 drives as the highest performance drive class Drive class combinations Drive classes Flash Tier 1 Flash Tier 1 + Flash Tier 2 Flash Tier 1 Flash Tier 2 Cold demotion Cold data (or extents) stored on a higher-performance tier is demoted to a more appropriate tier.
Page 82: Performance For Ibm Z
You can further enhance PAV by adding the IBM HyperPAV feature. IBM HyperPAV associates the volumes with either an alias address or a specified base logical volume number. When a host system requests IBM HyperPAV processing and the processing is enabled, aliases on the logical subsystem are placed in an 68 ...
Page 83: Copy Services
IBM HyperPAV alias access state on all logical paths with a specific path group ID. IBM HyperPAV is only supported on FICON channel paths. PAV can improve the performance of large volumes. You get better performance with one base and two aliases on a 3390 Model 9 than from three 3390 Model 3 volumes with no PAV support.
Page 84 8-port host adapters, the paths connect only to the lower four ports on the newer storage system. • If you are creating paths from a model 993 4-port host adapter to a previous release DS8000 (Release 6.0 or later), which supports 8-port host adapters, you can only connect the lower four ports of the 8-port host adapter.
Page 85: Point-In-Time Copy (Flashcopy)
The point-in-time and remote mirror and copy features are supported across variousIBM server environments such as IBM i, System p, and IBM Z , as well as servers from Oracle and Hewlett-Packard. You can manage these functions through a command-line interface that is called the DS CLI.
Page 86 The Remote Pair FlashCopy relationship completes successfully with the "Preserve Mirror, Required" option, even if the status of the Metro Mirror volume pair is either in a suspended or duplex pending state. 72 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 87: Remote Mirror And Copy
Note: You must use Fibre Channel host adapters with remote mirror and copy functions. To see a current list of environments, configurations, networks, and products that support remote mirror and copy functions, click Interoperability Matrix at the following location IBM System Storage Interoperation Center (SSIC) website(www-03.ibm.com/systems/support/storage/ssic/interoperability.was).
Page 88 Geographically Dispersed Parallel Sysplex (GDPS ), which is available for IBM Z environments, to ensure data consistency to multiple Metro Mirror volume pairs in a specified logical subsystem. Common options for Metro Mirror/Global Mirror and Global Copy include the following modes:...
Page 89 Provides a three-site, long-distance disaster recovery replication that combines Metro Mirror with Global Mirror replication for both IBM Z and open systems data. Metro/Global Mirror uses synchronous replication to mirror data between a local site and an intermediate site, and asynchronous replication to mirror data from an intermediate site to a remote site.
Page 90: Disaster Recovery Through Copy Services
IBM Z environments. z/OS Global Mirror Multiple Reader helps maintain constant data consistency between mirrored sites and promotes efficient recovery. This function is supported on the storage system running in a IBM Z environment with version 1.7 or later at no additional charge.
Page 91: Resource Groups For Copy Services Scope Limiting
Recovery procedures that include failover and failback modes use remote mirror and copy functions, such as Metro Mirror, Global Copy, Global Mirror, Metro/Global Mirror, Multiple Target PPRC, and FlashCopy. Note: See the IBM DS8000 Command-Line Interface User's Guide for specific disaster recovery tasks. Data consistency can be achieved through the following methods:...
Page 92 Note: User and administrator roles for resource groups are the same user and administrator roles used for accessing your DS8000 storage system. For example, those roles include storage administrator, Copy Services operator, and physical operator.
Page 93: Comparison Of Copy Services Features
However, with the local key manager enabled (feature 0405), the requirement for at least two external key servers does not apply. It is important to understand how to manage IBM encrypted storage and comply with IBM encryption requirements. Failure to follow these requirements might cause a permanent encryption deadlock, which might result in the permanent loss of all key-server-managed encrypted data at all of your installations.
Page 94 80 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 95: Chapter 4. Physical Configuration
Administrative indicators If applicable, models also include the following indicators: • IBM / Openwave alliance • IBM / EPIC attachment • IBM systems, including System p and IBM Z • Lenovo System x and BladeCenter ® ® • IBM storage systems, including IBM System Storage ProtecTIER...
Page 96: Selecting Storage Features
Tier 1 drives 1, 2 1624 7.68 TB 2.5-in. Flash 6, 10 Tier 2 drives 1, 2 1625 15.36 TB 2.5-in.Flash 6, 10 Tier 2 drives 82 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 97: Storage-Enclosure Fillers
Table 17. Feature codes for flash-drive sets for High Performance Flash Enclosures Gen3 (continued) Feature code Disk size Drive type Drives per set Drive speed Encryption RAID support in RPM capable drive (K=1000) Note: 1. RAID 6 is the default RAID type for all drives larger than 1 TB. 2.
Page 98: Raw And Usable Capacity
Specifically, usable capacities vary depending on the following configurations: RAID type and spares Drives in the DS8000 must be configured as RAID 6, or RAID 10 arrays before they can be used, and then spare drives are assigned. RAID 10 can offer better performance for selected applications, in particular, high random, write content applications in the open systems environment.
Page 99 • For an FB storage pool with 6,190 extents in which you expect to use thin provisioning and allocate up to 12,380 extents (2:1 overprovisioning) on 100 volumes, you would have a pool overhead of 23 extents -> (100*2+12380/10)/64=22.46. • For a CKD storage pool with 6,190 extents in which you expect to allocate all the space on 700 volumes, then you would have a pool overhead of 39 extents ->...
Page 100: Selecting I/O Adapter Features
AB01 20 meter expansion PCIE4 Provides the cableset required to attach Cableset an expansion frame up to 20 meters away from a base frame 86 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 101: Fibre Channel Host Adapters And Cables
The Fibre Channel host adapters enable the storage system to attach to Fibre Channel (SCSI-FCP) and FICON servers, and SAN fabric components. They are also used for remote mirror and copy control paths between DS8000 series storage systems. Fibre Channel host adapters are installed in an I/O enclosure. Adapters are 4-port 32 Gbps.
Page 102: Feature Codes For Fibre Channel Cables
Cables are available with a LC connector for attachment to the server or fabric component port. The 50 micron cables are compatible with short-wave Fibre Channel/FICON host adapters. 88 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 103 Feature codes for overhead cable management (top-exit bracket) Use this feature code to order cable management for overhead cabling (top-exit bracket) for your IBM Storage DS8000 (10th Generation) Model A01, A05, or E05. Note: In addition to the top-exit bracket, one ladder (feature code AAX0) must also be purchased for a site where the top-exit bracket for fiber cable feature is used.
Page 104: Zhyperlink Adapters And Cables
12 fibers for receive. The specifications of the cable are: 40m, OM4 50/125 micrometer multimode fiber optic cable with a fiber bandwidth at wavelength: 4.7 GHz-km at 850 nm. 90 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 105: Transparent Cloud Tiering Adapters
Use these feature codes to order adapter pairs to enhance Transparent cloud tiering connectivity for your storage system. Transparent cloud tiering connectivity can be enhanced with 10 Gbps adapter pairs to improve bandwidth for a native cloud storage tier in IBM Z environments. Table 27. Feature codes for Transparent cloud tiering adapter pairs Feature code...
Page 106: Selecting Processor Node Features
4341 (8-core) 4451 512 GB system memory 4341 (8-core) 4452 512 GB system memory 4342 (10-core) 4453 1024 GB system memory 4342 and 4343 (20- core) 92 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 107: Selecting Power Features
Feature codes for power cords Use these feature codes to order power cords for the IBM Storage DS8000 (10th Generation) base or expansion racks. Each feature code includes two power cords and an iPDU pair. Ensure that you meet the requirements for each power cord and connector type that you order.
Page 108: Configuration Rules For Power Features
Ensure that you are familiar with the configuration rules and feature codes before you order power features. When you order power cord features, the following rules apply. 94 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 109: Selecting Other Configuration Features
• Each feature code represents a pair of power cords (two cords). To determine the number of features to order for your model configuration, see “Feature codes for power cords” on page 93. • You must select the power cord that is appropriate to the input voltage and geographic region where the storage system is located.
Page 110 96 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 111: Chapter 5. Licensed Functions
7 days a week by providing data duplication, data migration, and disaster recovery functions. Transparent Cloud Tiering ® Transparent Cloud Tiering (TCT) license provides a native cloud storage tier for IBM Z environments. Transparent cloud tiering moves data directly from the storage system to cloud object storage, without sending data through the host.
Page 112: Ordering Licensed Functions
To calculate the raw capacity, use the following table to determine the total size of each regular drive feature in your storage system, and then add all the values. 98 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 113: Base Function License
Note: Although you do not need to specify how the licenses are to be applied when you order them, you ® must allocate the licenses to the storage image when you obtain your license keys on the IBM Entitled Systems Support (ESS) website.
Page 114: Encryption Authorization
The Easy Tier feature enables the following modes: • Easy Tier: automatic mode • Easy Tier: manual mode The feature enables the following functions for the storage type: 100 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 115: Operating Environment License
• zPAV / Hyper-PAV / Super PAV • Parallel Access Volumes (PAV) • FICON Dynamic Routing, Forward Error Correction • Dynamic Volume Expansion • zDDB, IBM Sterling MFT Acceleration with zDDB • Thick/Thin Provisioned Volume support for CKD • IBM z/OS Distributed Data Backup • zHyperWrite •...
Page 116: High Performance Ficon For Z Systems
IBM HyperPAV associates the volumes with either an alias address or a specified base logical volume number. When a host system requests IBM HyperPAV processing and the processing is enabled, aliases on the logical subsystem are placed in an IBM HyperPAV alias access state on all logical paths with a given path group ID.
Page 117: Z/Os Distributed Data Backup
DFSMShsm, which reduces CPU utilization on the host when you are migrating and recalling data in cloud storage. You can use the IBM Z host to manage transparent cloud tiering and attach metadata to cloud objects.
Page 118: Copy Services License
TCT 600T increments from 6000.1 TB to 12000 TB The storage system supports the OpenStack Swift and Amazon S3 APIs. The storage system also supports the IBM TS7700 as an object storage target and the following cloud service providers: • Amazon S3 •...
Page 119: Remote Mirror And Copy Functions
• You must purchase features for both the source (primary) and target (secondary) storage system. Remote mirror and copy functions The Copy Services license establishes the extent of IBM authorization for the use of the remote mirror and copy functions on your storage system.
Page 120: Local Data-At-Rest Encryption License
Important: The Base Function license, which includes the Local Data-at-Rest license for certain countries, must be added by the customer at the time of array initialization. 106 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 121: Chapter 6. Delivery And Installation Requirements
• Planning for power requirements • Planning for network and communication requirements For more information about the equipment and documents that IBM includes with storage system shipments, see Appendix C, “IBM equipment and documents ,” on page 165. Delivery requirements Before you receive your storage system shipment, ensure that the final installation site meets all delivery requirements.
Page 122: Shipment Weights And Dimensions
Before you begin Ensure you read the following caution when you position the rack (model 994, 996, 998, or E96). 108 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 123: Installation Site Requirements
About this task Use the following steps to ensure that your receiving area and loading ramp can safely accommodate the delivery of your storage system: Procedure 1. Find out the packaged weight and dimensions of the shipping containers in your shipment. 2.
Page 124: Installing On Raised Or Nonraised Floors
When you install two adjacent frames, it is possible that two casters induce a total load as high as one third of the total weight of two adjacent frames. 110 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 125 • Depending on the type of floor tile, more supports (pedestals) might be necessary to maintain the structural integrity of an uncut panel or to restore the integrity of a floor tile that is cut for cable entry or air supply. Contact the floor-tile manufacturer and a structural engineer to ensure that the floor tiles and pedestals can sustain the concentrated loads.
Page 126 The four customer network connections in the rack are cable ends that hang free. They are not installed in a sheet metal bracket. Each cable is labeled as shown in Table 39 on page 111. 112 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 127 Figure 10. Top exit feature installed (cable routing and top exit locations rear view) Feature codes for overhead cable management (top-exit bracket) Use this feature code to order cable management for overhead cabling (top-exit bracket) for your IBM Storage DS8000 (10th Generation) Model A01, A05, or E05.
Page 128: Accommodating Cables
Use the following steps to ensure that you prepare for cabling for each storage system: 1. Based on your planned storage system layout, ensure that you can accommodate the locations of the cables that exit each frame. See the following figure for the cable cutouts for the DS8000 10th genaration.
Page 129 Rear 10.0 cm 41.91cm (16.5 in) (3.9 in) Cable Cutout 8.89 cm (3.5 in) Front Figure 11. Cable cutouts 2. If you install the storage system on a raised floor, use the following measurements when you cut the floor tile for cabling: •...
Page 130 Width of frame without covers 4 Minimum dimension between casters and outside edges of frames 5 Leveling pads 6 Back service clearance 7 Leveling pads 116 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 131: Meeting Floor Load Requirements
121.92 cm (48 in) Front service clearance 7.9 cm Swivel (3.1 in) 5.85 cm casters (2.3 in) 2.8 cm (1.1 in) 12.45 cm (4.9 in) 116.9 cm (46 in) 60 cm (23.62 in) without side covers 19.05 cm (7.5 in) Rear casters 2.8 cm fixed...
Page 132 Side clearance for frames that are bolted together applies to both sides of the assembled frames. 118 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 133: Calculating Space Requirements
When you are planning the floor and space requirements for your storage system, consider the dimensions and weights of the frames that compose your storage system. The following table provides dimensions and weights. ® Table 42. IBM Storage DS8000 (10th Generation) dimensions and weights Model Dimensions...
Page 134: Service Clearance Requirements
CAUTION: Servicing of this product or unit is to be performed by trained personnel only. (C032) For DS8000 series, technical service representatives must open the front and rear covers to service the storage system. Figure 14 on page 121 illustrates related service clearance requirements: •...
Page 135: Earthquake Resistance Kit Installation Preparation
Figure 14. Service clearance requirements Earthquake resistance kit installation preparation Before an IBM service representative can install the earthquake resistance kit on any frames in your storage system, you must purchase fastening hardware and prepare the location where the kit is to be installed.
Page 136 Figure 15 on page 122 and Figure 16 on page 123 illustrate the earthquake resistance kit after it is installed by an IBM service representative on a raised floor. Figure 15. Turnbuckle assembly 122 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 137 Figure 16. Earthquake resistance kit installed on a raised floor Complete the following steps to prepare your raised floor by using Figure 15 on page 122 and Figure 16 on page 123 as references. Procedure 1. Cut the following openings in the raised floor for each frame that uses an earthquake resistance kit: •...
Page 138 See Figure 18 on page 125 and Figure 19 on page 126. 124 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 139 1 Yoke 2 Nut, left-hand thread 3 Turnbuckle ½-13 right hand and left hand 4 5 Washer 6 Bushing 7 Load plates 8 Bushing, Plastic 9 Rods, ½-13 right hand, 304 mm, or 533 mm 10 Spacer 11 Washer flat, thick 12 ...
Page 140 To ensure that you meet all site requirements, obtain the service of a qualified consultant or structural engineer to help you prepare the floor. Figure 20 on page 127 provides an illustration of the earthquake resistance kit ( 1 ) after the IBM service representative installs it on the nonraised floor.
Page 141 Figure 20. Earthquake resistance kit installed on a nonraised floor. Use the following steps to prepare your nonraised floor: Procedure 1. Obtain eight fastener sets for each frame that uses the earthquake resistance kit. These fastener sets are used to secure the earthquake resistance kit load plate. The type of fastener set that you use can be determined by your consultant or structural engineer.
Page 142 Figure 21. Location for fastener installation (nonraised floor) 3. When the IBM service representative arrives to install the earthquake resistance kit, provide the other fastener parts ( 2 ) in Figure 20 on page 127 so that the representative can use these parts secure the load plates onto the floor.
Page 143: Planning For Power Requirements
• Remote force power off switch requirements • Power consumption and environment IBM cannot install the storage system if your site does not meet these power requirements. Attention: Implementation of surge protection for electronic devices as described in the EN 62305 standard or IEEE Emerald Book is recommended. If a lightning surge or other facility transient voltages occur, a surge-protection device limits the surge voltage that is applied at the storage system power input.
Page 144: Power Outlet Requirements
Minimum tolerated input voltage 180 RMS V AC Maximum tolerated input voltage 256 RMS V AC System maximum current rating 24/32 Amps (per PDU cord) 130 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 145: Power Connector Requirements
Table 44. Single-phase input voltages and frequencies (continued) Characteristic Voltage (single-phase) Wall breaker rating (1 ph) Feature codes AAS0, AAS5: 30 A Feature codes AAS1, AAS6: 30 A - 32 A Feature code AAS4: 32 A Steady-state input frequencies 50 ± 3 or 60 ± 3.0 Hz PLD input frequencies (<10 seconds) 50 ±...
Page 146: Power Consumption And Environmental Information
Unit of measure Base frame Expansion frame 1, 2 Peak electric power Kilowatt (kW) Model E05: ≤ 10.2 Model A01: ≤ 10.2 Model A05: ≤ 10.2 132 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 147 Table 47. Power consumption and environmental information for models A01, A05, and E05. (continued) Measurement Unit of measure Base frame Expansion frame Thermal load British thermal units ≤ 34800 ≤ 34800 (BTU) per hour Capacity of exhaust cubic meters per minute 44.2 51.8 (cubic feet per minute or...
Page 148: Planning For Environmental Requirements
You must meet specific operating environment requirements at all the air intake locations of your storage system. The operating points vary depending on the state of the system. The system can be in the following states: 134 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 149 • Powered on • Powered off • In storage Powered on Plan for the operating ranges and recommended operating points of the storage system. Table 49 on page 135 provides the operating ranges for your storage system when its power is on. Table 49.
Page 150: Corrosive Gasses And Particulates
Table 56. Operational shock levels Class Axis Vertical Notes: 1. g is the peak g level of an approximate half-sine pulse. 2. "pw" is the pulse width in milliseconds. 136 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 151: Contamination Information
Contamination information You must consider the air quality and contamination levels at your installation site. Airborne particulates (including metal flakes or particles) and reactive gases that act alone or in combination with other environmental factors, such as humidity or temperature, might pose a risk to the storage system hardware.
Page 152: Cooling The Storage Complex
30 inches of non-overlapping clearance (for total of 60 inches between the rear side of the frames on either side of the aisle.) 138 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 153: Planning For Safety
F = front Base = Base model 2 ft perforated tile 2 ft tile R = rear Exp = Expansion model Single Machine - 2 examples Row of Machines - 1 example F Base R F Base R F Exp R F Exp R F Exp R F Base R...
Page 154: Providing A Fire-Suppression System
You must locate your storage systems in a location that meets the network and communications requirements. Keep in mind the following network and communications issues when you plan the location and interoperability of your storage systems: 140 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 155 RSC. Remote support must be ready at the time of the initial installation of the DS8000. It is tested as part of the verification process that the installation is complete and ready for customer use. For internet-based remote support, you must open your firewalls.
Page 156 Fibre Channel access modes to the correct setting. See the IBM DS8000 Host Systems Attachment Guide for more information about Fibre Channel access modes. • Storage systems can connect to IBM SAN Volume Controller host systems. See the IBM DS8000 Host Systems Attachment Guide for more information.
Page 157: Chapter 7. Planning Your Storage Complex Setup
Chapter 7. Planning your storage complex setup During installation, IBM customizes the setup of your storage complex that is based on information that you provide in the configuration worksheets. Each time that you install a new storage system or management console, you must complete the configuration worksheets before installation by technical service representatives.
Page 158: Remote Support Settings
Assist On-Site (AOS) is available as a secure inbound remote service option. AOS provides a mechanism to establish a secure network connection to IBM over the internet by using SSL encryption. AOS can be installed on a customer gateway server in a DMZ or, if your security guidelines allow, it can run directly on the storage system.
Page 159: Control Switch Settings
Use this control switch setting only when you attach more than one DS8000 storage system to an AS/400 or IBM i host and the last three digits of the worldwide node name (WWNN) are the same on any of the storage systems.
Page 160 IBM Z high-performance FICON enhanced buffer management IBM Z high-performance FICON enhanced buffer management provides improved performance for multi-site configurations when writing data remotely (remote site recovery). 146 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 161: Chapter 8. Planning Data Migration
• How much data is to be migrated? Operating system • Is it a IBM Z or UNIX system? Consider using Remote Mirror and Copy functions such as Metro Mirror, Global Mirror, or some variation of a logical volume manager.
Page 162 Cost of migration migration DataCore SANsymphony storage venders appliance / service, appliances supported; migration application disruption cycles that are offloaded to install / remove to appliance appliance 148 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 163: Chapter 9. Planning For Security
NIST SP 800-131A requirements. Planning for data encryption The storage system supports data encryption by using either a local key manager, or IBM Security Guardium Key Lifecycle Manager key servers. Planning for encryption is a customer responsibility. There are three major planning components to the implementation of an encryption environment.
Page 164: Key Lifecycle Managers
IBM Security Guardium Key Lifecycle Manager V2.6 or later. • If your encryption key server runs on an IBM Z host LPAR with z/OS, use IBM Security Guardium Key Lifecycle Manager for z/OS V1.1.0.3 or later.
Page 165: User Accounts And Passwords
[BIOS], utility programs, device drivers, and diagnostics that are delivered with an IBM system) and other software updates in a timely manner from the ibm.com website (www.ibm.com) or from other electronic media, and following the instructions that IBM provides.
Page 166: Service Accounts
Managing secure service accounts About this task The DS Service GUI is a management console (HMC) interface for use by IBM Hardware Support. Access to the HMC is managed through the DS Service GUI. As an administrator you can manage users, user roles, and authentication methods.
Page 167: Planning For Nist Sp 800-131A Security Conformance
ID (customer) and password (cust0mer). Create additional administrative users with the role esshmccustomer as needed for administration tasks. 4. Add or modify other users for IBM Hardware support as needed using the esshmcserv role. When creating new users with this role the default user property not allow remote access, requiring IBM Hardware support to be at the console locally.
Page 168: Remote Authentication
• A bind user DN and password if Simple authentication is used. • Username attribute for logging in. • Group name attribute and group membership attribute. 154 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 169 Authentication Manager In remote authentication with a direct connection to LDAP server and RSA SecurID Authentication Manager, the DS8000 is configured for the first factor authentication on an LDAP server and the second factor authentication on the MFA server. To configure DS8000 storage system for remote authentication, see the topic titled Using remote authentication in the latest version of DS8900 documentation.
Page 170 156 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 171: Chapter 10. License Activation And Management
The management and activation of licensed functions are responsibilities that are associated with the role of your storage administrator. Management refers to the use of the IBM Entitled Systems Support (ESS) website to select a license scope and to assign a license value. You can complete these activities and then activate the function.
Page 172: Activation Of Licensed Functions
The initial enablement of any optional DS8000 licensed function is a concurrent activity (assuming that the appropriate level of microcode is installed on the storage system for the function). Note: Removal of a DS8000 licensed function to deactivate the function is non-disruptive, but takes effect at the next IML.
Page 173: Scenarios For Managing Licensing
• If you need to obtain your license keys from the IBM Entitled Systems Support (ESS) website, complete the following steps. a. Go to the IBM Entitled Systems Support (ESS) website. b. Click Log in. c. Enter your IBMid. d. Click Continue.
Page 174: Managing A Licensed Feature
250 TB plus the additional 100 TB that you just ordered. 4. Obtain the feature activation code for the licensed feature from your sales representative. 5. After you obtain the feature activation code for the licensed feature, enter it into the DS8000 Storage Management GUI.
Page 175: Appendix A. Accessibility Features
Accessibility features help users who have a disability, such as restricted mobility or limited vision, to use information technology products successfully. Accessibility features These are the major accessibility features associated with the IBM DS8000 series online product documentation. • You can use screen-reader software and a digital speech synthesizer to hear what is displayed on the screen.
Page 176 162 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 177: Appendix B. Warranty Information
Appendix B. Warranty information The statement of limited warranty specifies the warranty period, type of warranty service, and service level. See IBM Warranty Information for information on machine type models 5341. © Copyright IBM Corp. 2019, 2024...
Page 178 164 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 179: Appendix C. Ibm Equipment And Documents
Your shipment includes hardcopy installation instructions for the technical service representatives who install your storage system. Engineering changes (if applicable) IBM occasionally releases engineering changes (ECs) to correct problems or provide more support. If released, these ECs are included in your shipment for the technical service representative to install. ©...
Page 180: Customer Components
• A program temporary fix (PTF) USB flash drive for the operating system • Service documents USB flash drive, which includes the following documentation: DS8000 service documentation and the DS8000 parts catalog. 166 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 181: Appendix D. Configuration Worksheets
The configuration worksheets are frequently updated. To ensure that you use the latest version, download a spreadsheet file that contains all of the worksheets from IBM Support (https://www.ibm.com/support/ pages/node/6354259). Use the worksheets to specify the initial settings for your storage system. You can customize settings for company information, the management console network, remote support settings, notifications, power control, and control switch settings.
Page 182 168 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 183: Appendix E. Compliance Standards
NRTL agency listings), and other such derivative certifications according to corporate determinations and latest regional publication compliance standardized requirements. Regulatory Model ID (RMID, for control system base platform): AP2 / IBM Storage DS8000 (10th Generation) If no rack is included with this storage system, the MTM might be located within the hardware management console (HMC) interface, or on the head unit HMC chassis as a variable Print on Demand (PoD) label indicating its service identity.
Page 184 170 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 185: Appendix F. European Union General Data Protection Regulation Considerations
The products, services, and other capabilities described herein are not suitable for all client situations, and may have restricted availability. IBM does not provide legal, accounting, or auditing advice or represent or warrant that its services or products ensure that clients are in compliance with any law or regulation.
Page 186 172 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 187: Appendix G. Data Privacy
IBM data about the asset usage and configuration, but do not reflect private use of the asset. When diagnostics are sent to IBM in the case of a problem submission, that data is routed directly to a secured infrastructure, and only individuals with a need to know are given access while working to resolve your problem.
Page 188 174 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 189: Notices
This information was developed for products and services offered in the US. This material might be available from IBM in other languages. However, you may be required to own a copy of the product or product version in that language in order to access it.
Page 190: Trademarks
International Business Machines Corp., registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Copyright and trademark information website (www.ibm.com/legal/copytrade.shtml).
Page 191: Caution Notices
Safety notices Lists the danger and caution notices without labels, organized alphabetically by language. The following notices and statements are used in IBM documents. They are listed in order of decreasing severity of potential hazards. Danger notice definition A special note that calls attention to a situation that is potentially lethal or extremely hazardous to people.
Page 192 Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local regulations. In the United States, IBM has a process for the collection of this battery. For information, call 1-800-426-4333. Have the IBM part number for the battery unit available when you call.
Page 193 CAUTION: This product is equipped with a 3-wire (two conductors and ground) power cable and plug. Use this power cable with a properly grounded electrical outlet to avoid electrical shock. (C018) CAUTION: The product might be equipped with a hard-wired power cable. Ensure that a licensed electrician performs the installation per the national electrical code.
Page 194 • Each rack cabinet might have more than one power cord. – For AC powered racks, be sure to disconnect all power cords in the rack cabinet when directed to disconnect power during servicing. 180 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 195 – For racks with a DC power distribution panel (PDP), turn off the circuit breaker that controls the power to the system unit(s), or disconnect the customer’s DC power source, when directed to disconnect power during servicing. • Connect all devices installed in a rack cabinet to power devices installed in the same rack cabinet.
Page 196 PROTECTIVE EARTHING CONDUCTORS. The hole that the bolt or stud goes into where the terminal connector and the lock washer contact 182 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 197: Danger Notices
Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product. Do not open or service any power supply assembly.
Page 198 DANGER: Hazardous voltage, current, or energy levels are present inside any component that has this label attached. Do not open any cover or barrier that contains this label. (L001) (L003) 184 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 199 Notices 185...
Page 200 CAUTION: Pinch hazard. (L012) (L025) Attention: Refer to the Installation Planning Guide for additional explanation on configurations supported for given voltage groups and Power Cord information. (L025) (L026) 186 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 201: Vendor-Specific Uninterruptible Power Supply Safety Statements
Attention: For use at altitude 2000 m or lower. (L026) Text based labels Text Based Labels and / or Vendor-specific uninterruptible power supply safety statements These statements apply specifically to the vendor uninterruptible power supply (UPS). General caution statements • Do not use extension cords to connect to an AC outlet. •...
Page 202: Environmental Notices
(applicable to UPS and a remote battery supply not having a grounded supply circuit). Environmental notices This information contains all the required environmental notices for IBM Systems products in English and other languages. The IBM Systems Environmental Notices (https://www.ibm.com/docs/environmental-safety?
Page 203: Electromagnetic Compatibility Notices
Electromagnetic compatibility notices The following Class A statements apply to IBM products and their features unless designated as electromagnetic compatibility (EMC) Class B in the feature information. When attaching a monitor to the equipment, you must use the designated monitor cable and any interference suppression devices that are supplied with the monitor.
Page 204: Japan Electronics And Information Technology Industries Association (Jeita) Notice
This statement applies to products less than or equal to 20 A per phase. This statement applies to products greater than 20 A, single phase. This statement applies to products greater than 20 A per phase, three-phase. 190 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 205 求採取某些適當的對策。 CNS 15936 警告：為避免電磁干擾，本產品不應安裝或使用於住宅環境。 IBM Taiwan Contact Information: United Kingdom Notice This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.
Page 206: United States Federal Communications Commission (Fcc) Notice
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors, or by unauthorized changes or modifications to this equipment.
Page 207: Index
61 allocation methods 15 clusters, RAID disk groups 54 AS/400 LUN CoD 51 control switch settings 145 code Attachment to IBM Z 145 loading 9 auto-rebalance 65 updating 9 auxiliary volumes 65 cold weather procedures 107 availability features 51...
Page 208 EAM 56 feedback, sending xi earthquake preparedness 140 Fibre Channel earthquake resistance kit host adapters 87 required preparation for 121, 126 host adapters feature codes 87 194 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 209 86 Metro/Global mirror 105 I/O load, balancing 54 migrating data I/O plug order 52 selecting method 147 IBM Copy Services Manager Multiple incremental FlashCopy 72 copy services 17 Replication 17 IBM Spectrum Control 17 IBM Z HyperPAV 102 network settings 143 Index 195...
Page 210 140 safety 139 power connectors 131 storage complex setup 143 power outlets 130 weight 117 receiving area 108 point-in-time copy 105 service clearance 120 196 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 211 requirements (continued) storage image (continued) space 119 cooling 138 resource groups storage system copy services 77 architecture 2 RGL 77 implementation 2 RIO-G cable 86 service clearances 120 rotate capacity 15 storage-enclosure fillers 83 rotate volumes 15 storage, consolidating 55 System i control switch settings 145 safety...
Page 212 Parallel Access Volumes 102 transparent cloud tiering 103 z/OS Distributed Data Backup zHyperLink 103 zHyperLink I/O adapters feature codes z-synergy feature 103 zHyperLink cable feature codes 90 198 IBM Storage DS8000 (10th Generation): IBM Storage DS8000 (10th Generation) Introduction and Planning Guide...
Page 214 IBM® Printed in USA G10-I53-00...
