IBM TS2280
Setup, Operator, and Service Guide
Machine Type 3580 Model H8S
IBM
SC27-4649-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS2280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBM TS2280

Summary of Contents for IBM TS2280

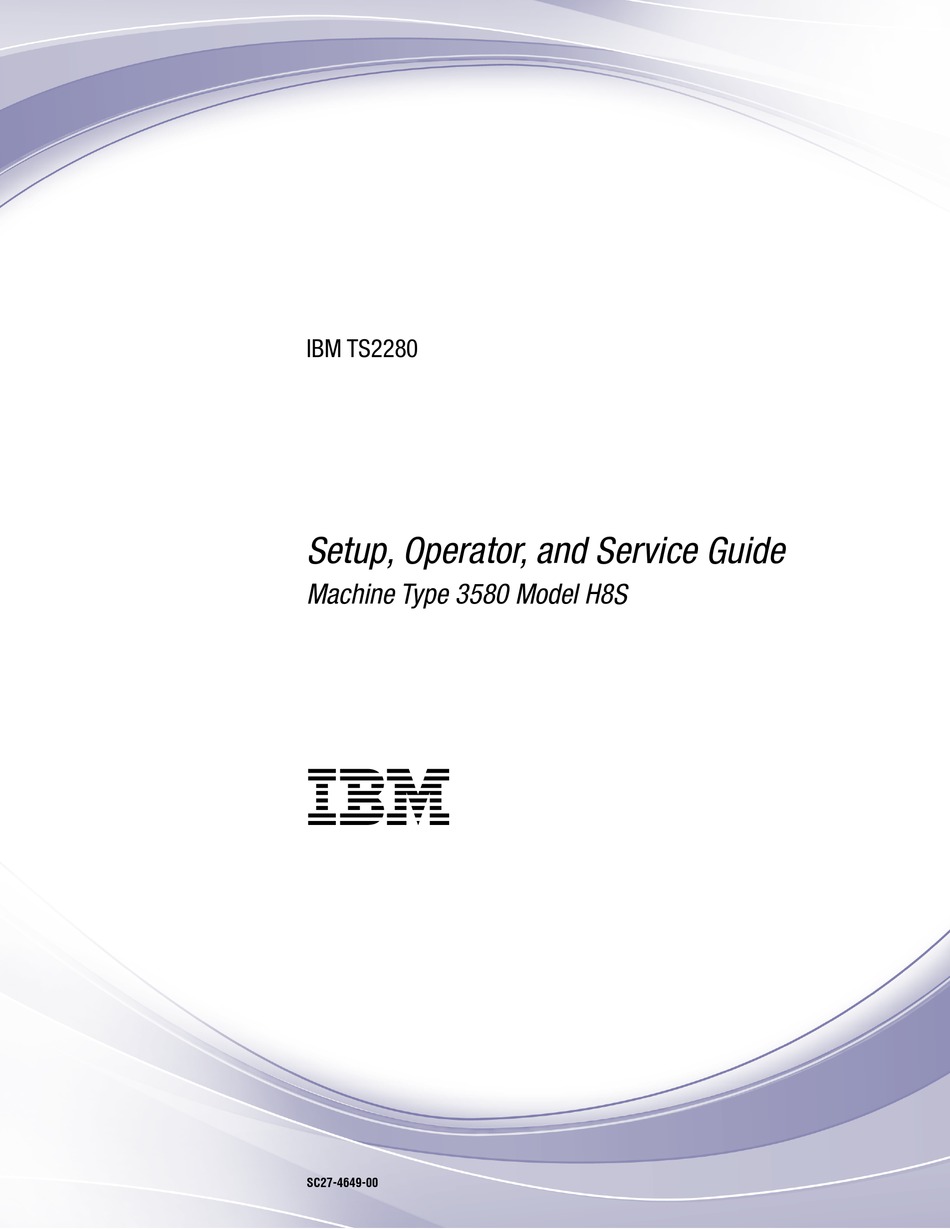

  • Page 1 IBM TS2280 Setup, Operator, and Service Guide Machine Type 3580 Model H8S SC27-4649-00...
  • Page 3 Released November 2017. This edition applies to the IBM TS2280 Tape Drive, SC27-4649-00, and to the subsequent releases and modifications until otherwise indicated in new editions. © Copyright IBM Corporation 2017.
  • Page 4 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 5: Read This First

    3. Click Customer Support and follow on-screen instructions. Sending us your comments Your feedback is important in helping IBM provide accurate and useful information. If you have comments or suggestions for improving this publication, send your comments by: v Emailing IBM: –...
  • Page 6 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 7: Table Of Contents

    . 10 Guidelines for bar code labels . . 43 Installing device drivers . . 10 Write-Protect switch . 43 Configuring the tape drive to a server/host . 10 Handling the cartridges . . 44 © Copyright IBM Corp. 2017...
  • Page 8 . 80 Index ....115 Removing the shelf from the rack . . 81 viii IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 9: Figures

    . . 81 Tape drive diagnostic page . . 35 Removing the screws that secure the cover and The IBM LTO Ultrium data cartridge . . 37 internal drive . . 84 Ultrium Data and WORM Tape Cartridges...
  • Page 10 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 11: Tables

    Nominal cartridge life: Load/unload cycles Replacement parts . . 73 Ultrium data cartridge compatibility with Power cords . . 74 Ultrium tape drive . . 39 Bar code label requirements for Ultrium tape drives and libraries . . 41 © Copyright IBM Corp. 2017...
  • Page 12 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 13: Safety Notices

    Most danger or caution notices contain a reference number (Dxxx or Cxxx). Use the reference number to check the translation in the IBM Systems Safety Notices, G229-9054 manual. The sections that follow define each type of safety notice and give examples.

  • Page 14: Completing The Safety Inspection Procedure

    Do not use refrigerant lines or connectors to lift, move, or remove the MRU. Use handholds as instructed by service procedures. (C016) Caution Do not connect an IBM control unit directly to a public optical network. The customer must use an additional connectivity device between an IBM control unit optical adapter (that is, fibre, ®...

  • Page 15: Class I Laser Product

    Figure 1. AC grounding diagram (50 Hz and 60 Hz) Class I laser product Before the library is used, review the following laser safety information. The product might contain a laser assembly that complies with the performance standards set by the US Food and Drug Administration for a Class I laser product.

  • Page 16: Rack Safety

    Attempting to move the drawer partially or out of the rack might cause the rack to become unstable or cause the drawer to fall out of the rack. (R001) IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 17: Power Cords

    (R002) Power cords For your safety, IBM provides a power cord with a grounded attachment plug to use with this IBM product. To avoid electrical shock, always use the power cord and plug with a properly grounded outlet. IBM power cords used in the United States and Canada are listed by Underwriter’s Laboratories (UL) and certified by the Canadian Standards Association (CSA).

  • Page 18: End Of Life (Eol) Plan

    The cord set should have the appropriate safety approvals for the country in which the equipment will be installed. IBM power cords for a specific country or region are usually available only in that country or region. End of life (EOL) plan This product is a purchased unit.

  • Page 19: Environmental Notices

    Environmental notices The environmental notices that apply to this product are provided in the Environmental Notices and User Guide, Z125-5823-xx manual. A copy of this manual is located on the publications CD. © Copyright IBM Corp. 2017...
  • Page 20 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 21: Preface

    IBM Ultrium Tape Drive Quick Reference, GC27-2278 illustrates how to install the drive. v IBM LTO Ultrium Tape Drive SCSI Reference, GA32-0450, gives information about the supported SCSI commands and protocol that govern the behavior of the SCSI interface for LTO drives. The SCSI reference also includes information about the TapeAlert flags that are supported.
  • Page 22 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 23: Introduction

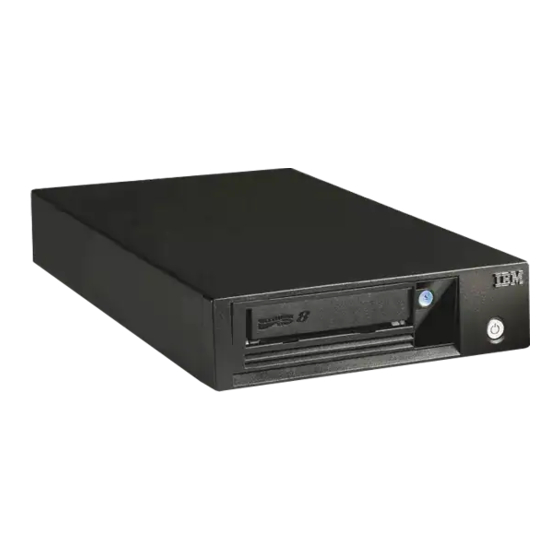

    Introduction The IBM TS2280 Tape Drive is a high-performance, high-capacity data-storage device that is designed to back up and restore open systems applications. It is the eighth generation in the Ultrium series of products. It is available with a Serial Attached SCSI interface (SAS). This model incorporates the Linear Tape-Open (LTO) IBM Ultrium 8 Half Height Tape Drive.

  • Page 24: Front Panel Of The Drive

    Rear panel of the drive Figure 4. Drive rear panel element descriptions - dual SAS ports Power receptacle Fan vent SAS connectors Ethernet connector (for drive status and service only) IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 25: Drive Performance

    Cartridge compatibility The TS2280 uses the IBM LTO Ultrium 12000 GB data cartridge and is compatible with the cartridges of its predecessor, the IBM Ultrium Tape Drive Generation 7. The drive completes these functions: v Reads and writes Ultrium 8 cartridges to Ultrium 8 format, including WORM and Data Encryption.

  • Page 26: Channel Calibration

    , Windows Server, Linux, and Solaris. Encryption requires current device drivers, available on the website https://www-945.ibm.com/support/fixcentral. For details, see the IBM Tape Device Drivers Encryption Support documentation, and the IBM LTO Ultrium Tape Drive SCSI Reference documentation. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 27: Inhibiting Firmware Down-Leveling

    Ethernet port The IBM TS2280 tape drive has a single 1 Gbps Ethernet port on the rear panel, with an RJ45 connector. The Default IP address is 169.254.0.3, but the drive’s IP address can be changed as needed. Refer to ITDT to see how to this change is made.

  • Page 28: Ibm Spectrum Archive

    IBM Spectrum Archive The IBM Spectrum Archive linear tape file system (previously known as LTFS) is a file system that works with LTO Generation tape technology to access data stored on an IBM tape cartridge. IBM Spectrum Archive uses the file system’s format and resources of the operating system (OS) on which it is running to graphically display the contents of a tape cartridge in the OS’s graphical user interface...

  • Page 29: Installation

    2. Locate the label on the bottom panel of the unit with the machine type, model number, and serial number of the unit. Make a note of these numbers and store them in an easily accessible place. If you must contact Technical Support, you are asked for these numbers. © Copyright IBM Corp. 2017...

  • Page 30: Verifying The Shipment

    Single-connector SAS wrap tool v Optional Rack Mount kit v The IBM TS2280 Tape Drive Quick Reference (GC27-2276-02) v The IBM TS2280 Tape Drive Setup, Operator, and Service Guide SC27-4649-00 v Documentation CD (includes library documentation, translated safety information, and translated warranty information).

  • Page 31: Installing The Sas Host Adapter Card (If Required)

    To install an adapter, refer to the instructions that accompany it, also to the section about host adapter installation in your server 's documentation. For a list of supported adapters and required interposers, visit the web at http://www.ibm.com/storage/lto. Connecting the SAS interface cable Each tape drive is required to have a dedicated bus to the initiator, referred to as point-to-point connection.

  • Page 32: Connecting Power

    If you intend to use the tape drive with a commercial software application, refer to that application 's installation instructions to install the device driver and configure the tape drive. If you do not intend to use the tape drive with a commercial software application, refer to the IBM Ultrium Device Drivers Installation and User 's Guide.
  • Page 33 ITDT communicates with the drive through the library to load and unload a test cartridge, exercising some library functions. v The tool scans the host bus and finds and displays for selection all IBM LTO devices. The tool does not display and allow for selection any non-IBM device.

  • Page 34: Registering For My Support

    Registering for My Support My Support registration provides email notification when new firmware levels are updated and available for download and installation. To register for My Support, visit the web at http://www.ibm.com/ support/mySupport IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 35: Operations

    “Diagnostic and maintenance functions” on page 21 lists the single-character codes that represent diagnostic or maintenance functions. To initiate a function, the unit must be in maintenance mode. The SCD is blank during normal operation. © Copyright IBM Corp. 2017...

  • Page 36: Status Lights

    Note: If a cartridge is loaded, the white Encryption status light is on when all the data on the cartridge is encrypted (excluding the label). LTO Ultrium 8 and Ultrium 7 cartridges only. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 37 Table 4. Meaning of status lights and single-character display (SCD) (continued) If the And the And the green amber Fault Encryption And the SCD And the SCD Ready Meaning Status Light Status Light is... dot is... Status is... is... Light is... Flashing On/Off The drive is reading from the tape,...

  • Page 38: Unload Button

    When you reach the character of the diagnostic or maintenance function that you want (see “Diagnostic and maintenance functions” on page 21), press and hold Unload for 3 seconds. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 39: Inserting A Tape Cartridge

    Table 5. Functions that the Unload Button completes (continued) Unload Button Function How to Initiate the Function Exit maintenance mode Press Unload once per second to increment the display character until displays. Then, press and hold Unload for 3 seconds. Maintenance mode is exited when the Ready light is On and the SCD becomes blank.

  • Page 40: Removing A Tape Cartridge

    Between the counts, the SCD displays random segments while the tape is rewinding into the cartridge. Push Unload to eject the cartridge when the Ready light stops flashing. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 41: Cleaning The Drive Head

    Cleaning the drive head Attention: When the drive head is cleaned, use the IBM LTO Ultrium cleaning cartridge (see “Ordering media supplies” on page 54). You might use another LTO cleaning cartridge, but it might not meet the standards of reliability that is established by IBM.

  • Page 42: Drive Status Web Page

    Tape Statistics (if a cartridge is loaded in the tape drive). v Engineering Error Log Click in the box by the title of the section to see the topic details. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 43: Diagnostic And Maintenance Functions

    ULT3580-HH8 Drive YX1013000128 Text Only version (for cut and paste) system time: 2015/08/18 09:06:39 drive time : 259 seconds YX1013000128 ULT3580-HH7 LTO7 F8E0 idle Figure 9. Drive Status web page - topic details The web page format is changed to text mode by selecting the “Text Only version” box near the top of the web page.

  • Page 44: Diagnostic And Maintenance Functions

    30 Test Head: Performs tests to ensure that the tape drive's “Function code H: Test head” on page 31 head and tape-carriage mechanics are working correctly. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 45: Entering Maintenance Mode

    Table 6. Diagnostic and maintenance functions (continued) Function Diagnostic or Maintenance Function Instructions Location Code Fast Read/Write Test: Performs tests to ensure that the “Function code J: Fast read/write test” on drive can read from and write to tape. page 32 Load/Unload Test: Tests the drive's ability to load and “Function code L: Load/unload test”...

  • Page 46: Function Code 1: Run Drive Diagnostics

    LTO Ultrium 8 tape drive with the same host interface (SAS or Fibre Channel). 1. Place the drive in Maintenance mode. For instructions, see “Entering Maintenance mode” on page 23. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 47: Function Code 3: Create Fmr Tape

    If the update fails, the tape drive posts an error code to the SCD. To determine the error, locate the code in Table 17 on page 65. The drive then unloads the FMR tape and exits maintenance mode after the cartridge is removed. Contact IBM technical support for problem determination or machine replacement.

  • Page 48: Function Code 5: Copy Drive Dump

    7. Insert a scratch (blank) data cartridge within 60 seconds, or the drive exits Maintenance mode. Ensure that the scratch cartridge is not write protected, or the tape drive exits maintenance mode. The SCD flashes the selection number while the function is completing. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 49: Function Code 6: Run Host Interface Wrap Test

    v If the copy operation completes successfully, the tape drive rewinds and unloads the tape, and exits Maintenance mode after the cartridge is removed. v If the copy operation fails, an error code displays in the SCD. To determine the error, locate the code in Table 17 on page 65.

  • Page 50: Function Code 7: Run Rs-422 Wrap Test

    Function code 7: Run RS-422 wrap test Note: This function is described here for information only. It is not supported on the IBM TS2260, TS2270, or the TS2280 tape drive. This test causes the drive to process a check of the circuitry and connector for the RS-422 interface. This connector supports the Library Drive Interface (LDI) and the Automation Drive Interface (ADI).

  • Page 51: Function Code 9: Display Error Code Log

    v If the tape drive fails to create the scratch tape, it displays an error code. To determine the error, see Table 17 on page 65. The tape drive then unloads the FMR tape, and exits Maintenance mode after the cartridge is removed. Function code 9: Display error code log Function code displays the last 10 error codes, one at a time (the codes are ordered;...

  • Page 52: Function Code F: Write Performance Test

    , requesting a cartridge. 4. Insert a scratch (blank) data cartridge. The SCD changes to a flashing and the tape drive runs the tests. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 53: Function Code H: Test Head

    v If no error is detected, the diagnostic test loops and begin again. To stop the loop, press Unload for 1 second and release. When the loop ends, temporarily displays in the SCD, and the tape drive exits Maintenance mode. v If an error is detected, the Fault light flashes and the drive posts an error code to the SCD.

  • Page 54: Function Code J: Fast Read/Write Test

    Approximate Run Time = 30 seconds per loop Total Number of Loops = 10 Function code tests the drive 's ability to load and unload a tape cartridge. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 55: Function Code P: Post Error Reporting Enabled

    Press Unload to stop the diagnostic test and exit Maintenance mode. Pressing Unload once stops the test at the end of the current test loop. Pressing Unload twice stops the test immediately. Wait for the drive to rewind the tape and unload the cartridge. Attention: Even though no data is written during this test, it is recommended that you use a blank (scratch) cartridge for this test.

  • Page 56: Function Code U: Post Error Reporting Disabled

    HTML web page. (If the drive’s IP address was changed, use that address instead.) The tape drive model and serial number are shown at the top of the page. A list of the maintenance functions is shown on the page. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 57: Tape Drive Diagnostic Page

    ULT3580-HH8 Drive YX1013000128 Figure 10. Tape drive diagnostic page Click the button next to the maintenance function, then click Run to start the maintenance function. If the tape drive is installed in a library, some of the maintenance functions cannot be run with the Ethernet procedure.
  • Page 58 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 59: Ultrium Media

    WORM (Write Once, Read Many) cartridge v Cleaning cartridge To ensure that your IBM Ultrium tape drive conforms to IBM's specifications for reliability, use only IBM LTO Ultrium tape cartridges. You can use other LTO-certified data cartridges, but they might not meet the standards of reliability that are established by IBM.
  • Page 60 The write-protect switch ( 4 in Figure 11 on page 37) prevents data from being written to the tape cartridge. For more information, see “Write-Protect switch” on page 43. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 61: Cartridge Compatibility

    Capacity Scaling To control the capacity of the cartridge (for example, to obtain a faster seek time) issue the SCSI command SET CAPACITY. For information about this command, refer to the IBM Ultrium Tape Drive SCSI Reference. WORM (Write Once, Read Many) cartridges Certain records retention and data security applications require a Write Once, Read Many (WORM) method for storing data on tape.

  • Page 62: Worm Media

    WORM requirements To add WORM capability to your IBM LTO Ultrium 8 drives, you must use either IBM Ultrium 8 12000 GB WORM tape cartridges or IBM Ultrium 7 6000 GB WORM tape cartridges. See “Ordering media supplies”...

  • Page 63: Cartridge Memory Chip (Lto-Cm)

    Note: The drive automatically ejects an expired cleaning cartridge without running the cleaning process. Replace the expired cleaning cartridge with a new cleaning cartridge and insert it into the drive. The IBM cleaning cartridges are valid for 50 uses. The cartridge's LTO-CM chip tracks the number of times that the cartridge is used.

  • Page 64: Cartridges And Volsers Compatible With The

    Tape cartridges are ordered with the labels included or with custom labels. To order tape cartridges and bar code labels, see “Ordering media supplies” on page 54. The bar code for usage in IBM tape libraries must meet predefined specifications. They include (but are not limited to):...

  • Page 65: Guidelines For Bar Code Labels

    Apply the following guidelines whenever using bar code labels: v Use only IBM-approved bar code labels on cartridges to be used in an IBM tape library. v Do not reuse a label or reapply a used label over an existing label.

  • Page 66: Handling The Cartridges

    Incorrect handling or an incorrect environment can damage cartridges or their magnetic tape. To avoid damage to your tape cartridges and to ensure the continued high reliability of your IBM LTO Ultrium Tape Drives, use the following guidelines: Providing training v Post procedures that describe appropriate media handling in places where people gather.

  • Page 67: Proper Acclimation And Environmental Conditions

    Figure 15. Tape cartridges in a Turtlecase v Never ship a cartridge in a commercial shipping envelope. Always place it in a box or package. v If you ship the cartridge in a cardboard box or a box of a sturdy material, ensure that you –...

  • Page 68: Completing A Thorough Inspection

    See 2 in Figure 18 on page 48. If the leader pin becomes dislodged, go to “Repositioning or reattaching a leader pin” on page 47. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 69: Examples Of Cartridge Problems

    The cartridge's case is damaged. There is a high possibility of media damage and potential loss. 1. Look for cartridge mishandling. 2. Use the IBM Leader Pin Reattachment Kit (part number 08L9129) to correctly seat the pin (see “Repositioning or reattaching a leader pin”). Then, immediately use data recovery procedures to minimize chances of data loss.

  • Page 70: Leader Pin In The Incorrect And Correct

    5. To rewind the tape, insert the cartridge manual rewind tool ( 1 in Figure 20 on page 49) into the cartridge's hub 2 and turn it clockwise until the tape becomes taut. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 71: Reattaching A Leader Pin

    Pin supplies (See 3 in Figure 21 on page 50). Leader pins and C-clips. Attention: v Use only the IBM Leader Pin Reattachment Kit to reattach the leader pin to the tape. Other methods of reattaching the pin damages the tape, the drive, or both.

  • Page 72: Leader Pin Reattachment Kit

    Turn the tool clockwise until you see the end of the tape inside the cartridge. Then, slowly turn the rewind tool counterclockwise to bring the tape edge toward the cartridge door 3 . IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 73: Winding The Tape Out Of The Cartridge

    3. Continue to turn the rewind tool counterclockwise until approximately 13 cm (5 in.) of tape hangs from the cartridge door. If necessary, grasp the tape and pull gently to unwind it from the cartridge. 4. Remove the rewind tool by pulling it away from the cartridge. Set the tool and the cartridge aside. Figure 23.

  • Page 74: Environmental And Shipping Specifications For Tape Cartridges

    Before you use a tape cartridge, acclimate it to the operating environment for 24 hours or the time necessary to prevent condensation in the drive. The time varies, depending on the environmental extremes to which the cartridge was exposed. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 75: Disposing Of Tape Cartridges

    The best storage container for the cartridges (until they are opened) is the original shipping container. The plastic wrapping prevents dirt from accumulating on the cartridges and partially protects them from humidity changes. When you ship a cartridge, place it in its jewel case or in a sealed, moisture-proof bag to protect it from moisture, contaminants, and physical damage.

  • Page 76: Ordering Media Supplies

    IBM Business Partner by specifying Machine Cartridge (with attached labels) Type 3589 Model 571. You can also order through an IBM-authorized distributor, or online at: http://www-1.ibm.com/storage/tape/lto IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 77 Supply Item Specify the VOLSER characters that you want. 20-PACK IBM Ultrium 7 6000 GB WORM Tape Order the cartridge from your IBM Sales Representative or Cartridge (without labels) any authorized IBM Business Partner by specifying Machine Type 3589 Model 671.
  • Page 78 IBM LTO Ultrium 2 200 GB Data Cartridge Order as part number 08L9870 through an IBM-authorized distributor, or online at: http://www-1.ibm.com/storage/ Order VOLSER labels separately (see “Ordering bar tape/lto code labels” on page 57). IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 79: Ordering Bar Code Labels

    The LTO Ultrium Tape Drives do not require cartridge bar code labels. However, if you use your data cartridges or cleaning cartridges in an IBM tape library product, you might need cartridge bar code labels if your tape library product requires them (see Table 11 on page 41). You can order these labels separately from the IBM data cartridges and cleaning cartridges.
  • Page 80 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 81: Troubleshooting

    Procedure 1: Determining firmware level and capturing drive dump Customers are responsible for updating Firmware. For optimum performance, the customer must obtain the current level of firmware for the unit by downloading the firmware from http://www.ibm.com/ support/fixcentral. © Copyright IBM Corp. 2017...

  • Page 82: Procedure 2: Inspecting A Cartridge For Damage

    For instructions about updating firmware from a server that uses an IBM tape device driver, refer to the IBM Tape Device Drivers Installation and User 's Guide.

  • Page 83: Procedure 3: Checking Sas Host Connections

    It is possible that your other cartridges might also be damaged. 2. If your cartridge does not eject properly, contact your service representative. (IBM service personnel must go to Appendix E, “Information for trained service personnel,” on page 83.) Procedure 3: Checking SAS host connections Check the host connections for your drive by following the steps.

  • Page 84: Resolving Media-Related Problems

    Product Data) area in NVRAM. Any failures that SARS detects are reported as TapeAlert flags on the server (see IBM LTO Ultrium Tape Drive SCSI Reference). Attention: If you insert the IBM LTO Ultrium Data Cartridge into another manufacturer 's drive, the SARS data in the cartridge memory might become lost or invalid.

  • Page 85: Replacing The Tape Drive

    PART NUMBER 19P5941 ATTENTION: 1. A Repair ID tag maintains the original serial number record of the machine and allows IBM to entitle the machine for future maintenance or warranty service. Mail in exchange requires the completion and securing a Repair ID tag (part number 19P5941) to the replacement unit.
  • Page 86 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 87: Appendix A. Error Codes And Messages

    2. Turn power off/on the tape drive to see whether the problem repeats. 3. Replace the tape drive if the problem persists. The error code clears when you place the tape drive in maintenance mode. © Copyright IBM Corp. 2017...
  • Page 88 Drive does not write over existing data sets on a WORM cartridge. Ensure that you are appending data sets on WORM media rather than attempting to write over existing data sets. If the tape cartridge is the correct media type, complete this action: IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 89 Table 17. Error codes on the Single-character Display (continued) Error Code Cause and Action Problems with Writing Data If the problem occurred while the tape drive was writing data to the tape, retry the operation with a different cartridge: v If the operation succeeds, the original cartridge was defective. Copy data from the defective cartridge and discard it.
  • Page 90 RS-422 connection. See “Function code 7: Run RS-422 wrap test” on page 28 or refer to the library procedures to isolate the problem to the drive. The error code clears when you place the tape drive in Maintenance mode. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 91 Table 17. Error codes on the Single-character Display (continued) Error Code Cause and Action Degraded operation. The tape drive determined that a problem occurred which degraded the operation of the tape drive, but it did not restrict continued use. If the problem persists, determine whether the problem is with the drive or the media.
  • Page 92 1. Check the host application to ensure that the host application is providing the correct encryption key. v Refer to the IBM LTO Ultrium Tape Drive SCSI Reference documentation for the sense data that is returned for an encryption operation.

  • Page 93: Appendix B. Tapealert Flags

    TapeAlert flags from a tape drive through the host interface. The server reads the flags from Log Sense Page 0x2E. Refer to the IBM LTO Ultrium Tape Drive SCSI Reference for the list of TapeAlert flags that are supported by this tape drive.
  • Page 94 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 95: Appendix C. Ordering Optional Features, Replacement Parts, And Power Cords

    3.0 m Mini-SAS HD/Mini-SAS 2x Cable Replacement parts Table 19. Replacement parts Part Number Description 01PL152 TS2280 (3580-H8S) Half Height SAS Bridgebox CRU - dual SAS ports 00VJ140 2 m SAS/Mini-SAS 1x Cable 00VJ139 2 m Mini-SAS/Mini-SAS 1x Cable 95P6566...
  • Page 96 Malagasy, Mali, Martinique, Mauritania, Mauritius, Monaco, Morocco, Mozambique, Netherlands, Netherlands Antilles, New Caledonia, Niger, Norway, Poland, Portugal, Romania, Russia, Saudi Arabia, Senegal, Spain, Sweden, Sudan, Syria, Togo, Tunisia, Turkey, Yugoslavia, Zaire, Zimbabwe, Vietnam IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 97 Table 20. Power cords (continued) Description, Feature Plug Standard Country or Region Index Number in Code (FC), and Part Reference Figure 28 on page 77 Number (PN) Denmark DK2-5A Denmark v 2.8 m, 250 V v FC 9821 v PN 39M5130 South Africa SABS 164 Bangladesh, Burma, Pakistan, South Africa, Sri Lanka...

  • Page 98: Power Cords

    The figure shows the plugs that are available on the power cords in “Power cords” on page 74. Match the index number that is beside each plug to the index number in Table 20 on page 74. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 99: Types Of Receptacles

    Figure 28. Types of receptacles Appendix C. Ordering optional features, replacement parts, and power cords...
  • Page 100 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 101: Appendix D. Installing A 19-Inch Rack Mount Kit (Optional)

    (For fixed drawers.) This drawer is a fixed drawer and must not be moved for servicing unless specified by manufacturer. Attempting to move the drawer partially or completely out of the rack can cause the rack to become unstable or cause the drawer to fall out of the rack. © Copyright IBM Corp. 2017...

  • Page 102: Verify Kit Contents

    1. Decide at what level you want to install the shelf. The 3580 requires two units (EIAs) of rack space (see 2 in Figure 29 on page 81). IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 103: Removing The Shelf From The Rack

    Note: All vertical rack measurements are given in rack units (U). One U is equal to 4.45 cm (1.75 in.). The U levels are marked on labels on one front mounting rail and one rear mounting rail. 2. With the sides and back of the shelf facing up, carefully lift the shelf into the rack between the front and back rack rails with the shelf flanges behind the front rack rails.
  • Page 104 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 105: Appendix E. Information For Trained Service Personnel

    Appendix E. Information for trained service personnel Attention v It is strongly recommended that the drive and stuck tape be returned to IBM for removal and recovery. v If the cartridge in the drive is an INPUT tape containing ACTIVE or 'ONLY COPY' data (i.e., there is no backup), eject commands issued at the host fail to unload the tape, and power-cycling the drive fails to eject the cartridge, make no further attempts to unload this tape.

  • Page 106: Removing The Screws That Secure The Cover And

    5. Return the unit to its upright position. 6. Gently push the drive 's rear panel to remove the chassis from the cover (see Figure 32 on page 85). IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 107: Step 2. Removing The Internal Drive

    Step 2. Removing the internal drive Figure 32. Removing cables from the internal drive 1. Unplug the SAS interface cable and the ethernet interface cable ( 1 and 2 in Figure 32) from the drive. Disconnecting the internal SAS interface cable disconnects both the SAS interface and electrical power from the drive.

  • Page 108: Manually Removing A Tape Cartridge

    Attention v The best solution for recovering data on a damaged cartridge is to send it to IBM for professional data recovery. v Before this procedure is used, you must exhaust all other means of removing the tape cartridge from the drive.

  • Page 109: Before You Begin

    v DO NOT TOUCH the magnetic tape or tape path. Both are sensitive to the oil and salt from your skin. Use clean, lint-free gloves when working around magnetic tape or the tape path components. v Electrostatic-sensitive components: Consider using an ESD Kit. v After you remove the tape cartridge, advise the customer to copy the data to another cartridge and to remove this tape cartridge from service.

  • Page 110: Tape Spooled Off Supply Reel

    5. Turn the supply reel ( 4 in Figure 36 on page 89) clockwise, allowing the moistened tape to adhere to the hub as it winds around the supply reel (inside the cartridge). IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 111: Rewinding Tape Into Cartridge

    Figure 36. Rewinding tape into cartridge Loader motor worm gear Takeup reel motor Outer guide rail Supply reel motor WARNING: DO NOT TOUCH 6. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape guiding rollers.

  • Page 112: Tape Pulled From Or Broken Near Leader Pin

    7. Rotate the threader intermediate gear ( 1 in Figure 37) counterclockwise until the leader block is in front of the read/write head. This action moves the LBA out of the cartridge. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 113: Tape Broken In Mid-Tape

    Figure 38. Leader block assembly (LBA) Loader motor worm gear Leader block assembly (LBA) 8. Rotate the loader motor worm gear ( 3 in Figure 37 on page 90) counterclockwise as viewed from the front of the drive until it stops. 9.

  • Page 114: Tape Tangled Along Tape Path

    “Tape pulled from or broken near leader pin” on page 90 “Tape broken in mid-tape” on page 91 2. Set the drive on its left side with the head and tape path facing up. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 115: No Apparent Failure Or Damage To Tape

    Figure 40. Rewinding tape into cartridge Loader motor worm gear Takeup reel motor Outer guide rail Supply reel motor WARNING: DO NOT TOUCH 3. Turn the supply reel ( 4 in Figure 40) clockwise. 4. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape guiding rollers.

  • Page 116: Rewinding Tape Into Cartridge

    ( 1 in Figure 42 on page 95) and slowly rotate the threader mechanism gear ( 2 in Figure 42 on page 95) clockwise. This action draws the tape leader block assembly (LBA) into the cartridge. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 117: Drive With Cover Removed To Reveal Gear Train

    Figure 42. Drive with cover removed to reveal gear train. Threader Threader Loader motor worm intermediate gear mechanism gear gear 5. As the leader pin is secured in the cartridge, you hear the leader pin retention spring clips click into place.

  • Page 118: Replacing The Internal Drive

    3. Align the four screw holes in the cover by the feet with the screw holes in the chassis. 4. Replace the 4 screws by the feet. 5. Reconnect all cables to the rear panel of the unit. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 119: Notices

    This information was developed for products and services offered in the US. This material might be available from IBM in other languages. However, you may be required to own a copy of the product or product version in that language in order to access it.
  • Page 120 Statements regarding IBM's future direction or intent are subject to change or withdrawal without notice, and represent goals and objectives only. All IBM prices shown are IBM's suggested retail prices, are current and are subject to change without notice. Dealer prices may vary.

  • Page 121: Trademarks

    IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this information with a trademark symbol ((R) or (TM)), these symbols indicate U.S.

  • Page 122: Electronic Emission Notices

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors, or by unauthorized changes or modifications to this equipment.

  • Page 123: Germany Electromagnetic Compatibility Directive

    Grenzwerte der EN 55022 / EN 55032 Klasse A ein. Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung von IBM verändert bzw.

  • Page 124: Taiwan Class A Statement

    This statement explains the Japan JIS C 61000-3-2 product wattage compliance. This statement explains the Japan Electronics and Information Technology Industries Association (JEITA) statement for products less than or equal to 20 A per phase. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 125: Korean Electromagnetic Interference (Emi) Statement

    This statement explains the JEITA statement for products greater than 20 A, single phase. This statement explains the JEITA statement for products greater than 20 A per phase, three-phase. Korean Electromagnetic Interference (EMI) Statement This explains the Korean Electromagnetic Interference (EMI) statement. Russia Electromagnetic Interference Class A Statement This statement explains the Russia Electromagnetic Interference (EMI) statement.
  • Page 126 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 127: Glossary

    A laser device that is specialized for scanning and reading bar codes and © Copyright IBM Corp. 2017...
  • Page 128 Contrast with A word to call attention to possible lethal attention and danger. harm to people. Contrast with attention and caution. Customer engineer; field engineer; service representative. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 129 data Any representations such as characters or differential analog quantities to which meaning is or See High Voltage Differential (HVD). might be assigned. direct access storage A storage device in which the access time data buffer The storage buffer in the control unit. is independent of the location of the data.
  • Page 130 200 GB per cartridge and a native loaded from an alterable medium and sustained data transfer rate of 35 MB per more adaptable to change than pure second. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 131 SCSI Bus High Voltage Differential The informal name for the fifth-generation Hertz (cycles per second). version of the IBM Ultrium Tape Drive. The Generation 5 drive has a native storage capacity of up to 1500 GB per cartridge and a native sustained data IBM Spectrum Archive transfer rate of 140 MB per second.
  • Page 132 Linear Tape File System (LTFS) See IBM Spectrum Archive. master file A file that is used as an authority in a IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 133 To assign an I/O device with a request to media-type identifier the operator. Pertaining to the bar code on the bar code label of the IBM Ultrium Tape Cartridge, Microprocessor. a 2-character code, L1, that represents Millisecond. information about the cartridge. L identifies the cartridge as one that can be Message.
  • Page 134 FRUs to replace to repair the hardware. Power supply. Serial attached SCSI interface. Power. scratch cartridge A data cartridge that contains no useful data, but can be written to with new data. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 135 SCSI Small computer system interface. special feature A feature that can be ordered to enhance segment the capability, storage capacity, or A part. performance of a product, but is not Select. essential for its basic work. serialize Service representative, see also CE. To change from parallel-by-byte to SRAM serial-by-bit.
  • Page 136 RAS, and engineering. word A character string that is convenient for some purpose to consider as an entity. Write Write command. world trade. External register. External register address register. IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...

  • Page 137: Index

    FMR tape 28 firmware Diagnostic, tape drive 34 Maintenance Mode inhibiting down-leveling 5 diagnostics 10 entering 23 Firmware Diagnostics 34 exiting 23 determining level 59 clear error code log 29 Maintenance, tape drive 34 © Copyright IBM Corp. 2017...
  • Page 138 5 WORM 40 RS-422 Wrap Test 28 WORM (Write Once, Read Many) 39 Write Once, Read Many (see WORM) 39 Write Performance Test 30 IBM TS2280: Setup, Operator, and Service Guide Machine Type 3580 Model H8S...
  • Page 139 IBM business partner, or your authorized remarketer. When you send comments to IBM, you grant IBM a nonexclusive right to use or distribute your comments in any way it believes appropriate without incurring any obligation to you. IBM or any other organizations will only use the personal information that you supply to contact you about the issues that you state on this form.
  • Page 140 NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO. 40 ARMONK, NEW YORK POSTAGE WILL BE PAID BY ADDRESSEE IBM Corporation Building 9032-2 Department GZW Information Development 9000 South Rita Road Tucson, AZ USA 85744-0002...
  • Page 142 IBM® Part Number: 01PL139 Printed in USA SC27-4649-00...

Table of Contents

Save PDF
