Management module input/output connectors
The management module has the following I/O connectors:
v One video
®
v One PS/2
keyboard
v One PS/2 mouse
v One 10/100 Mbps Ethernet for remote console and management

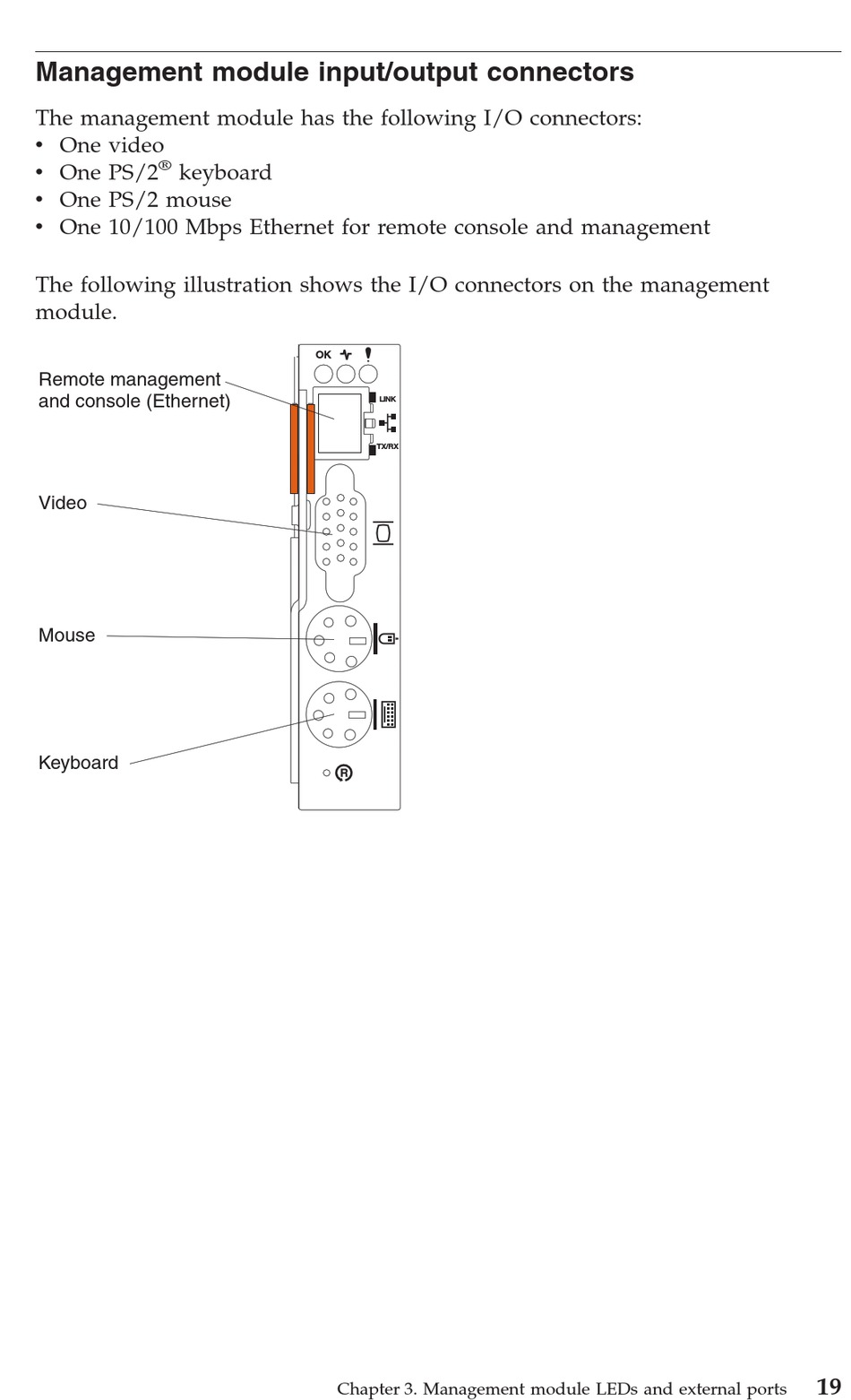

The following illustration shows the I/O connectors on the management
module.
Remote management
and console (Ethernet)
Video
Mouse
Keyboard
OK
LINK
TX/RX
Chapter 3. Management module LEDs and external ports
19
