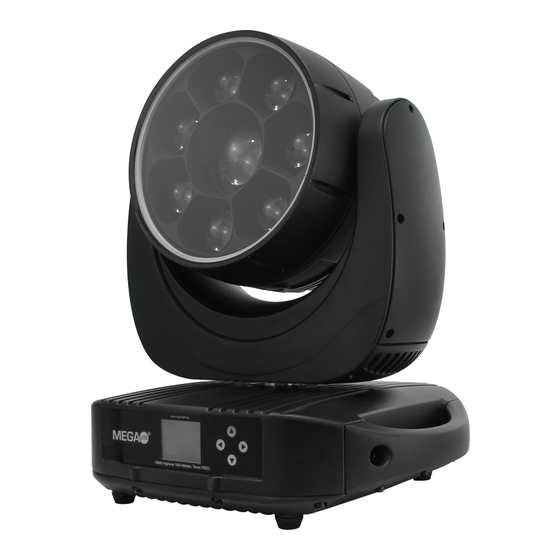

Mega Lite Outerbot WASH 340 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL

Table of Contents

Safety Information.........................2
What's Included.............................2
Specifications................................3
Main Power Connection................4
DMX Connection...........................4
Display Control .............................5
DMX Profile ..................................8
Size & Weight................................15
Segments......................................16
Cleaning & Maintenance...............16
Warranty........................................17
Customer Service.........................18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Outerbot WASH 340 and is the answer not in the manual?

Questions and answers

Related Manuals for Mega Lite Outerbot WASH 340

Summary of Contents for Mega Lite Outerbot WASH 340

  • Page 1: Table Of Contents

    USER MANUAL Table of Contents Safety Information......2 What’s Included......2 Specifications........3 Main Power Connection....4 DMX Connection......4 Display Control ......5 DMX Profile ........8 Size & Weight........15 Segments........16 Cleaning & Maintenance....16 Warranty........17 Customer Service......18...

  • Page 2: Safety Information

    What is Included 1pc Outerbot Wash 340 fixture 1pc Power Cable 2pc Quick Release Clamp Mount...

  • Page 3: Specifications

    Specifications Part Numbers Fixture 1313 - Outerbot Wash 340 Mechanical Specifications Housing: Die Cast Aluminum IP Rating: IP65 Fastening System: Quick Release Clamp Mount, Bidirectional Power Connection: Seetronics SACX3FX IP 65 Panel Mount Connection Input Signal Connection: 5 Pin XLR In and Out & Artnet RJ45 In and Out Pan Movement: 540°...

  • Page 4: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. (F6.5A 250V) This device is equipped with auto switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz Power Link max 6 units at 110V and 12 units at 220V Cable USA...

  • Page 5: Display Control

    Display Control Main Control (Up) The control board on the fixture base is your interface to access and control all the functions on the unit. The LCD display gives you a code view of the options ® and functions. The following will explain each function. (Back) (Enter) (Down)
  • Page 6 Main Menu OPTIONS: Fixture Settings ADDRESS PAN INVERT: Inverts heads Pan movement CHANNEL MODE TILT INVERT: Inverts heads Tilt movement PERFORMANCE: Fixture cooling settings RUN MODE STUDIO: LED Intensity will decrease fan noise at 45dB OPTIONS POWER: LED Intensity at max fan always engaged LIVE: Fan will engage as needed BLACKOUT: LED will turn off when head is in motion DIMMER: Dimming setting 0-4...
  • Page 7 Main Menu EDIT: Fixture Editor for programmed Scenes or Chase EDIT 1: Edit 1 or 2 can be played back on the Runmode section of the display EDIT control. under custom 1 or custome 2 MANUAL STEP: Select from a single step scene or multiple step chase. (1-30) Select fixture attributes that would like to be adjusted INFO PAN:...

  • Page 8: Dmx Profile

    DMX Profile Outerbot Wash 340 25 CH 30 CH 37 CH TOUR TR16 Function Description Value Init 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 Pan Tilt Speed Pan & Tilt Speed (fast to slow)
  • Page 9 No Function Macro 1 (led intensity must be activated) 10-13 Macro 2 (led intensity must be activated) 14-17 Macro 3 (led intensity must be activated) 18-21 Macro 4 (led intensity must be activated) 22-25 Macro 5 (led intensity must be activated) 26-29 Macro 6(led intensity must be activated) 30-33...
  • Page 10 Ring Intensity Red Ring 0-255 Ring Intensity Green Ring 0-255 Ring Intensity Blue Ring 0-255 No Function Red Ring 10-14 Green Ring 15-19 Blue Ring 20-24 Yellow Ring 25-29 Magenta Ring 30-34 Cyan Ring 35-39 White Ring 40-44 Violet Blue Ring 45-49 Light Blue Ring 50-54...
  • Page 11 No Function 31 CH Macro 1 (led intensity must be activated) 10-13 Function Description Value Init Macro 2 (led intensity must be activated) 14-17 0-255 Macro 3 (led intensity must be activated) 18-21 Pan Fine Pan Fine 0-255 Macro 4 (led intensity must be activated) 22-25 Tilt Tilt...
  • Page 12 Rotation Index 0-120 Stop 121-125 Prism Shake (slow to fast) 126-165 Center Prism Rotation Stop 166-170 Prism Clockwise Rotation (fast to slow) 171-210 Stop 211-215 Prism Counter Clockwise Rotation (slow to fast) 216-255 Ring Intensity Red Ring 0-255 Ring Intensity Green Ring 0-255 Ring Intensity...
  • Page 13 52 CH No Function PIXEL Function Description Value Init Ring Macro 1 10-23 0-255 Ring Macro 2 24-37 Pan Fine Pan Fine 0-255 Ring Macro 3 38-51 Tilt Tilt 0-255 Ring Macro 4 52-65 Tilt Fine Tilt Fine 0-255 Ring Macro 5 66-79 Pan Tilt Speed Pan &...
  • Page 14 27 CH Wine Red Ring 55-59 HSIC Function Description Value Init May Green Ring 60-64 0-255 Reseda Green Ring 65-69 Pan Fine Pan Fine 0-255 Blue Lilac Ring 70-74 Tilt Tilt 0-255 Moss Green Ring 75-79 Tilt Fine Tilt Fine 0-255 Signal Violet Ring 80-84...

  • Page 15: Size & Weight

    Size and Weight 14.87” 2.75” 10.5” 11.87” 19.12” 30.0000 4.5” 4.8” 14.5” 16.5” Fixture Size: 16.5” X 14.5” X 19.12” 56lb (25.40 kg) Fixture Weight: Packaged Size: 21” X 18.5” X 23.5” Packaged Weight: 57.5lb 26.08 kg)

  • Page 16: Segments

    Segment Ring Center 30.0000 Pan & Tilt: DMX Values: 0 Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries, if you have doubts concerning the safety do not install. 3.

  • Page 17: Warranty

    General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2.

  • Page 18: Customer Service

    Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service department. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
