Kimball EVERYSPACE Assembly Instructions Manual

EVERYSPACE
Height Adjustable Return

Tools Required

•
Box Cutter/Utility Knife
•
Cordless Drill w/#2 Phillips head bit drive
•
M5 Allen key
•
Level

Hardware Required

2 - Single or double sided base cabinets
1 - Storage base assembly
2 - Shroud assemblies
2– Flat mounting plates
2 one side, 4 two side return - Height adjustable leg
16 - #8 X 1 1/4" pan head screws
12 - #8 x 1" pan head screws
23 - #8 x 5/8" pan head screws
8 one side, 16 two side return - M6 x 25mm Machine screws
16 - #10 x 1 1/4" flat head screws
M4 x 15 Connecting bolts for ganging
M4 Connecting sleeve for ganging
Installation
1. Using a knife open boxes removing all components careful-

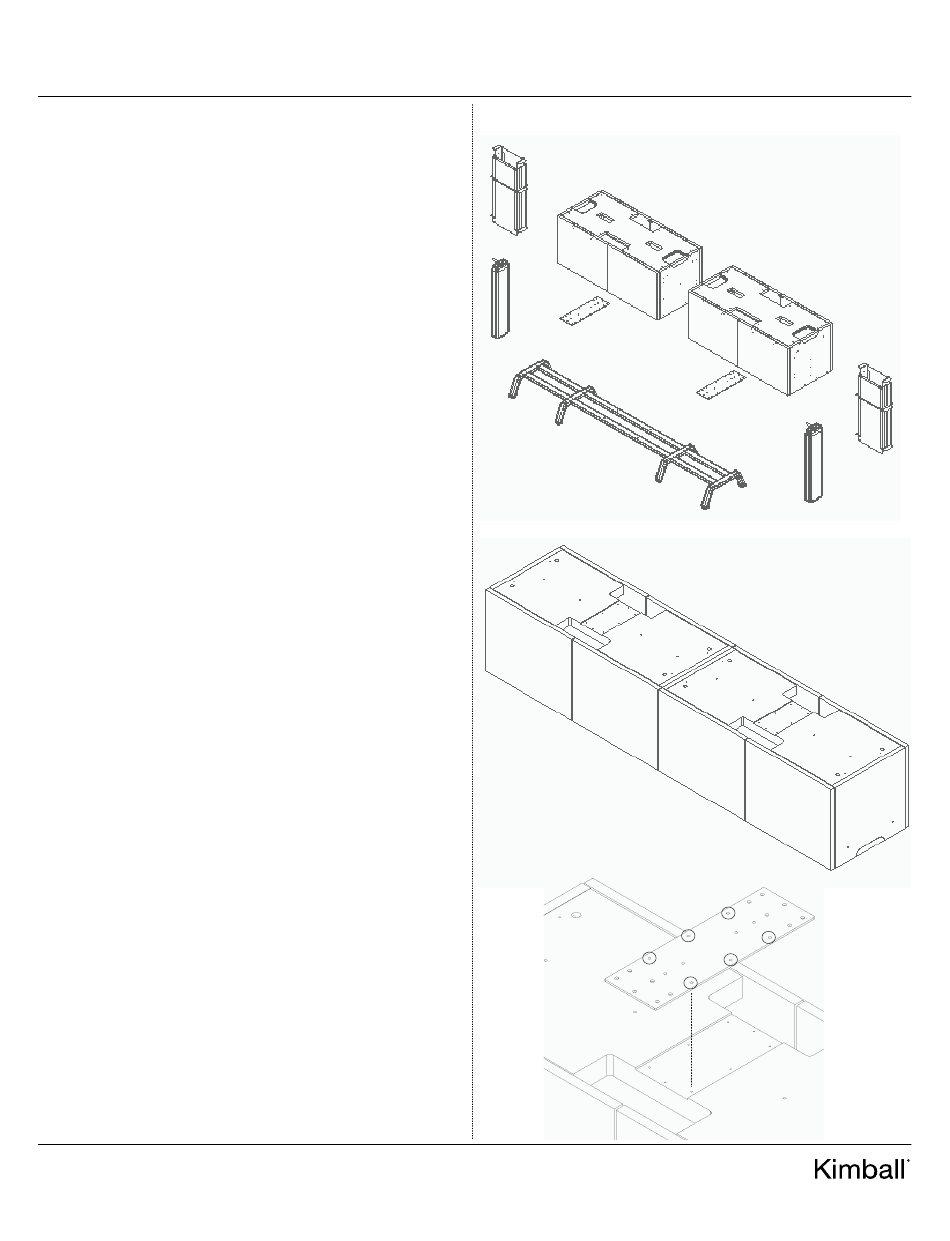

ly and place aside. See components in Figure A and hard-
ware required.
2. Carefully place the left and right cabinets on their top so
that the bottom is facing up. Align and square the end pan-
els so everything is flush, using the provided ganging hard-
ware secure and fasten the two cabinets together. See Fig-
ure B.
3. With the cabinets still on their top, place the two flat
mounting plates in the machined area of the bottom panel
and secure the flat mounting plates to the bottom of each
cabinet through the holes marked with #8 x 1" pan head
screws. See Figure C.
4. Attach the base assembly by aligning the (4) outer holes in
the metal feet with the predrilled holes in the bottom panel.
Using the #10 x 1 1/4" flat head screws, drive them in to
the bottom panel. See Figure D for hole locations. With
the outer 4 screws secure, drive and secure the remaining
(12) #10 x 1 1/4" flat head screws through the remaining
holes in the metal feet and in to the bottom panel.
5. With all #10 x 1 1/4" screws secure, insert and secure the
rest of the frame to the bottom of the cabinets with the #8 x
5/8" pan head screws provided. See Figure E.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent. If you have
any questions concerning these instructions, please call Kimball Customer Care.
Part 3558009, Revision -
™

Figure C

Assembly Instructions

Figure A

Figure B

1
