Kimball EVERYSPACE Assembly Instructions

EVERYSPACE

Data Beam Connectors

Tools Required

•
Box Cutter/Utility Knife
•
Drill and hand screwdriver w/#2 Phillips head bit drive
•
M4 & M5 Allen hex key

Hardware Required (included)

1 - Data Beam Short/Tall Connector Posts (L,X,T,V,Y)
1 - T-Leg (short/tall)
1 - End Trim
1– Extrusion Assembly (48,60,72)
2 - Data Covers
2 - Pan Head Philips 10-32 X 2"
2 - Flat Washer 10-32
2 - Connector Bolt 1/4-20 X 30
2 - Connector Nuts 1/4-20 X 17
2 - Attachment Plates
6 - Button Head Screws M8-1.25 X 14mm

Installation

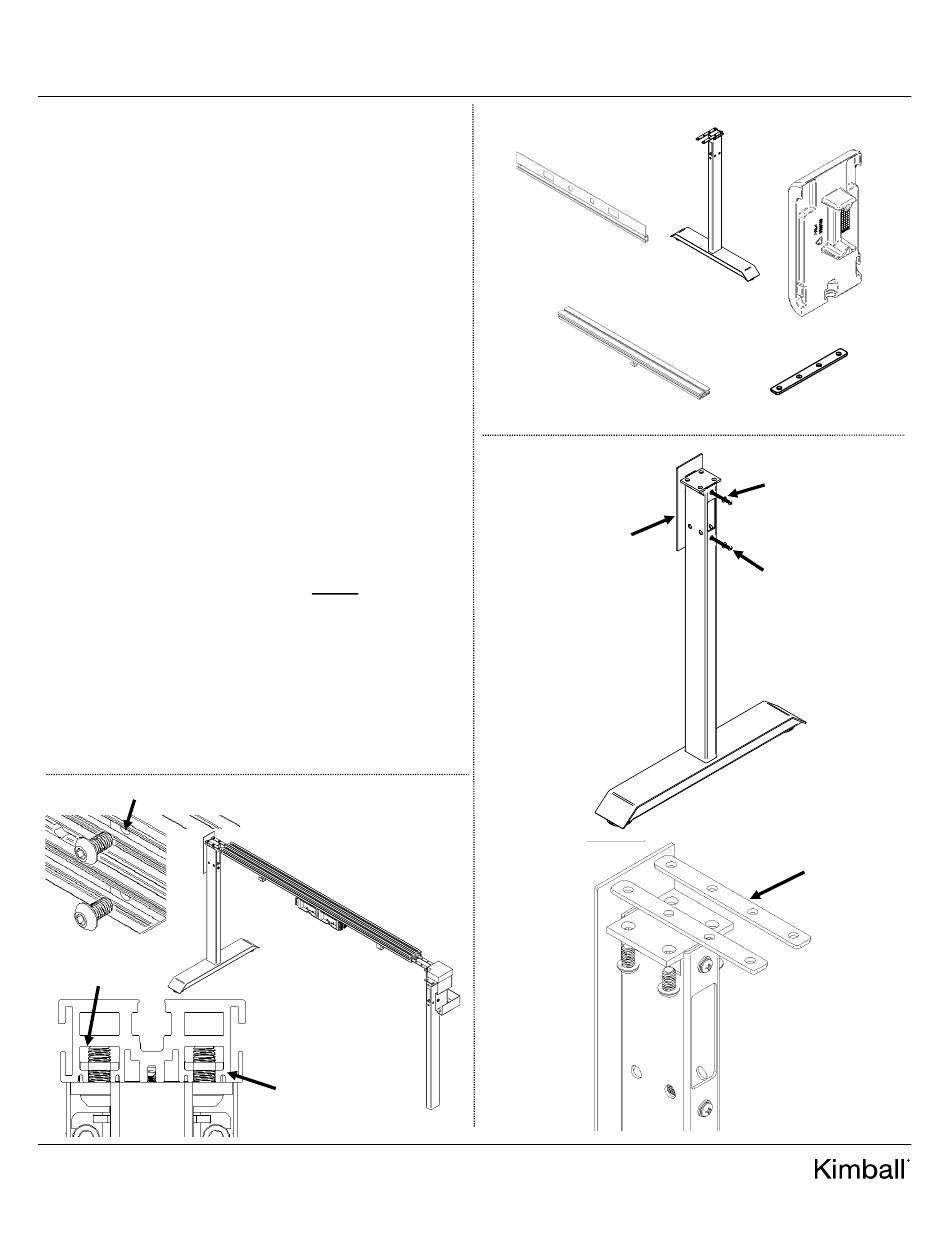

1. Using a knife open boxes removing all components/
hardware carefully and place aside. See components in Fig-
ure A and hardware required.
2. Align end trim weld studs with holes on t-legs as shown in
Figure B. Attach using screwdriver ONLY w/#2 Phillips
bit and screws/flat washers. Push button head screws up
through holes of weld plate and thread into attachment plate
loosely. Note: thread loosely so attachment plate will
slide easily into extrusion t-slot, see Figure C Step 3.
3. Slide extrusion over t-leg and connector post (X,T,L,V,Y),
using attachment plates as guides. Plates will slide into t-
slots on bottom of extrusion. Tighten M8 button head
screws with M5 Allen hex key on all legs. Thread remain-
ing button head screws into attachment plates last threaded
hole, pressing against bottom of extrusion. See Figure C.
Figure C
Threaded holes
T-Slot
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent. If you have
any questions concerning these instructions, please call Kimball Customer Care.
Part 3545887, Revision -
™
Attachment
Plate
Assembly Instructions
Figure A
Data Cover
Extrusion
Assembly
Figure B
End Trim
1
End Trim
T-Leg
Attachment
Plate
Flat Washer
Pan Head Screw
Attachment
plate
