- Page 1 Fiber Optical Solution User Manual Model : HD401F8-5M 8 Channel HD-TVI/AHD/HDCVI/CVBS with RS485 Fiber Extender 20KM Smart Cabling & Transmission Corp. V1.0...
-
Page 2: Installation View
HD401F8-5M Introduction HD401F8-5M is a coaxial-to-fiber-optic media converter that can send 8 uncompressed 5MP HD-TVI/ AHD/ HDCVI/ CVBS and RS485 signals for an extra-long distance. The product is a perfect solution for a CCTV security system to send multiple camera videos to a remote DVR for recording.. - Page 3 User Manual HD401F8-5M Resolution Pixels Frame Rate 1MP (1280 x 720) 30/50 fps 1.3MP (1280 x 960) 30 fps 2MP (1920 x 1080) 25/ 30 fps 3MP (2408 x 1536) 20 fps 4MP (2560 x 1440) 15 fps 5MP (2560 x 1920) 12.5 fps...

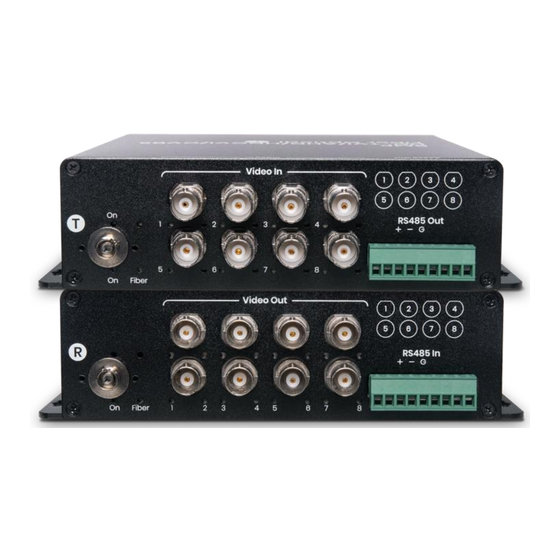

- Page 4 User Manual HD401F8-5M Panel View Interface/ Indication Description Fiber FC connector To connect a single mode fiber cable To indicate the status of power Fiber To Indicate the connecting status of fiber port To indicate the connecting status of BNC port...
- Page 5 User Manual HD401F8-5M Installation Guide The video transmission systems series are preset for use with the data protocol RS-485. Simply connect the signal, power supply and fiber optic cables between the two units. There are indicator LEDs on the units for monitoring the real-time status of power and data. The following instructions describe the typical installation procedure and the function of the LED indicators located on each unit.
- Page 6 User Manual HD401F8-5M Shut down the power supply and unplugged all equipment immediately if: water or any kind of liquid has been spilled into the product the product has been damaged by external forces the product does not operate normally as this manual indicates Please contact us for further repair if above conditions happen.
-
Page 7: Specification
User Manual HD401F8-5M Specification ITEM NO. HD401F8T-5M HD401F8R-5M Support Video Format HD-TVI/ AHD/ HDCVI/ CVBS Max. Video Resolution 5MP (2560 x 1920) @12.5fps Video Bandwidth 50Mhz Max. Distance 20Km Baud Rate 0-200Kbps, Half-duplex (From Rx to Tx) Input/ Output Wavelength...
