SC&T HUE03T-4K Manual

ITEM NO.: HUE03T-4K

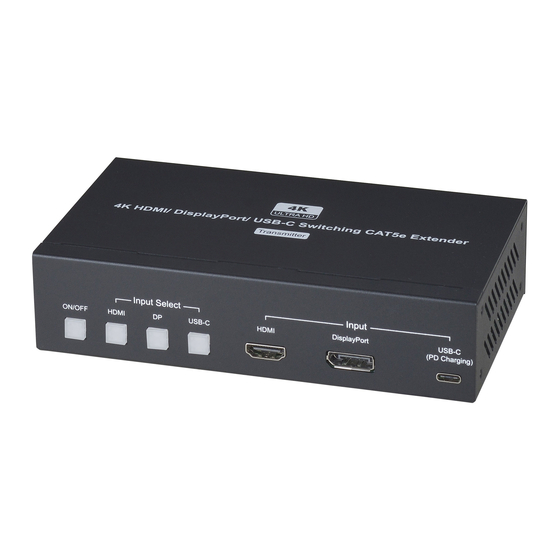

4K HDMI/ DisplayPort/ USB-C Switching CAT5e Transmitter
HUE03T-4K features the latest video interfaces, HDMI/ DisplayPort/USB-C, supporting up to 4K resolution, which
provides BYOD (Bring Your Own Device) presentations and collaborative meetings a complete panel for
smartphones, laptops & tablets.
With the compatible HDMI receiver, HE03R-4K & HE03LR-4K, the solution suits any size of meeting rooms from
small to the large scales. Video presents on up to 250 HDMI displays simultaneously without integrating with
HDMI distributors.
Additionally, HUE03T-4K could be integrated with external control keypads by I/O and RS232 signals which offers
easy and intuitive control methods.
Features:
HDMI, DisplayPort and USB-C inputs with automatic or manual switching.

Resolution up to 4K@30Hz 4:4:4, 1080p@120Hz

Extends 4K 30Hz/1080p 120Hz up to 150M by CAT5e cable

LPCM 7.1 @ 192KHz , Dolby True HD, Dolby Atmos, DTS-HD Master Audio, DTS:X audio format

supported
Comply to HDMI2.0, HDCP 1.4, HDR10

USB-C supports DP-ALT Mode, provides up to 15W/39W power to device

EDID management by one button click

Provide I/O trigger for external control keypad

Control method: Front Panel Button, Console, External control keypad

Works with HE03R-4K、HE03LR-4K HDMI receiver

Transmits video/audio signals to 250 displays simultaneously

Plug-n-Play -no drive, no software needed

HDMI CAT5e Extender
