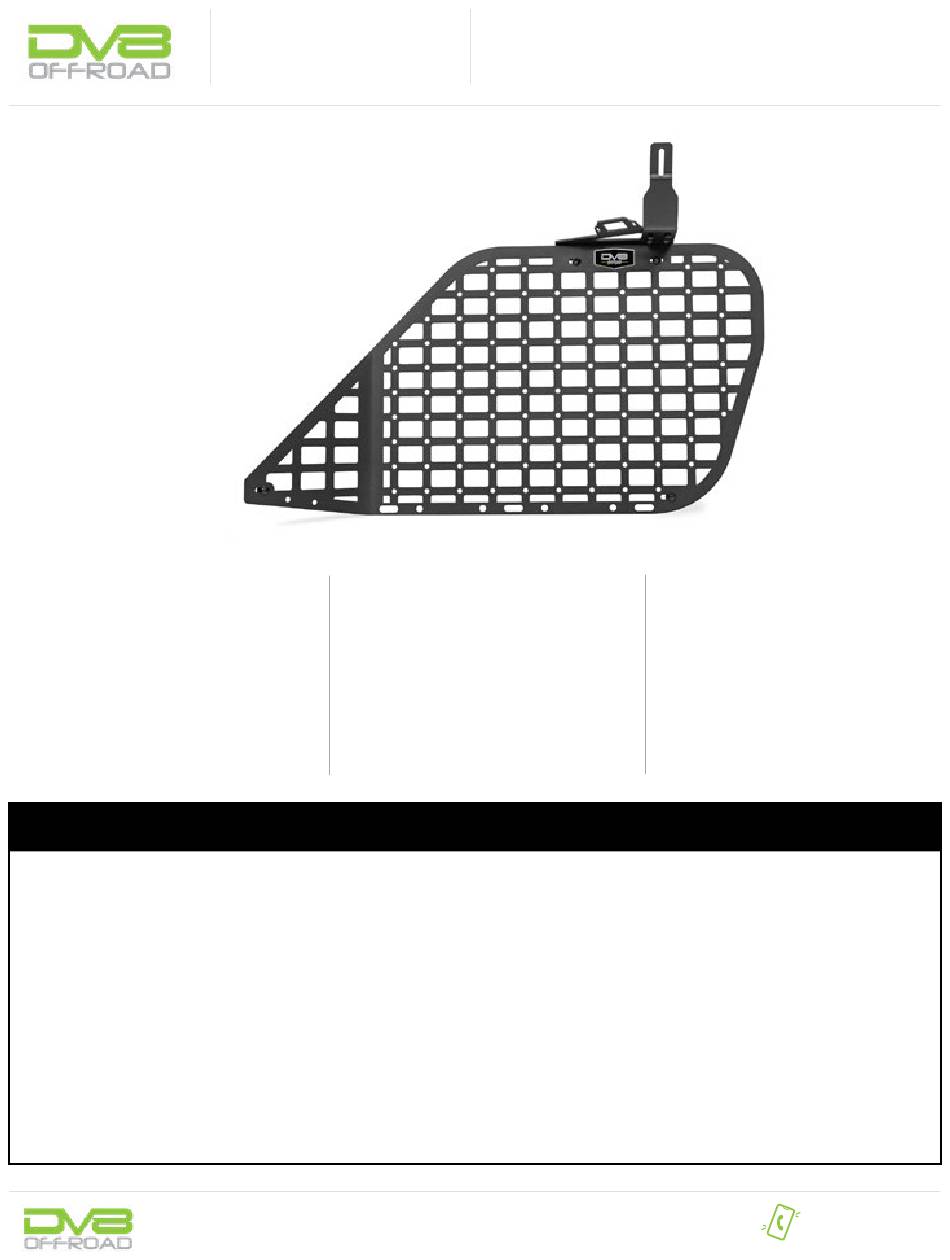

4RUNNER REAR WINDOW

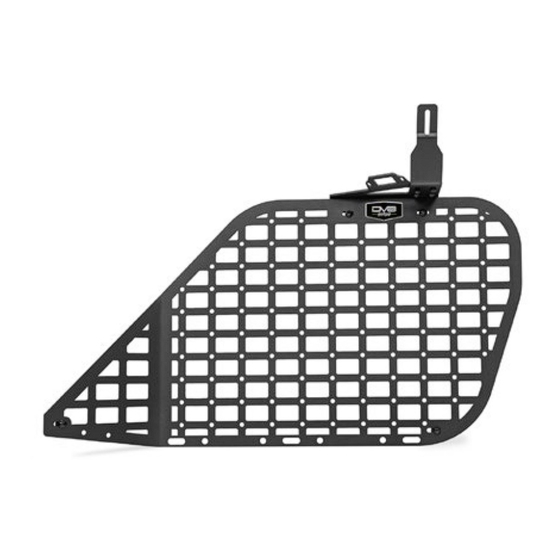

INTERIOR MOLLE PANEL
2010+ (5TH GEN) TOYOTA 4RUNNER
MPT3-01
TOOLS
REQUIRED
- 4mm Allen Bit
- 10mm Wrench
- 10mm Socket
- Trim Clip Tool
- Philips Head Screwdriver
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1.5 Hours
Time to install this should only
take about an hour and a half
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD MPT3-01
Summary of Contents for DV8 OFFROAD MPT3-01
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. HARDWARE INCLUDED (12) M6x20 Allen (4) M6X25 Allen Head (16) M6 Nylon Lock Nuts (32) M6 Flat Washers (4) Aluminum Spacers STEP 1 |...
- Page 3 INSTALLATION MANUAL STEP 2 | Install the larger “L” shaped bracket onto the upper mounting bracket using the provided M6 hardware with a 4mm allen bit and 10mm wrench. STEP 3 | Use a trim clip tool to remove the cover of the plastic hanger. Use a 10mm socket to remove the bolt and hanger.
- Page 4 INSTALLATION MANUAL STEP 4 | Use a trim clip tool to remove the plastic cover located underneath the rear window. Use a 10mm socket to remove the bolt located behind the cover. STEP 5 | Remove the plastic tie down next to the rear lift gate door by turning it to unlock, and pulling it out.
- Page 5 INSTALLATION MANUAL STEP 6 | Install the aluminum spacers and secure tightly by hand. The stepped spacer will be used in the rearmost (closest to the rear of the vehicle) factory mounting location. STEP 7 | Begin installing molle panel by securing it to the factory mounting location above the rear window using the factory bolt and a 10mm socket.
- Page 6 INSTALLATION MANUAL STEP 8 | Secure the molle panel to the aluminum spacers using the provided M6 hardware and a 4mm allen bit. STEP 9 | Congrats! You are finished with the install of the 2010+ (5th Gen) Toyota 4Runner Rear Window Interior Molle Panel NEED HELP? 855-680-9595...
