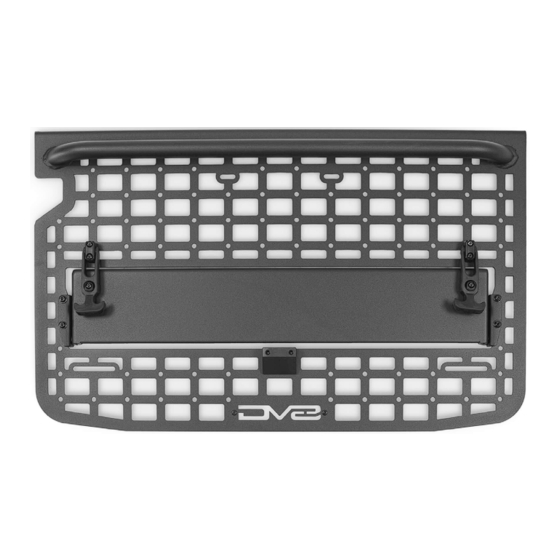

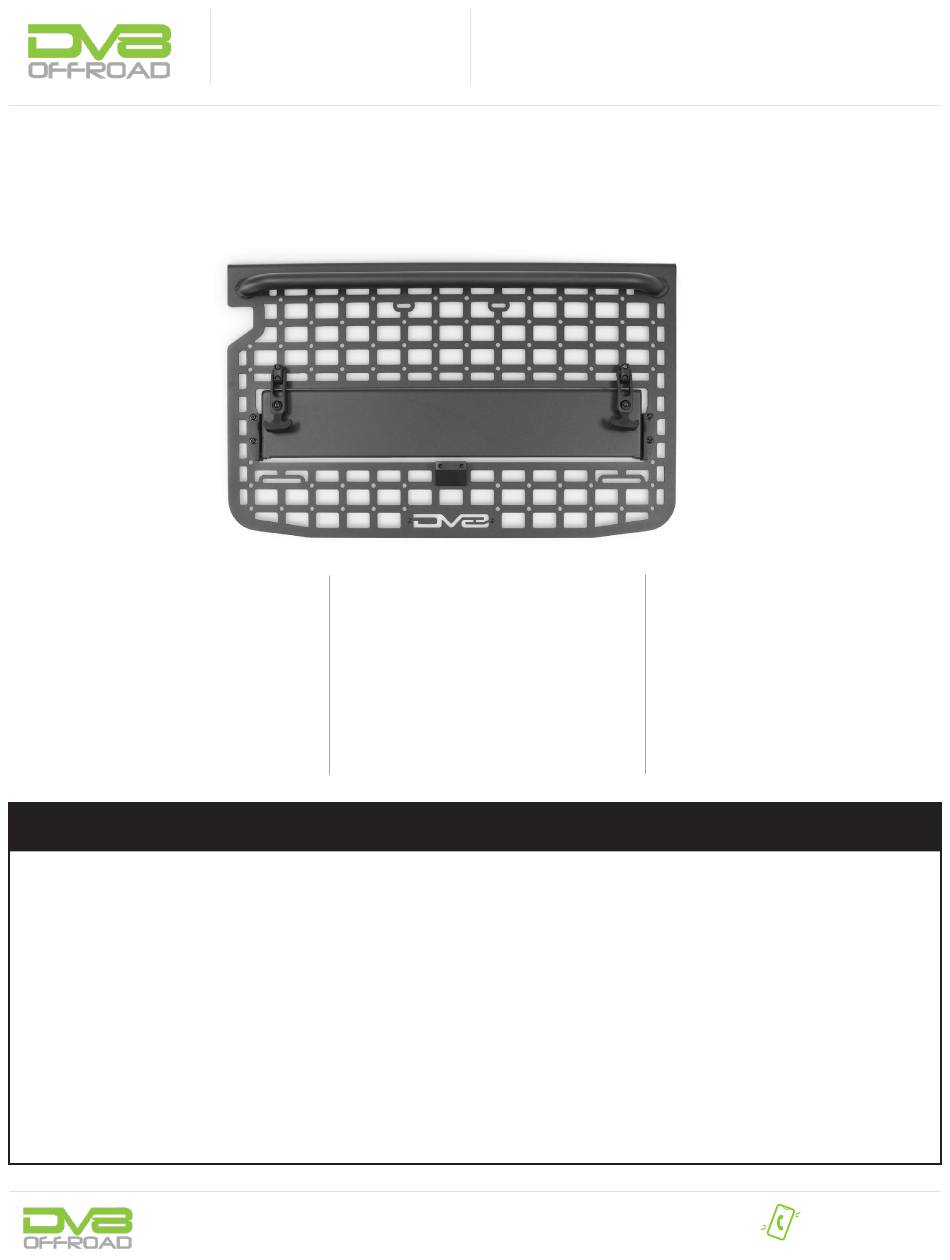

TAILGATE MOLLE PANEL
21+ FORD BRONCO
MPBR-02
TOOLS
REQUIRED
- Trim Clip Tool
- 11/16" Drill Bit
- #4 Allen Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD MPBR-02
Summary of Contents for DV8 OFFROAD MPBR-02
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (1) Nutsert Tooling Kit (2) Long Bolt Supports (6) M6x15 Allen (6) M6 Flat Washers...
- Page 3 INSTALLATION MANUAL STEP 2 | Use an 11/32” drill bit to enlarge the mounting holes so they can accept the provided M6 nutserts. STEP 3 | Install the provided M6 nutserts using a nutsert tool, or the provided nutsert tooling kit. For steps on how to use the nutsert tooling kit, scroll to the last page.
- Page 4 INSTALLATION MANUAL STEP 4 | Install the longer bolt supports into the nutserts and tighten using a 13mm socket or wrench. STEP 5 | Loosely install the molle panel to determine where to place the bottom four nutserts and bolt supports. Then install the provided M6 nutserts and bolt supports in the necessary locations.
- Page 5 INSTALLATION MANUAL STEP 6 | Secure the molle panel to the bolt supports using the provided M6 hardware with a #4 allen head. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 7 | Congrats! You are finished with the install of the 21+ Bronco Tailgate Molle Panel. NEED HELP? 855-680-9595...
- Page 7 INSTALLATION MANUAL STEP 8 | To use the nutsert tool, slider the M6 washer and spacer onto the provided M6x50 bolt. Then install a nutsert onto the exposed threads by hand. STEP 9 | Slide the nutsert tool with the nutsert into the mounting hole. Ensure the flange of the nutsert is flat against the vehicle prior to tightening.
