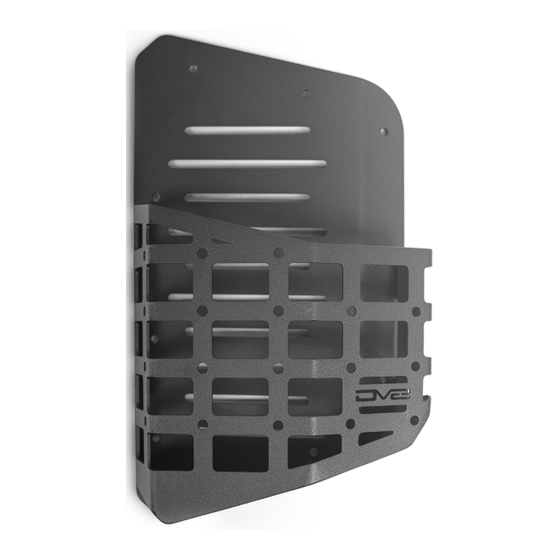

GRAB N' GO MOLLE POCKET
21+ FORD BRONCO
MPBR-03
TOOLS
REQUIRED
- Trim Clip Tool
- #4 Allen Bit
- 17/64" Drill Bit
- Sharpie/Marker
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice
- 1 (you)
Little skill level required, you can
easily install it by yourself.
Read and understand all
PRODUCT
INSTALLATION
TIME
- .5 Hour
Time to install this should only
take about half an hour.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DV8 OFFROAD MPBR-03
Summary of Contents for DV8 OFFROAD MPBR-03
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (8) M6x20 Allen (8) M6 Flat Washers (8) M8 Serrated Nuts STEP 1 |...
- Page 3 INSTALLATION MANUAL STEP 2 | Looking at the interior of the tailgate, there are three push style clips located along the left edge of the trim panel. NEED HELP? 855-680-9595...
- Page 4 INSTALLATION MANUAL STEP 3 | There is one latch clip which slips behind the metal lip on the right side of the top edge. Pictured on the right is a broken latch clip and unbroken latch clip for reference.. A broken latch clip like this will occur when you release the three push clips along the left side of the trim and remove the panel incorrectly.
- Page 5 INSTALLATION MANUAL STEP 4 | There are two hinge like clips located along the right edge of the trim panel towards the middle and bottom. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 5 | To remove the panel correctly, without breaking and clips, use a trim clip tool carefully remove the push clips located along the left edge. Pictured in step 1. It may be necessary to start at the top or bottom corner in order to get the tool underneath the trim.
- Page 7 INSTALLATION MANUAL STEP 6 | Lay the pocket over the factory trim and align them. STEP 7 | Mark the mounting holes using a sharpie, and do not let the pocket and panel shift. STEP 8 | Remove the pocket, and using a 17/64”...
- Page 8 INSTALLATION MANUAL STEP 9 | Using the provided M6 hardware with a #4 allen bit, secure the pocket to the trim. STEP 10 | To re-install the trim panel, guide it gently up and to the right until they latch and hinge clips slip behind the metal edge.
- Page 9 INSTALLATION MANUAL STEP 11 | Congrats! You are finished with the install of the 21+ Bronco Grab N’ Go Molle Pocket. NEED HELP? 855-680-9595...
