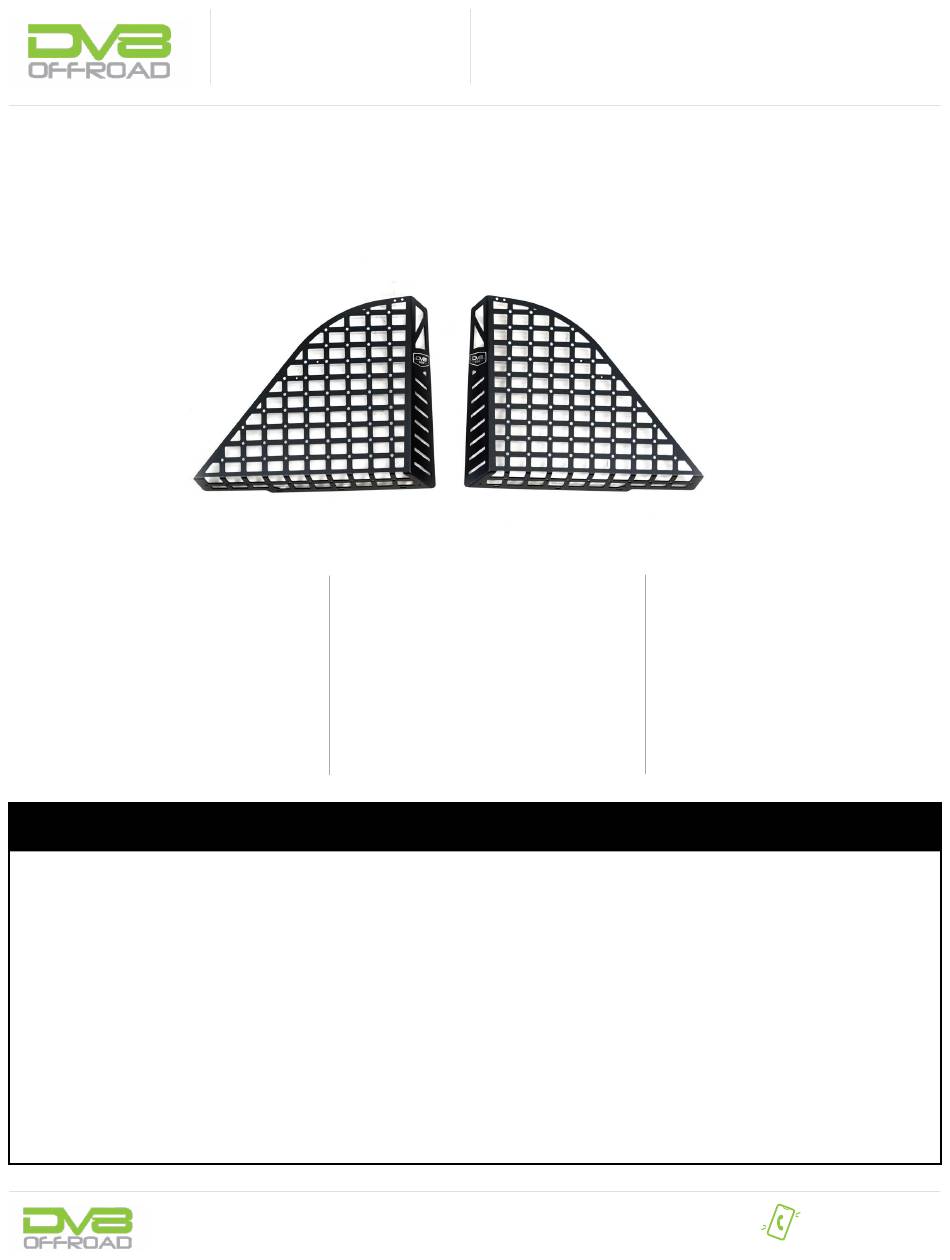

POCKETED REAR WINDOW
MOLLE PANELS
2024+ JEEP WRANGLER JL
MPJL-02
TOOLS
REQUIRED
- T-50 Torque Head Socket
- 3mm, 4mm Allen Head Sockets
- 8mm Wrench or Socket
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creek Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 1.5 Hours
Time to install this should only
take about an hour and a half.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD MPJL-02
Summary of Contents for DV8 OFFROAD MPJL-02
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (4) M5x16mm Allen Head Bolts (10) M6 Split Washers (4) M5 Lock Nuts...
- Page 3 INSTALLATION MANUAL STEP 3 | Use a T50 Torx tool to remove (2) of the factory hardtop mounting bolts as shown. 855-680-9595 NEED HELP?
- Page 4 INSTALLATION MANUAL STEP 4 | Place the provided mounting bracket over the factory hardtop bolt holes previously removed. Use the factory Torx Head bolts to loosely secure the mounting bracket in place. (If the hardtop is often removed, this mounting bracket can also be sandwiched between the vehicles body and hardtop to make hardtop installation &...
- Page 5 INSTALLATION MANUAL STEP 6 | Use a T50 Torx bit and an breaker bar/ratchet to break loose the seat belt bolt Note: This bolt has a decent amount of thread locker from the factory so be sure to take your time to prevent stripping the bolt head.
- Page 6 INSTALLATION MANUAL STEP 7 | Place the provided mounting bracket behind the seat belt and use the factory seat belt bolt to loosely secure the mounting bracket and seat belt in place. Note the direction of the bracket in this image.
- Page 7 INSTALLATION MANUAL STEP 9 | Align the seat belt mounting bracket with the threaded holes in the Molle panel. Use the provided M6 hardware to loosely secure the Molle panel. Use (1) M6 flat washer per M6 Allen head bolt. Use (1) M6 split washer per M6 Allen head bolt.
- Page 8 INSTALLATION MANUAL STEP 12 | Using a T50 torx bit and a torque wrench, torque the seat belt bolt to factory specs. (24 Ft Lbs) STEP 13 | Double check that all hardtop and Molle Panel hardware is secure. Repeat steps 1-13 on the driver side. Congratulations, installation of the DV8 Pocketed Molle Panels is now complete.
